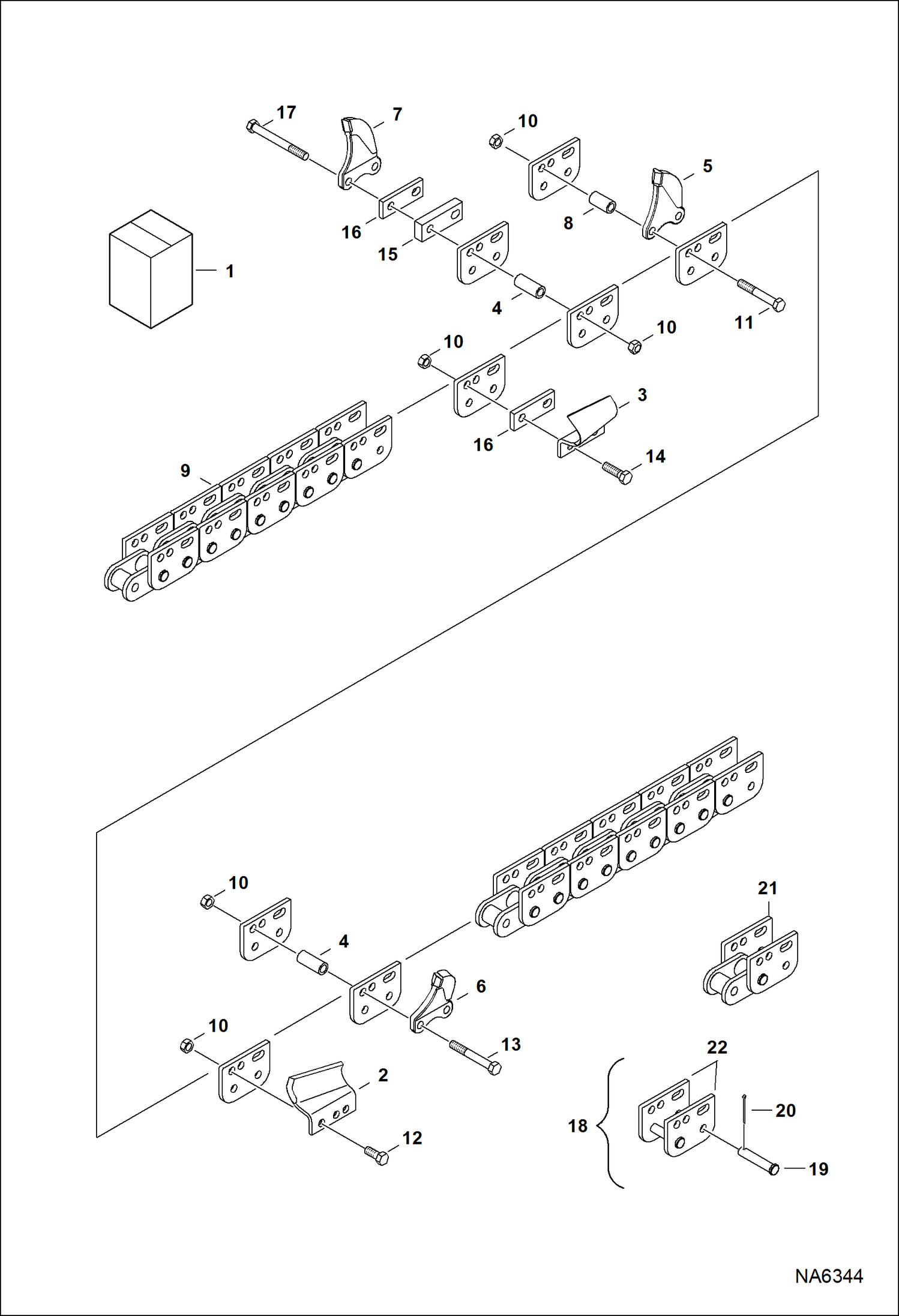

Запчасти Bobcat TRENCHERS TRENCHER (Chain&Tooth Assy)(3 Depth - 6 Wide Cup/Shark Teeth Double Std Pattern) (LT113) (LT213) Loader

1

KIT SALES #7209865 - Ref. 2-17

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

6701880

BUSHING

5

7209365

TOOTH, SHARK CENTER

6

7209366

TOOTH, SHARK BENT LEFT

7

7209367

TOOTH, SHARK BENT RIGHT

8

7209368

BUSHING, SPACER

9

6959303

CHAIN 68 pitch - chain only - for 3' depth

10

85D6

NUT, 5

11

17C640

BOLT 5

12

17C614

BOLT

13

17C644

BOLT

14

17C620

BOLT

15

7209450

PLATE, SPACER

16

7209494

PLATE, SPACER

17

17C656

BOLT

18

6685356

KIT, PIN & CONNECTOR W/ (2) each of Ref. 19 & 22

19

6685354

PIN & COTTER ASSY W/Ref. 20

20

6685355

PIN, COTTER

21

6685357

CONNECTOR ASSY

22

PLATE, SIDEBAR NSS
