Запчасти Bobcat TRENCHERS TRENCHER (Chain&Tooth Assy)(3 Depth- 4 Wide Cup/Carbide Teeth Double Std Pattern) (LT112) (LT113) Loader

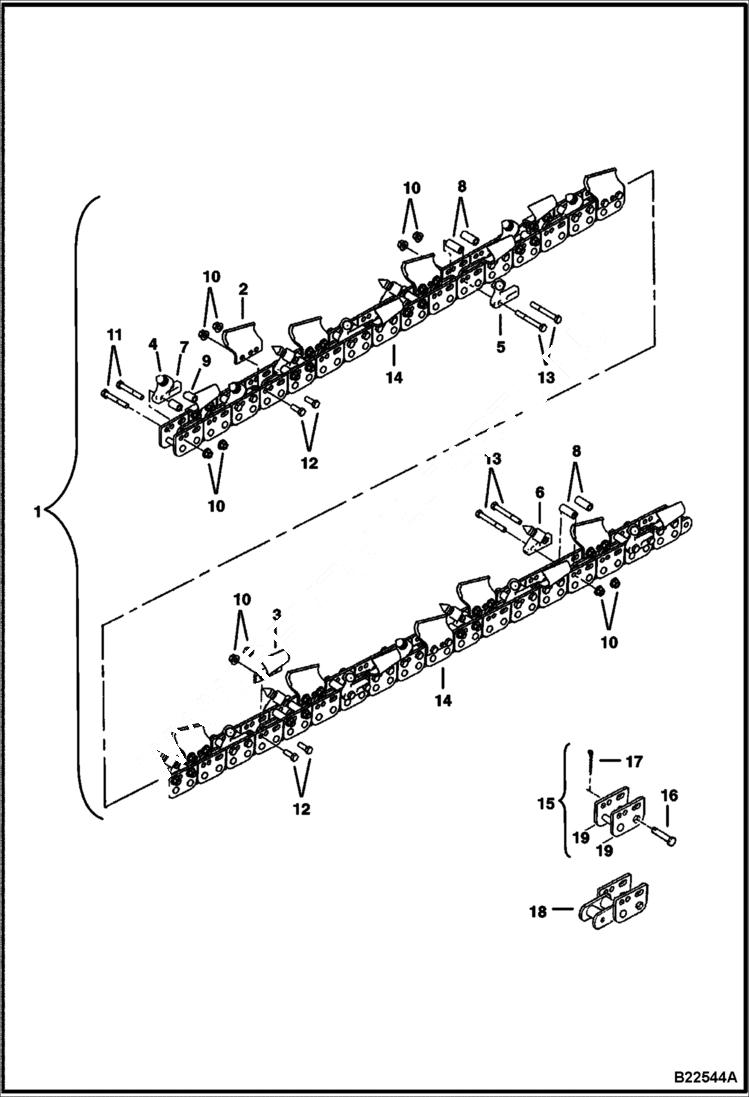

Схема запчастей Bobcat TRENCHERS - TRENCHER (Chain&Tooth Assy)(3 Depth- 4 Wide Cup/Carbide Teeth Double Std Pattern) (LT112) (LT113) Loader

Артикул

Название

Примечание

Количество

1

KIT NLA - Ref. 2-14 - Order components - Was SALES #6959319 - D

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

6655755

BIT, CARBIDE W/clip

4

6633840

CLIP

5

6655756

HOLDER LH - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

5

7193187

HOLDER, BIT LH - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

6

6655757

HOLDER RH - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

6

7193188

HOLDER, BIT RH - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

7

6655758

HOLDER, BIT inline - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

7

7193189

HOLDER, BIT inline - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

8

6701880

BUSHING

9

6701878

BUSHING

10

83D6

NUT 5

11

17C640

BOLT 5

12

17C616

BOLT 5

13

17C648

BOLT 5

14

6959303

CHAIN 68 pitch - chain only

15

6685356

KIT, PIN & CONNECTOR W/ (2) each of Ref. 16 & 19

16

6685354

PIN & COTTER ASSY W/Ref. 17

17

6685355

PIN, COTTER

18

6685357

CONNECTOR ASSY

19

PLATE, SIDEBAR NSS

Выбрано товаров: 23
