Запчасти Bobcat TRENCHERS TRENCHER (Chain&Tooth Assy)(2 Depth - 4 Wide Cup/Shark Teeth Double Std Pattern) (LT112) Loader

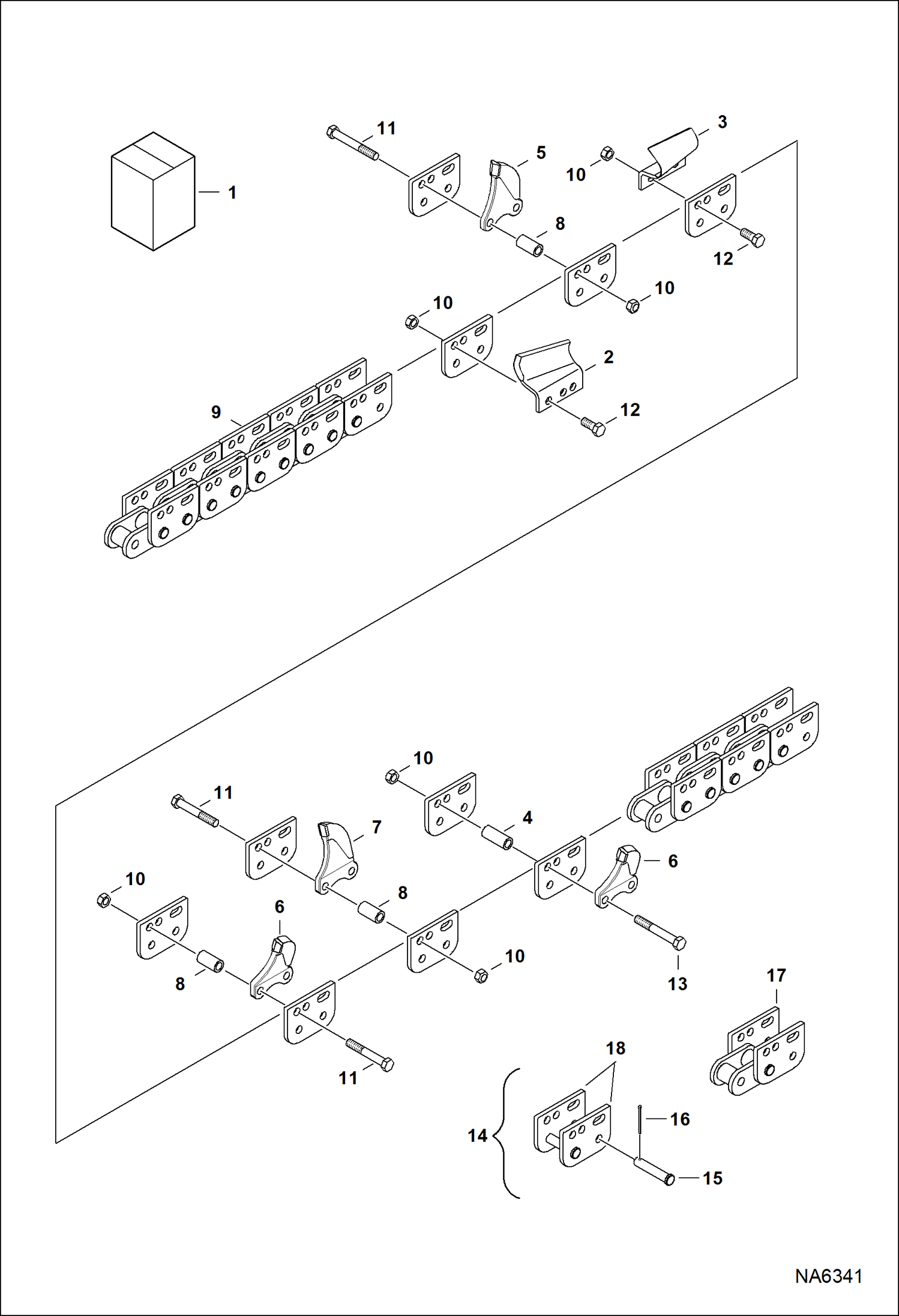

Схема запчастей Bobcat TRENCHERS - TRENCHER (Chain&Tooth Assy)(2 Depth - 4 Wide Cup/Shark Teeth Double Std Pattern) (LT112) Loader

Артикул

Название

Примечание

Количество

1

KIT SALES #7209862 - Ref. 2-13

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

6701880

BUSHING

5

7209365

TOOTH, SHARK CENTER

6

7209366

TOOTH, SHARK BENT LEFT

7

7209367

TOOTH, SHARK BENT RIGHT

8

7209368

BUSHING, SPACER

9

6959302

CHAIN 52 pitch - chain only - for 2' depth

10

85D6

NUT, 5

11

17C640

BOLT 5

12

17C614

BOLT

13

17C644

BOLT

14

6685356

KIT, PIN & CONNECTOR W/ (2) each of Ref. 15 & 18

15

6685354

PIN & COTTER ASSY W/Ref. 16

16

6685355

PIN, COTTER

17

6685357

CONNECTOR ASSY

18

PLATE, SIDEBAR NSS

Выбрано товаров: 18
