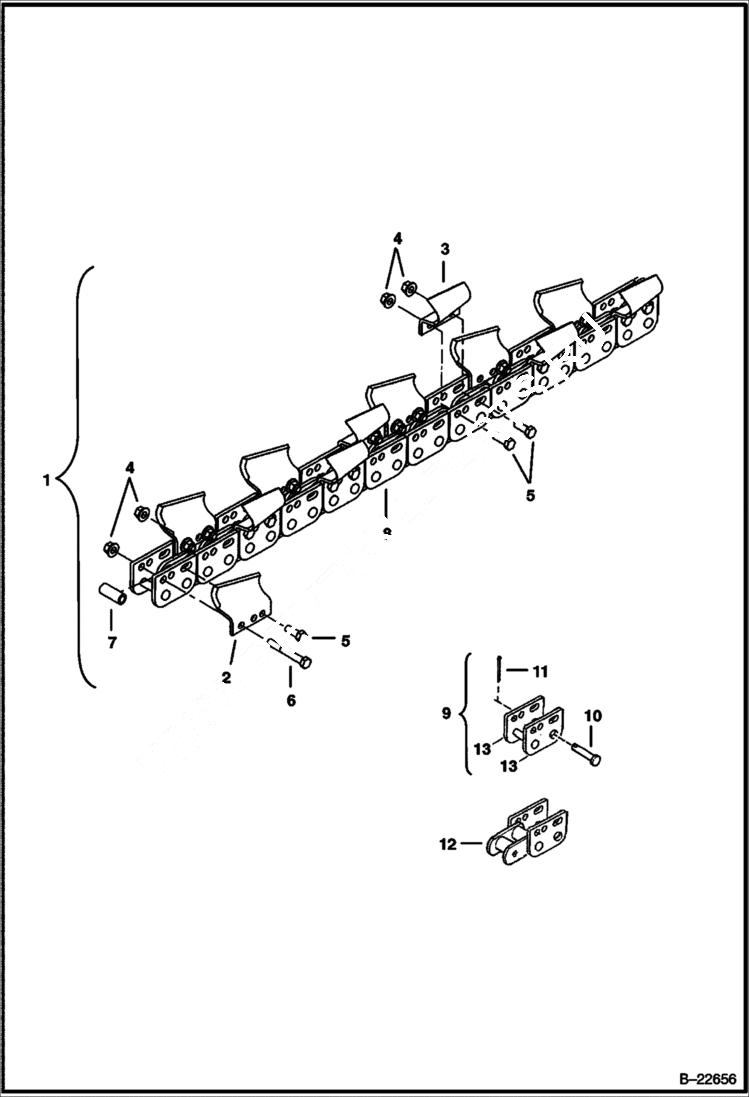

Запчасти Bobcat TRENCHERS TRENCHER (Chain & Tooth Assy) (2 Depth - 4 Wide Cup Teeth in Double Std Pattern) (LT112) (MX112) (LT113) Loader

1

KIT SALES #6959323 - Ref. 2-8

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

83D6

NUT 5

5

17C616

BOLT 5

6

17C644

BOLT

7

6701880

BUSHING

8

6959302

CHAIN 52 pitch - chain only - for 2 ft. depth

8

6959301

CHAIN 16 pitch - chain only - added for 3 ft. depth

9

6685356

KIT, PIN & CONNECTOR W/ (2) each of Ref. 10 & 13

10

6685354

PIN & COTTER ASSY W/Ref. 11

11

6685355

PIN, COTTER

12

6685357

CONNECTOR ASSY

13

PLATE, SIDEBAR NSS
