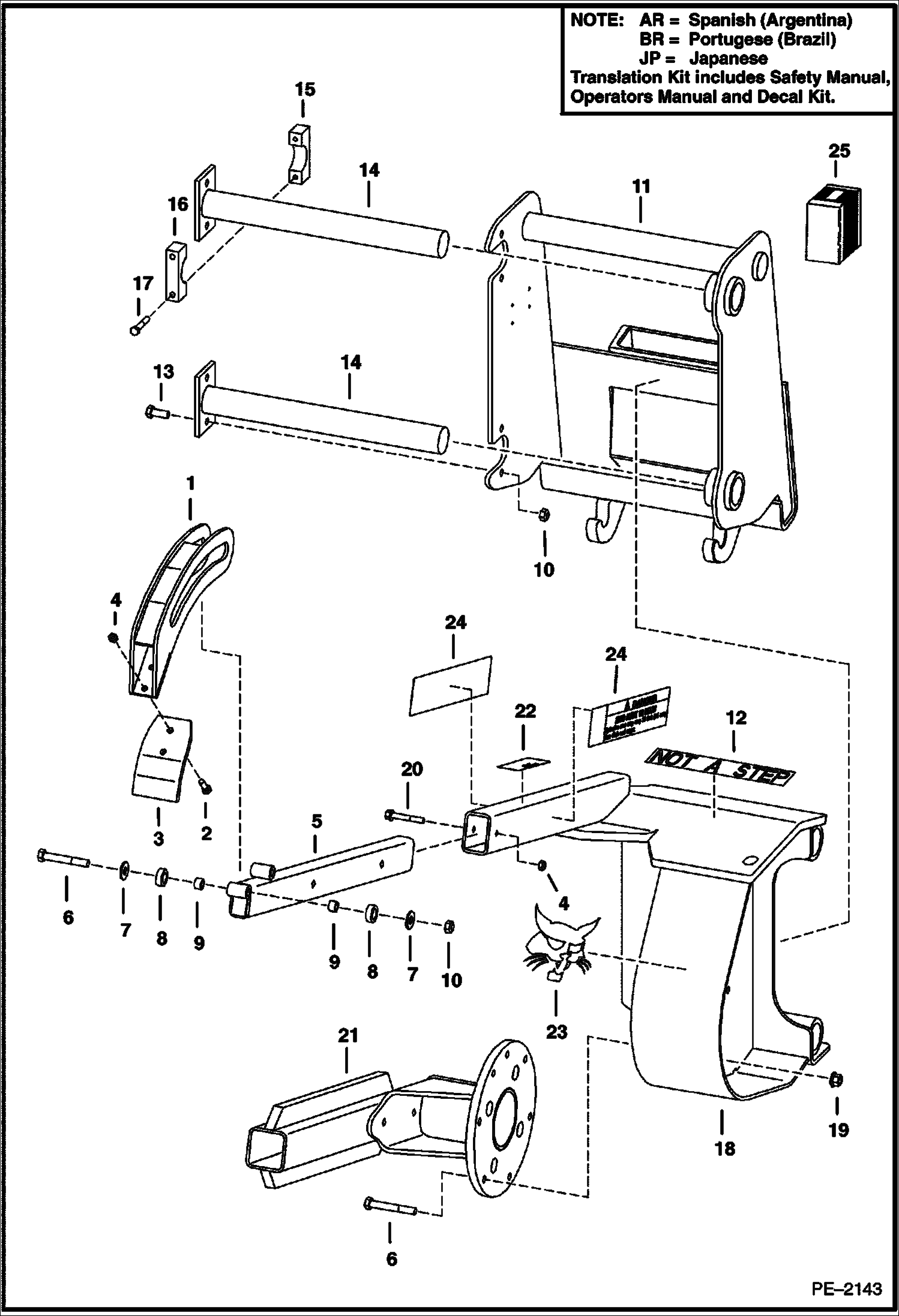

Запчасти Bobcat TRENCHERS TRENCHER (Main Frame & Boom) (MX112) Loader

1

6959203

BRACKET trench cleaner

2

17C620

BOLT

3

6959207

ADAPTER trench cleaner, 4''(101mm)

3

6806974

ADAPTER trench cleaner, 6''(152mm)

3

6806975

ADAPTER trench cleaner, 8''(203mm)

4

85D6

NUT, 5 Was 87D000006B - A

5

6959208

TUBE

6

17C856

BOLT

7

27E8

WASHER 10

8

6806981

ROLLER

9

6806983

BUSHING

10

85D8

NUT, 5 Was 87D000008B - B

11

6811600

FRAME Bob-Tach

12

6657351

DECAL, STEP See Illustration TRENCHER/ NA6253

12

7130136

DECAL, STEP See Illustration TRENCHER/ NA6253 - no-text

13

17C820

BOLT

14

6811596

ROD

15

6806949

CLAMP with threaded holes

16

6806950

CLAMP with thru holes

17

17C636

BOLT

18

6959300

HOUSING

19

83D8

NUT 5

20

35C640

BOLT 10

21

6959221

BOOM

22

6575965

DECAL, WARNING See Illustration TRENCHER/ NA6253

22

7130130

DECAL, WARNING See Illustration TRENCHER/ NA6253 - no-text

23

6700191

DECAL, LOGO BOBCAT HEAD

24

6579914

DECAL, DANGER See Illustration TRENCHER/ NA6253

24

7130131

DECAL, DANGER See Illustration TRENCHER/ NA6253 - no-text

25

7100593AR

KIT translation - SEE NOTE

25

7100593BR

KIT translation - SEE NOTE

25

6959293AR

KIT decal - SEE NOTE

25

6959293BR

KIT decal - SEE NOTE

25

6959293JP

KIT decal - SEE NOTE
