Запчасти Bobcat TRENCHERS TRENCHER (Main Frame & Boom) (LT112) (LT113) Loader

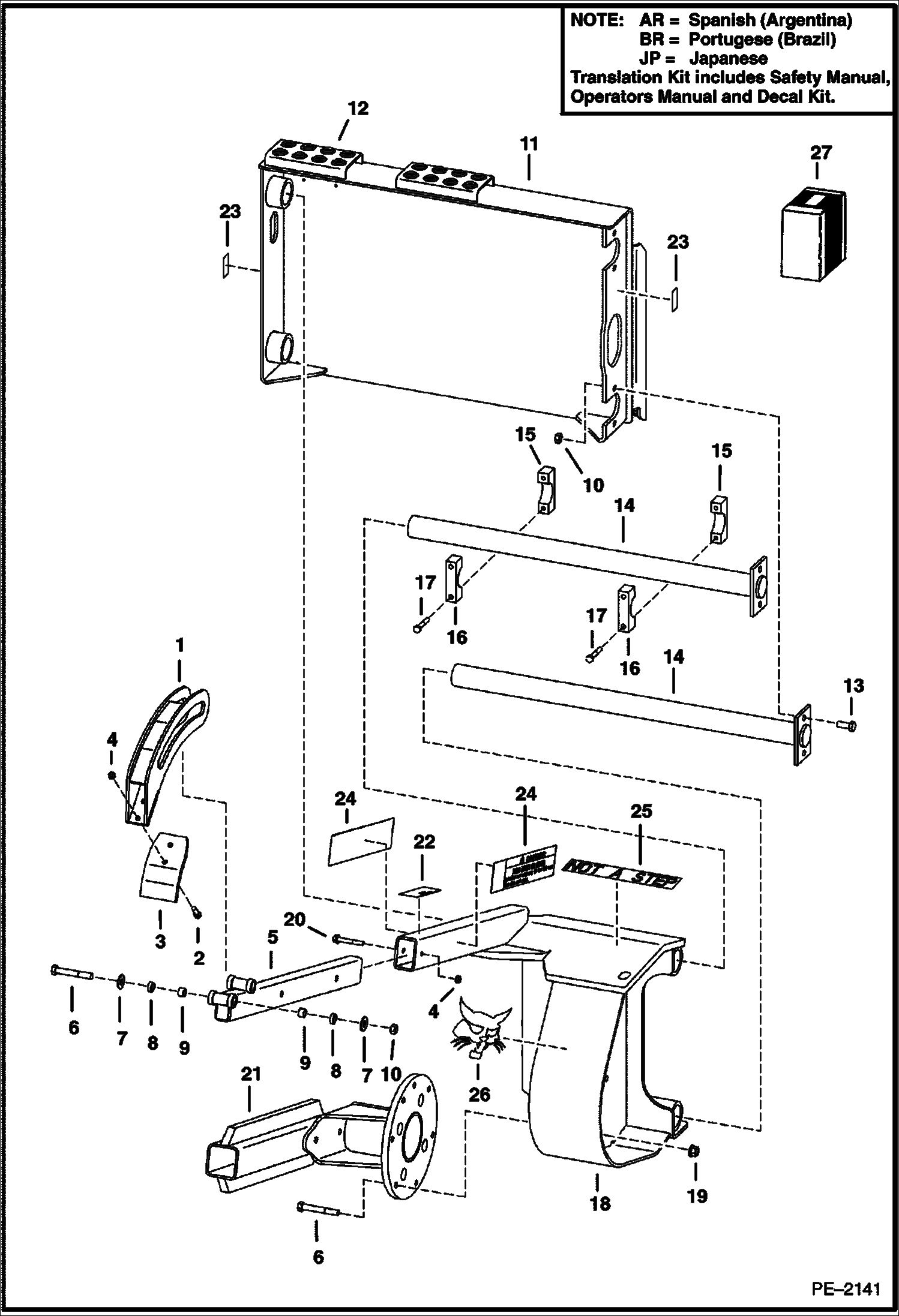

Схема запчастей Bobcat TRENCHERS - TRENCHER (Main Frame & Boom) (LT112) (LT113) Loader

Артикул

Название

Примечание

Количество

1

6959203

BRACKET trench cleaner

2

17C620

BOLT

3

6959207

ADAPTER trench cleaner, 4''(101mm)

3

6806974

ADAPTER trench cleaner, 6''(152mm)

3

6806975

ADAPTER trench cleaner, 8''(203mm)

4

85D6

NUT, 5 Was 87D000006B - A

5

6959208

TUBE

6

17C856

BOLT

7

27E8

WASHER 10

8

6806981

ROLLER

9

6806983

BUSHING

10

85D8

NUT, 5 Was 87D000008B - B

11

6959250

FRAME Bobtach

12

6905990

STEP

13

17C820

BOLT

14

6811201

ROD

15

6806949

CLAMP with threaded holes

16

6806950

CLAMP with thru holes

17

17C636

BOLT

18

6959300

HOUSING

19

83D8

NUT 5

20

35C640

BOLT 10

21

6959221

BOOM

22

6575965

DECAL, WARNING See Illustration TRENCHER/ NA6253

22

7130130

DECAL, WARNING See Illustration TRENCHER/ NA6253 - no-text

23

6815993

DECAL, LIFT tie down

24

6579914

DECAL, DANGER See Illustration TRENCHER/ NA6253

24

7130131

DECAL, DANGER See Illustration TRENCHER/ NA6253 - no-text

25

6657351

DECAL, STEP See Illustration TRENCHER/ NA6253

25

7130136

DECAL, STEP See Illustration TRENCHER/ NA6253 - no-text

26

6700191

DECAL, LOGO BOBCAT HEAD

27

7100593AR

KIT translation - SEE NOTE

27

7100593BR

KIT translation - SEE NOTE

27

6959293AR

KIT decal - SEE NOTE

27

6959293BR

KIT decal - SEE NOTE

27

6959293JP

KIT decal - SEE NOTE

Выбрано товаров: 36
