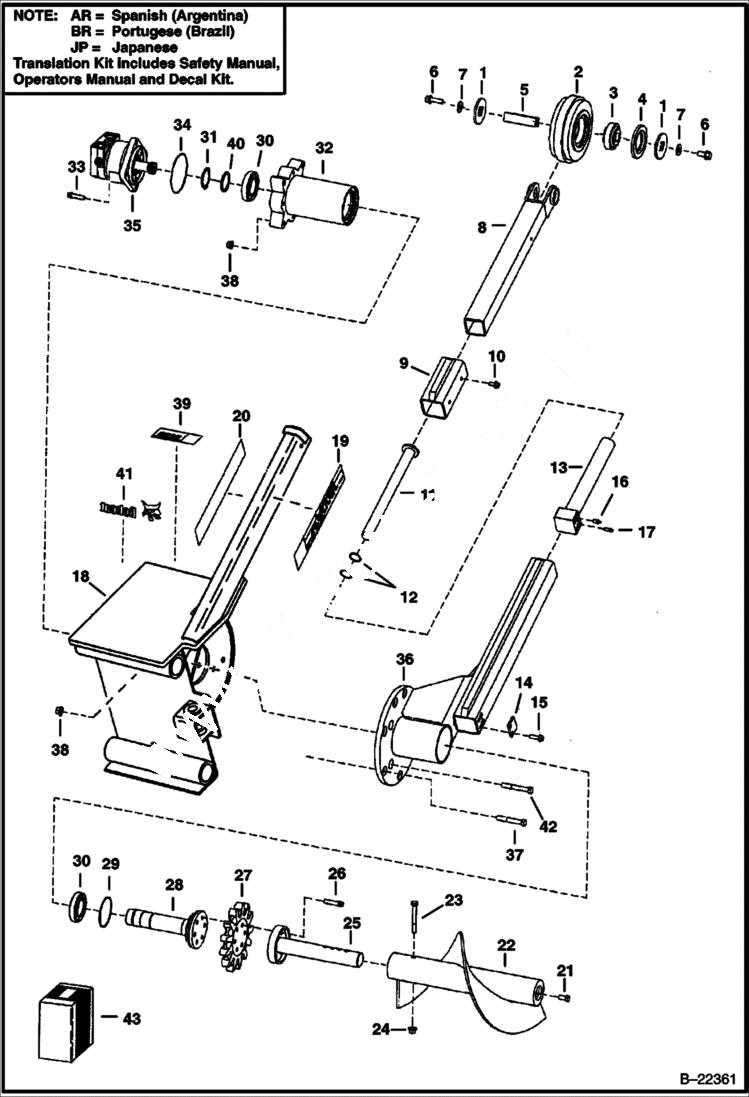

Запчасти Bobcat TRENCHERS TRENCHER (Digging Group) (LT102 2337) (MX102 2339) Loader

1

6577025

SPACER

2

6577026

ROLLER

3

6576140

BEARING, TRENCHER

4

6645545

RING retaining

5

6577011

SHAFT

6

49C816

BOLT Was 35C816 - B

7

6675521

WASHER

8

6577012

BOOM END

9

6577016

FILLER TUBE

10

84G3712

BOLT 5

11

6959165

ROD Was 6704609 - A

12

6646836

SEAL

13

6704612

CYLINDER, GREASE grease

14

6704189

COVER

15

31C620

BOLT Was 35C620 - B

16

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

17

6645812

SCREW, BLEED

18

6704252

BOOM

19

6579914

DECAL, DANGER

20

6575965

DECAL, WARNING

21

17C816

BOLT

22

6959112

AUGER Was 6579581 - A

23

17C864

BOLT

24

85D8

NUT, 5

25

6579580

SHAFT

26

29G628

BOLT Was 73G628 - B

27

6705174

SPROCKET, TRENCHER

28

6579576

SHAFT, HEAD

29

6662063

SEAL

30

6651227

BEARING

31

6651529

SNAP RING

32

6805729

PIVOT

33

17C828

BOLT

34

25K20400

O RING 10

35

MOTOR See Illustration TRENCHER/ C3328C

36

6704257

COVER

37

17C852

BOLT 5

38

83D8

NUT 5

39

6701391

DECAL, EXIT

40

6805727

WASHER backup

41

6727324

DECAL, LOGO BOBCAT AND HEAD

42

17C848

BOLT

43

6811671AR

KIT translation - SEE NOTE

43

6811671BR

KIT translation - SEE NOTE

43

6810652AR

KIT decal - SEE NOTE

43

6810652AR

KIT decal - SEE NOTE

43

6810652BR

KIT decal - SEE NOTE

43

6810652JP

KIT decal - SEE NOTE
