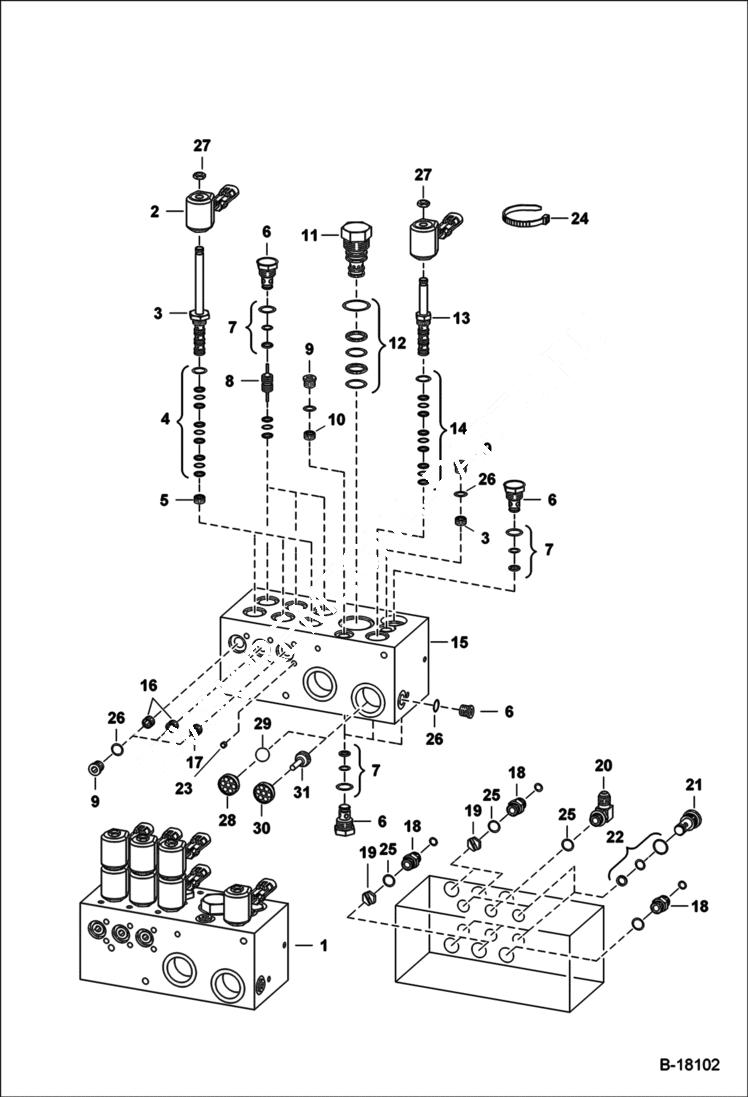

Запчасти Bobcat TRENCH COMPACTORS TRENCH COMPACTOR (Control Valve) (991500101-00167) Loader

1

6669981

VALVE, CONTROL W/Ref. 2 - 26

2

6671025

COIL

3

6673986

SPOOL, VALVE

4

6672756

KIT, SEAL Was 6667180 - A

5

6673984

ORIFICE .040(1.016mm)

6

6669728

VALVE, CHECK Was 6673991 - A

7

6672515

KIT, SEAL Was 6664033 - A

8

6673990

PISTON, VALVE pilot

9

6665719

PLUG W/Ref. 26

10

6669615

ORIFICE .020(.508mm)

11

6673994

ELEMENT logic

12

6692736

KIT, SEAL Was 6673997 - B,D

13

6673993

SPOOL

14

6673996

SEAL KIT

15

6674160

BLOCK

16

6673989

ORIFICE .047 (1.194mm)

17

6673977

ORIFICE

18

6673985

ADAPTER

19

6673988

DISK flow control - .020 (.508mm)

20

6673987

ELBOW

21

6673992

VALVE, CHECK

22

6673995

KIT, SEAL

23

PLUG NLA - Was 6673833 - A

24

6673978

CABLE TIE orange

24

6673979

CABLE TIE white

24

6673980

CABLE TIE yellow

24

6673981

CABLE TIE blue

24

6673982

CABLE TIE green

24

6673983

CABLE TIE brown

25

79K6

O RING 10

26

O-RING NSS - Order Ref. 9 - Was 95K4 - B,D

27

6671628

NUT

28

RETAINER NLA - Use W/ 6673831 ball - Order Ref. 30 & 31 - Was 6673832 - B

29

BALL NLA - .75'' dia. - Order Ref. 30 & 31 - Was 6673831 - B

30

6686519

RETAINER Use W/ 6686520 poppet

31

6686520

POPPET
