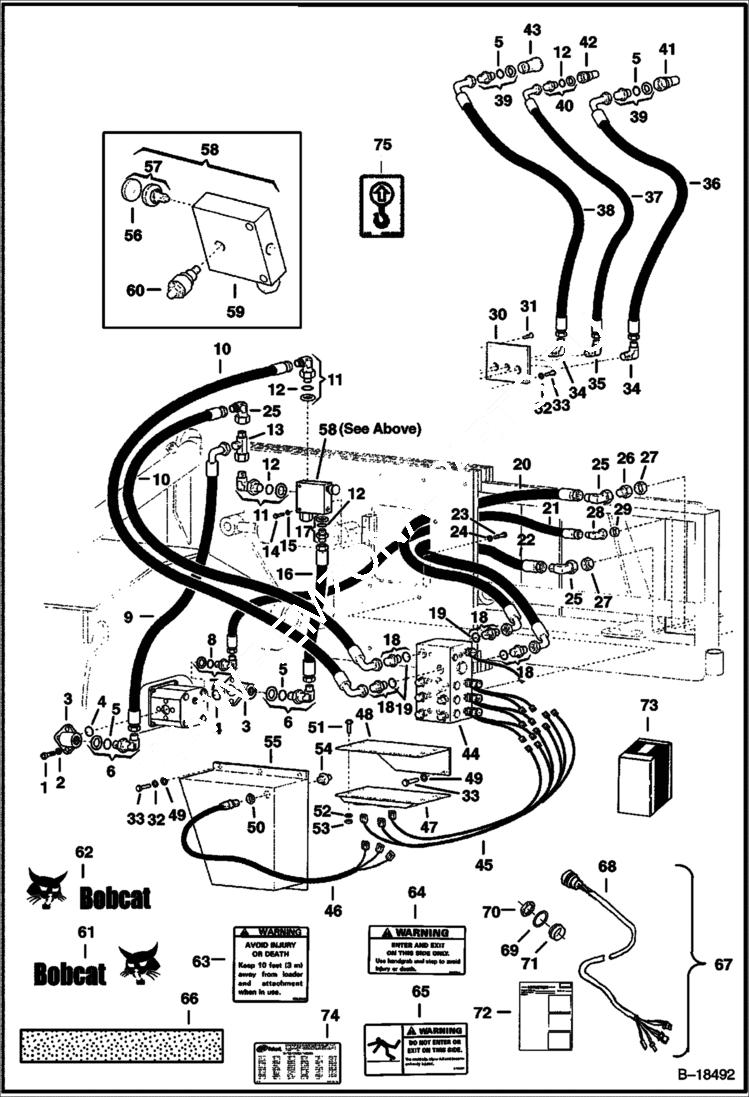

Запчасти Bobcat TRENCH COMPACTORS TRENCH COMPACTOR (Hydraulic System) (991500101 & Above) Loader

1

6677312

BOLT

2

6676755

WASHER

3

6677309

FLANGE

4

6677310

O-RING

5

6676878

O-RING

6

6677732

ELBOW

7

6677733

ELBOW

8

6677313

O-RING

9

6677734

HOSE

10

6677735

HOSE

11

6677736

ELBOW

12

6676896

O-RING

13

6677737

TEE

14

6677738

BOLT

15

6676779

WASHER

16

HOSE NLA - Was 6677739 - A

17

6677740

ADAPTER

18

6677741

ADAPTER

19

6676884

O-RING

20

6677742

HOSE

21

6677743

HOSE

22

6677744

HOSE

23

6676890

BOLT

24

6676889

WASHER

25

6677745

ELBOW

26

6677746

ADAPTER

27

6677747

NUT

28

6677748

ELBOW

29

6677749

NUT

30

6677750

PLATE

31

6676892

BOLT

32

6676755

WASHER

33

6677233

BOLT

34

6677751

ELBOW

35

6677752

ELBOW

36

6677753

HOSE

37

6677754

HOSE

38

6677755

HOSE

39

ADAPTER NLA - Was 6677308 - A

40

6677756

ADAPTER

41

6674688

COUPLER, FF MALE straight

42

6667805

COUPLER, FF FEMALE straight - Was 6667806 - D

43

6672960

COUPLER, FF FEMALE straight

44

6669981

VALVE, CONTROL See Illustration TRENCH COMPACTOR/ B18102

44

7011126

VALVE, CONTROL See Illustration TRENCH COMPACTOR/ NA2833

45

6727189

HARNESS ACD to valve

45

7177288

HARNESS, PLANER

46

6726837

HARNESS 7-pin

46

7194131

HARNESS, INPUT 7-PIN

47

6678675

CONTROLLER, ACD Was 6676514 - A

47

6697951

CONTROLLER, ACD

48

6677757

MOUNT

49

6677758

WASHER

50

6678513

NUT Was 6677759 - A

51

1CM1025

BOLT Was 6677238 - A

52

6676786

WASHER

53

53DM10

NUT Was 6677242 - A

54

6677760

RECEPTACLE

55

6677761

COVER

56

6677762

KNOB

57

6677763

VALVE

58

6677764

VALVE ASSY

59

6677765

BLOCK

60

6677766

VALVE

61

6727323

DECAL, LOGO BOBCAT AND HEAD

61

7109473

DECAL, LOGO BOBCAT AND HEAD

62

6727324

DECAL, LOGO BOBCAT AND HEAD

62

7109473

DECAL, LOGO BOBCAT AND HEAD

63

6583862

DECAL, WARNING See Illustration TRENCH COMPACTOR/ NA6238

63

7130132

DECAL, WARNING See Illustration TRENCH COMPACTOR/ NA6238 - no-text

64

6594488

DECAL, WARNING warning-enter/exit this side only

65

6701391

DECAL, EXIT See Illustration TRENCH COMPACTOR/ NA6238

65

7130141

DECAL, EXIT See Illustration TRENCH COMPACTOR/ NA6238 - no-text

66

6726638

SAFETY TREAD 4'' x 33.50'' (102 x 851mm)

67

6727457

KIT 14-pin harness conversion - converts 7-pin Trench Compactor to be used W/ 14-pin loader - Ref. 68-72

67

7196479

KIT, HARNESS 14-PIN 14-pin harness conversion - converts 7-pin Trench Compactor to be used W/ 14-pin loader - Ref. 68-72

68

6727405

HARNESS 14-pin conversion - Use W/ 6727457 kit

68

7194132

HARNESS, 14-PIN conversion - Use W/ 7196479 kit

69

6664037

WASHER

70

6664036

NUT

71

6673680

RECEPTACLE, TWIST-LOC

72

6901005

INSTRUCTIONS

73

6726839AR

KIT translation - SEE NOTE

73

6726839BR

KIT translation - SEE NOTE

73

6726846AR

KIT decal - SEE NOTE

73

6726846BR

KIT decal - SEE NOTE

73

6726846JP

KIT decal - SEE NOTE

74

DECAL NLA - patent - Was 6557224 - C

75

6809609

DECAL
