TRENCH COMPACTOR (Hydraulic System) (991500101 & Above)

Запчасти Bobcat TRENCH COMPACTORS TRENCH COMPACTOR (Hydraulic System) (991500101 & Above) Loader

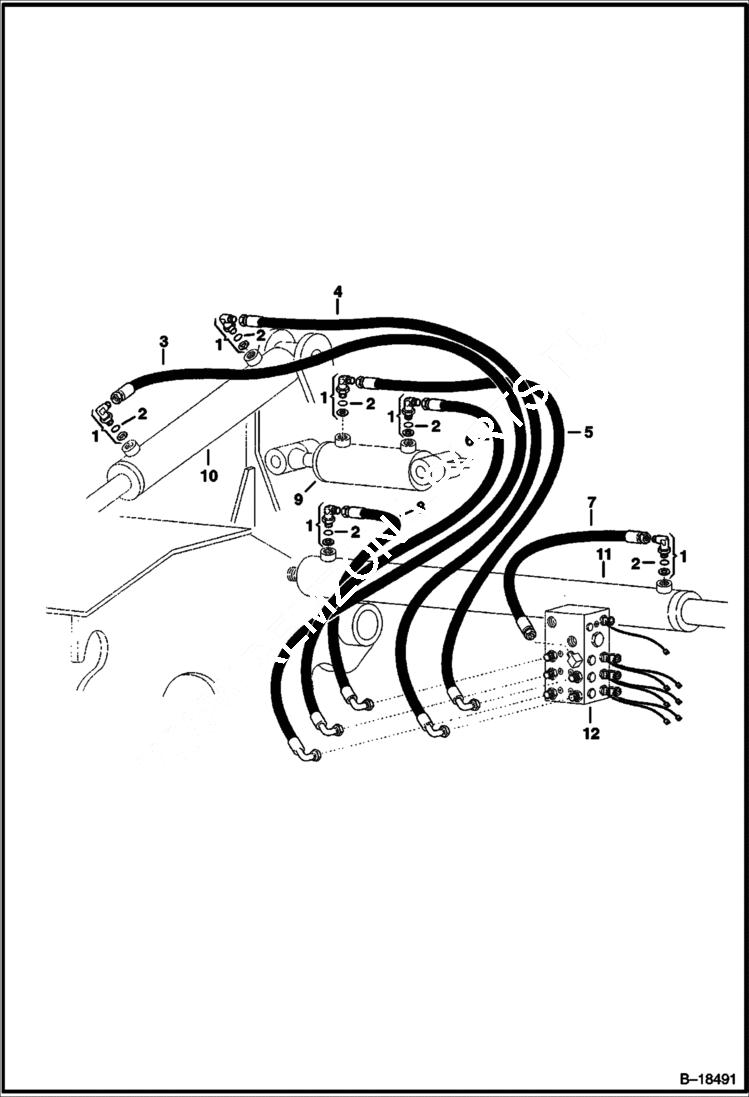

Схема запчастей Bobcat TRENCH COMPACTORS - TRENCH COMPACTOR (Hydraulic System) (991500101 & Above) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6676899

ADAPTER

2

6676880

O-RING

3

6677726

HOSE

4

6677727

HOSE

5

6677728

HOSE

6

HOSE NLA - Was 6677729 - A

7

6677730

HOSE

8

6677731

HOSE

9

CYLINDER See Illustration TRENCH COMPACTOR/ B18493 TILT

10

CYLINDER See Illustration TRENCH COMPACTOR/ B18494 DEPTH CONTROL

11

CYLINDER See Illustration TRENCH COMPACTOR/ B18494 SIDE SHIFT

12

VALVE ASSY See Illustration TRENCH COMPACTOR/ B18102
