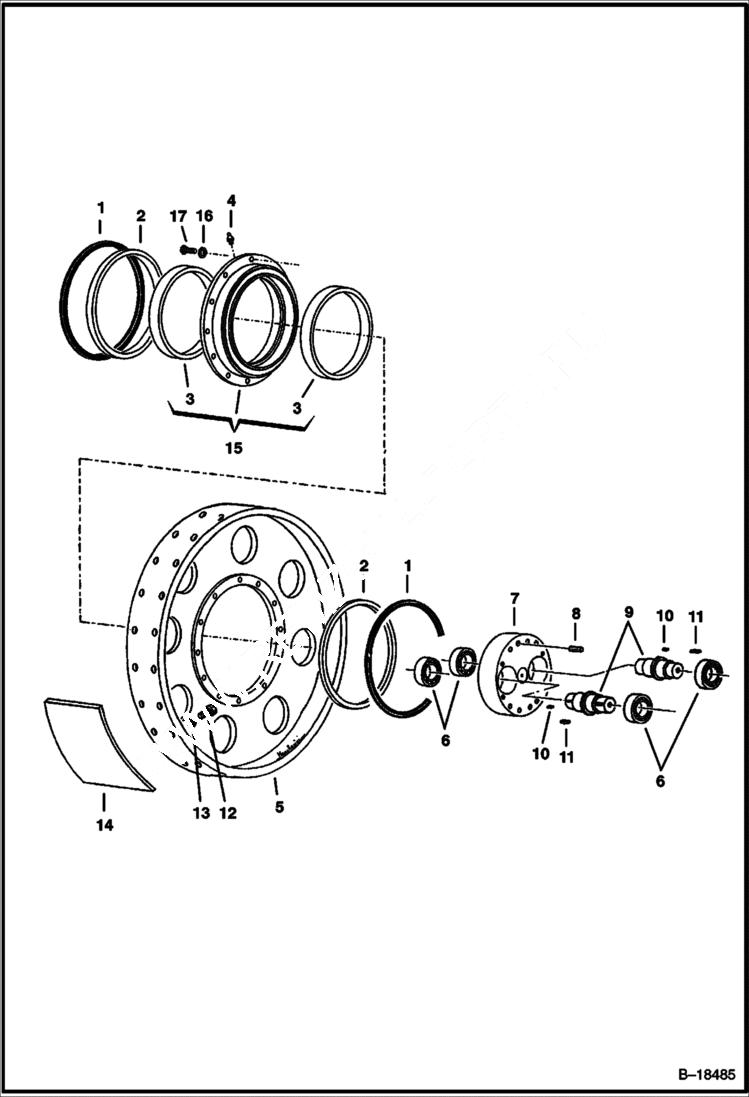

Запчасти Bobcat TRENCH COMPACTORS TRENCH COMPACTOR (Wheel Group) (991500101 & Above) Loader

1

SEAL NLA - Was 6677219 - A

2

6677220

RING

3

6677221

BUSHING

4

6677222

GREASE ZERK

5

6677707

WHEEL

6

6677224

BEARING

7

6677225

CARRIER

8

6677226

DOWEL PIN

9

6677227

SHAFT

10

6677228

KEY

11

6677229

KEY

12

6677230

BOLT

13

6676765

WASHER

14

PAD NLA - 150 mm (5.90'') - Was 6726854 - A

14

6677712

PAD 180 mm (7.10'')

14

6726855

PAD 200 mm (7.90'')

14

6726856

PAD 250 mm (9.80'')

14

6726857

PAD 300 mm (11.80'')

14

6726858

PAD 350 mm (13.80'')

14

6726859

PAD 400 mm (15.75'')

15

6677713

FLANGE

16

6677714

WASHER

17

6676764

BOLT
