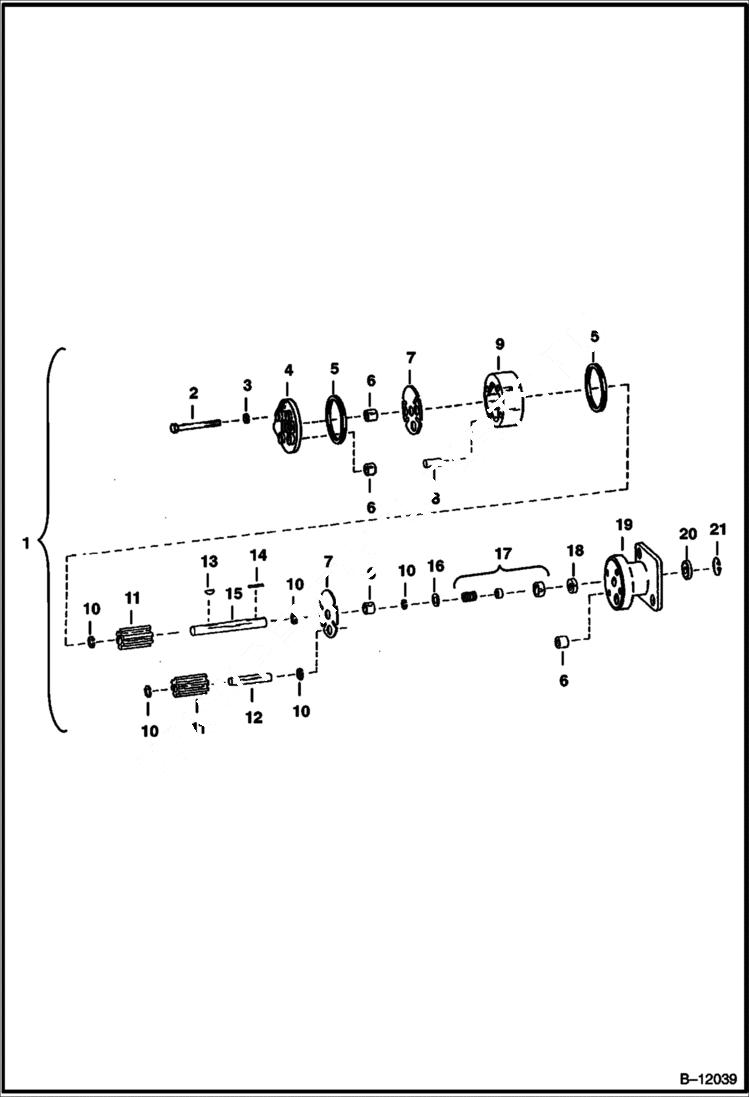

Запчасти Bobcat TRENCH COMPACTORS TRENCH COMPACTOR (Hydraulic Motor) (223300101 - 00138) Loader

1

6648663

MOTOR Use W/ 6674683 (.234'') orfice in valve

2

CAP SCREW NLA - Was 6648720 - A

3

4E7

WASHER Was 23E000007B - A

4

6648716

COVER

5

25K40328

O RING 10

6

867755

BEARING Was 6519710 - D

7

867748

WEAR PLATE

8

867753

PIN, DOWEL

9

6648714

HOUSING

10

9J13

RING

11

6648719

GEAR NLA - Was 6648719 - A

12

6648718

SHAFT

13

5J405

KEY

14

7J2104

KEY

15

6648717

SHAFT

16

867750

WASHER

17

867749

SEAL Was 6648723 - A

18

867743

SEAL

19

6648715

ADAPTER

20

6648721

BEARING

21

713133

SNAP RING
