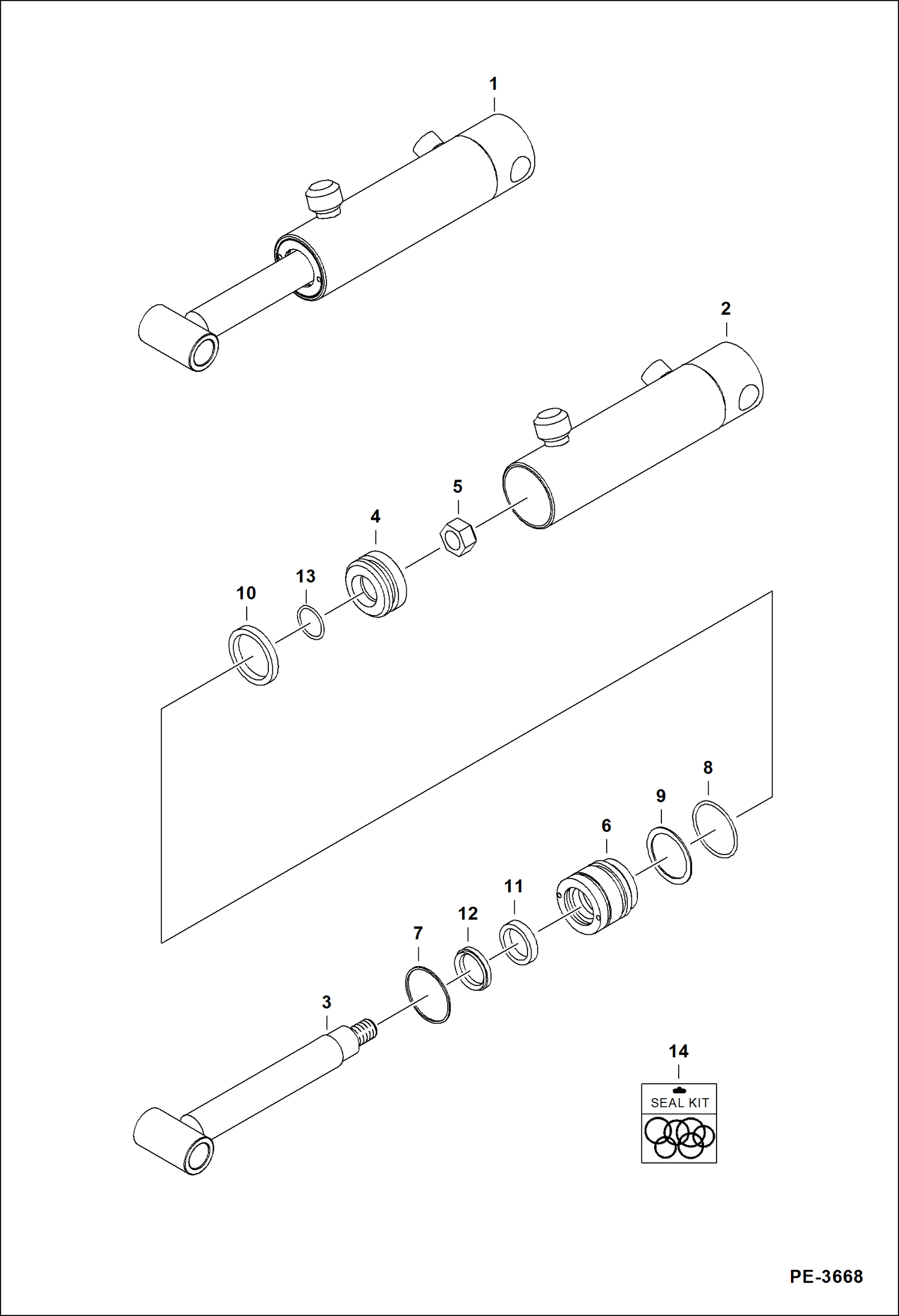

Запчасти Bobcat TREE SPADE TREE SPADE (LH Gate Cylinder) (4 Blade) Loader

1

6693502

CYLINDER, GATE gate - W/Ref. 2-13

2

7001104

TUBE, CASE CYL

3

7001105

ROD, CYL ASSY

4

7001096

PISTON, CYL GATE

5

6673617

NUT Was 6684456 - A

6

7001097

HEAD, CYL GATE

7

7001098

RING, RETAINER retainer

8

O-RING NSS - Order Ref. 14 seal kit

9

RING NSS - backup - Order Ref. 14 seal kit

10

SEAL NSS - PSP - Order Ref. 14 seal kit

11

SEAL NSS - BS - Order Ref. 14 seal kit

12

SEAL NSS - dust - Order Ref. 14 seal kit

13

O-RING NSS - Order Ref. 14 seal kit

14

7001099

KIT, SEAL W/Ref. 8-13
