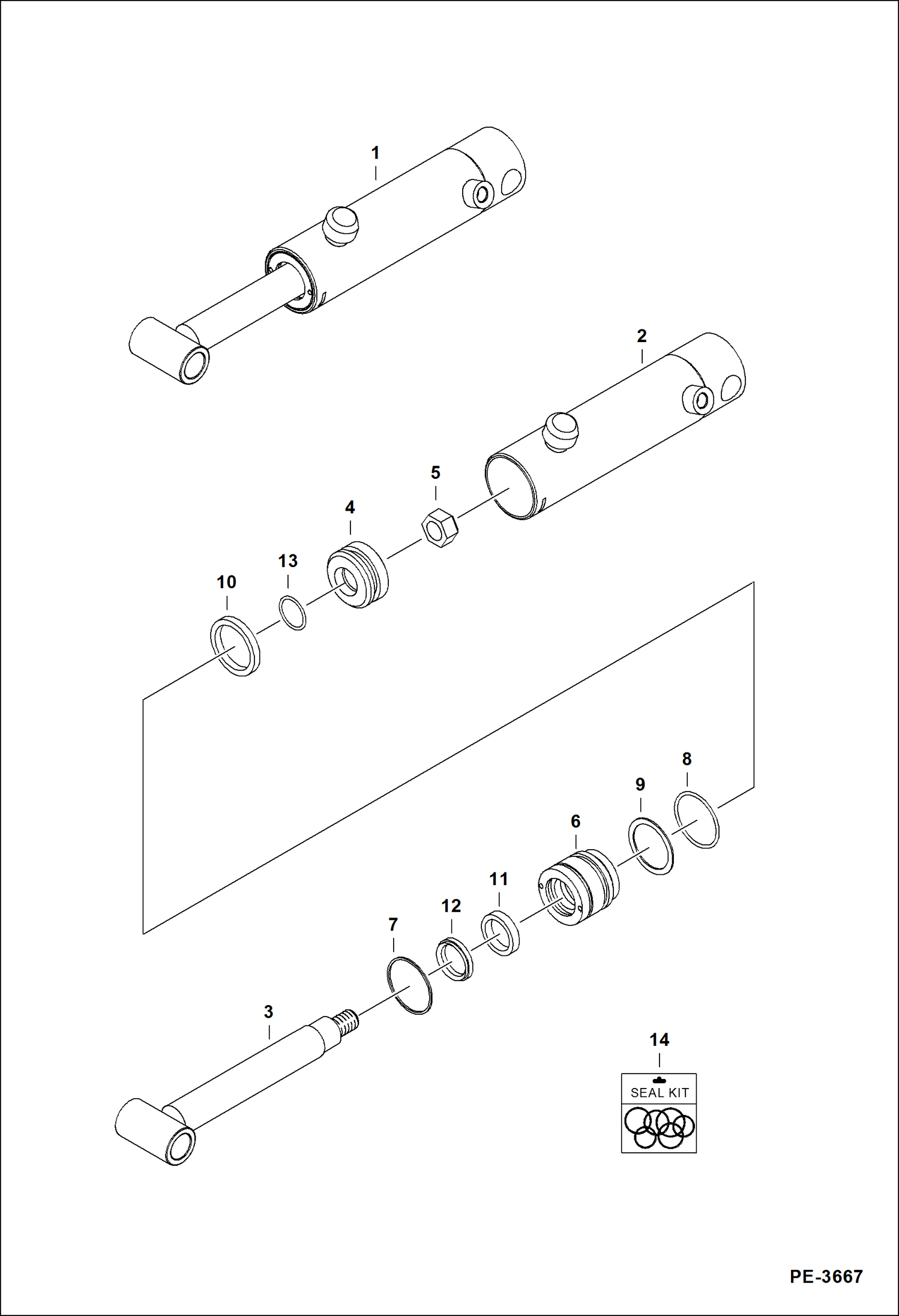

Запчасти Bobcat TREE SPADE TREE SPADE (Gate Cylinder) (All 3 Blade & 4 Blade) Loader

1

6693044

CYLINDER, GATE gate W/Ref. 2-13

2

7001094

TUBE, CASE CYL

3

7001095

ROD, CYL ASSY

4

7001096

PISTON, CYL GATE

5

6673617

NUT Was 6684456 - A

6

7001097

HEAD, CYL GATE

7

7001098

RING, RETAINER retainer

8

O-RING NSS - Order Ref. 14 Seal Kit

9

RING NSS - backup - Order Ref. 14 Seal Kit

10

SEAL NSS - PSP - Order Ref. 14 seal kit

11

SEAL NSS - BS - Order Ref. 14 seal kit

12

SEAL NSS - dust - Order Ref. 14 seal kit

13

7001099

KIT, SEAL W/Ref. 8-13
