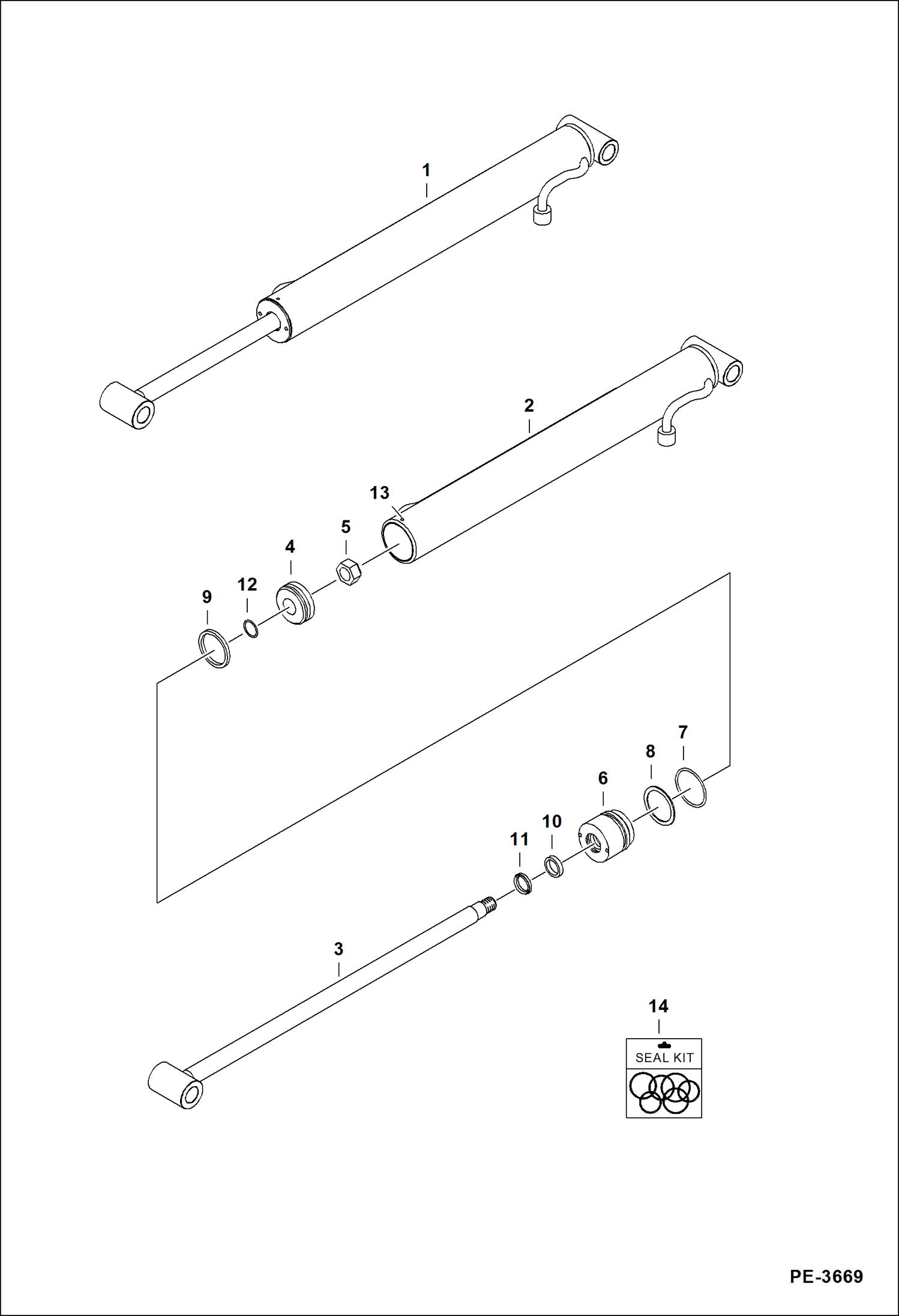

Запчасти Bobcat TREE SPADE TREE SPADE (Blade Cylinder) Loader

1

6693342

CYLINDER, BLADE 20'' stroke - TS24M, TS24T, TS28M & TS28T

1

6693043

CYLINDER, BLADE 26'' stroke - TS24C, TS28C, TS32M, TS32T, TS36M & TS36T

1

6693509

CYLINDER, BLADE 31'' stroke - TS32C, TS36C, TS44C & TS44M

2

7001090

TUBE, CASE CYL Use W/ 6693342 cylinder

2

7001077

TUBE, CASE CYL Use W/ 6693043 cylinder

2

7001092

TUBE, CASE CYL Use W/ 6693509 cylinder

3

7001091

ROD, CYL ASSY Use W/ 6693342 cylinder

3

7001078

ROD, CYL ASSY Use W/ 6693043 cylinder

3

7001093

ROD, CYL ASSY Use W/ 6693509 cylinder

4

6679450

PISTON, CYL BLADE Was 7001079 - A

5

7001080

NUT

6

7001081

HEAD, CYL GATE

7

O-RING NSS - Order Ref. 14 Seal Kit

8

RING NSS - backup - Order Ref. 14 Seal Kit

9

SEAL NSS - PSP - Order Ref. 14 seal kit

10

SEAL NSS - BS - Order Ref. 14 seal kit

11

SEAL NSS - dust - Order Ref. 14 seal kit

12

O-RING NSS - Order Ref. 14 Seal Kit

13

7001089

SET SCREW

14

7001082

KIT, SEAL W/Ref. 7-12
