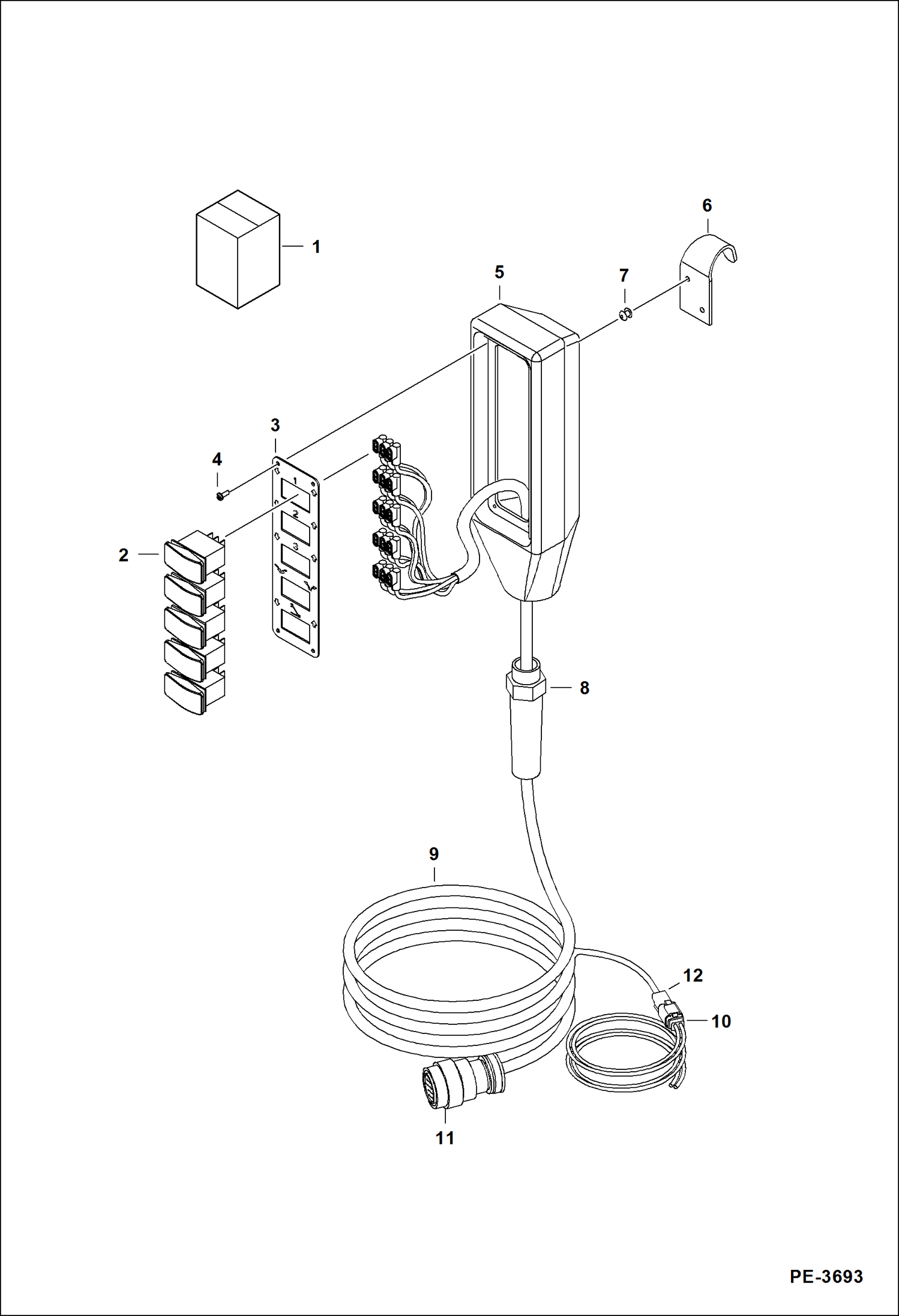

Запчасти Bobcat TREE SPADE TREE SPADE (Pendant Control) (3 Blade) Loader

1

KIT SALES #7152663- pendant control - W/Ref. 2-12

2

6678553

SWITCH rocker

3

PLATE NSS

4

85G606

BOLT

5

6730778

ENCLOSURE W/Ref. 6 & 7

6

6732570

HOOK

7

6630207

RIVET 5

8

6679640

NUT strain relief

9

7150167

HARNESS, PENDANT

10

6664185

CONNECTOR 2-pin

11

6665001

CONNECTOR, ELECTRICAL

12

6664184

CONNECTOR 2-pin
