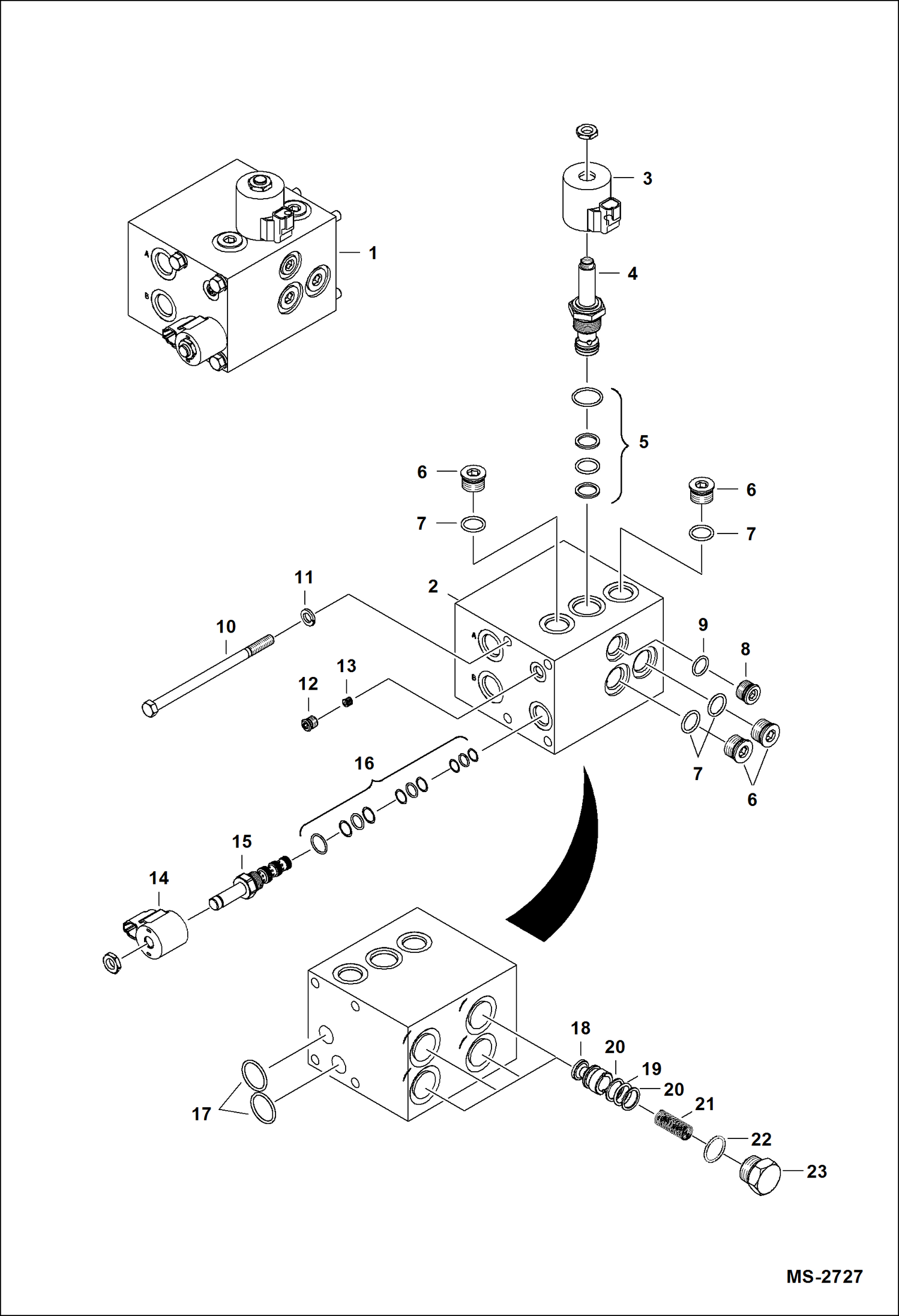

Запчасти Bobcat TREE SPADE TREE SPADE (Control Valve) (Convertible Inlet) (For Convertible Tree Spades) Loader

1

6693256

VALVE, INLET CONVERTIBLE W/Ref. 2

2

BLOCK NSS - Order Ref. 1

3

7001107

COIL, 12 VOLT

4

7001113

STEM, VALVE CONTROL

5

7001115

KIT, SEAL

6

6678563

PLUG W/Ref. 7

7

O RING 10 NSS - Order Ref. 6 - Was 79K10 - B,D

8

6674548

PLUG

9

79K8

O RING 10

10

17C6104

BOLT

11

4E6

WASHER

12

6665719

PLUG

12

O-RING NSS - Order 6665719

13

7001114

PLUG, ORIFICE

14

6691649

COIL

15

6693882

VALVE

16

6672756

KIT, SEAL

17

7001111

O-RING

18

6693885

VALVE

19

6693878

O-RING

20

6693880

RING backup

21

7001112

SPRING, COMPRESSION compression

22

79K12

O RING 10

23

6693883

PLUG
