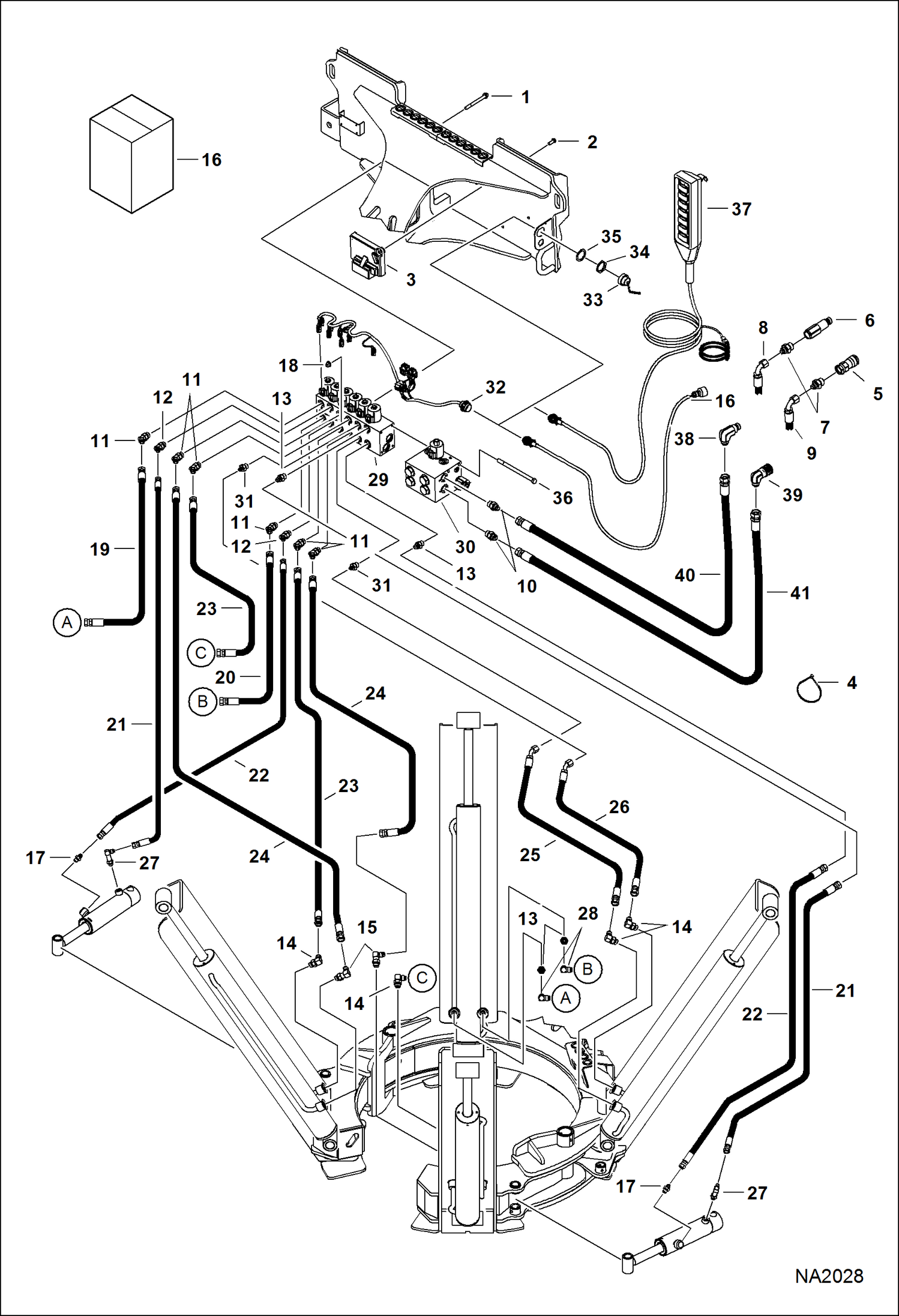

Запчасти Bobcat TREE SPADE TREE SPADE (Hydraulics) (TS44C Conv A9V9) (TS44M Conv A9SG) Loader

1

31C664

BOLT

2

25G616

SCREW

3

6697951

CONTROLLER, ACD

4

6624289

STRAP, TIE

5

6672960

COUPLER, FF FEMALE straight

6

6674688

COUPLER, FF MALE straight

7

15KB1012

FITTING, HYD CONNECTOR

8

7149386

HOSE, HYD 1778 mm (70'') long - 90 degree fitting (.875'' thread) & .875'' thread - Use straight couplers

9

7149387

HOSE, HYD 1880 mm (74'') long - 90 degree fitting (.875'' thread) & .875'' thread - Use straight couplers

10

15KB1010

FITTING, HYD CONNECTOR

11

18KB0808

FTG HYD ELBOW 45

12

18KB0608

FTG HYD ELBOW 45

13

15KB0808

FITTING, HYD CONNECTOR

14

17KB0808

FITTING, HYD ELBOW

15

7153665

ELBOW

16

KIT See Illustration TREE SPADE/ PE3695 - SALES #7152662 - ACD conversion - 7 pin

17

15KB0606

FITTING, HYD CONNECTOR

18

83D6

NUT 5

19

7144581

HOSE, HYD

20

7144582

HOSE, HYD

21

7144583

HOSE, HYD

22

7144584

HOSE, HYD

23

7144585

HOSE, HYD

24

7144586

HOSE, HYD

25

7164814

HOSE TS44C - W/ 45 degree end

25

7144581

HOSE, HYD TS44M - W/straight end

26

7164815

HOSE TS44C - W/ 45 degree end

26

7144582

HOSE, HYD TS44M - W/straight end

27

6812815

FITTING

28

11K6

UNION

29

6693518

VALVE, 4-BLADE See Illustration TREE SPADE/ MS2726

30

6693256

VALVE, INLET CONVERTIBLE See Illustration TREE SPADE/ MS2727

31

15KB0608

FITTING, HYD CONNECTOR

32

7145246

HARNESS, VALVE

33

6664035

CAP

34

6664036

NUT

35

6664037

WASHER

36

17C6104

BOLT

37

KIT See Illustration TREE SPADE/ PE3694 - SALES #7152664 - pendant control - 4 blade

38

7168432

COUPLER, FF MALE 90 degree

39

7168433

COUPLER, FF FEMALE 90 degree

40

7171824

HOSE, HYD 1651 mm (65'') long - .875'' thread & 1.063'' thread - Use 90 degree couplers

41

7171825

HOSE, HYD 1778 mm (70'') long - .875'' thread & 1.063'' thread - Use 90 degree couplers
