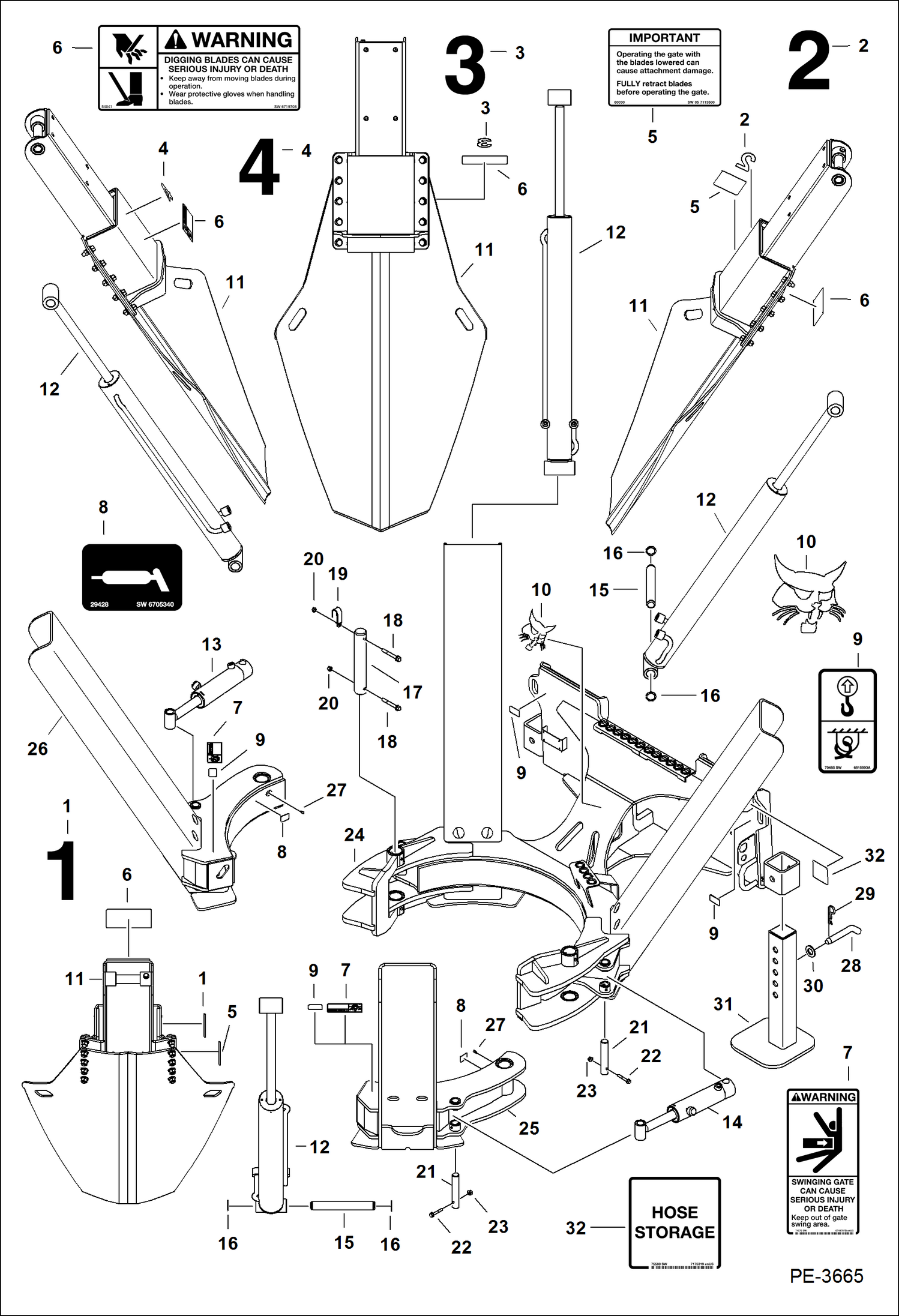

Запчасти Bobcat TREE SPADE TREE SPADE (Main Frame) (TS44 A9UT) (TS44 Conv A9SG) (TS44C A9VL) (TS44C Conv A9V9) Loader

1

6719804

DECAL #1

2

6719805

DECAL #2

3

6719806

DECAL #3

4

6719807

DECAL #4

5

7113500

DECAL, IMPORTANT See Illustration TREE SPADE/ NA6699

5

7208698

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

6

6719708

DECAL,WARNING See Illustration TREE SPADE/ NA6699

6

7208697

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

7

6719707

DECAL,WARNING See Illustration TREE SPADE/ NA6699

7

7163544

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

8

6705340

DECAL, GREASE

9

6815993

DECAL, LIFT tie down

10

6700191

DECAL, LOGO BOBCAT HEAD

11

BLADE & SLIDE ASSY See Illustration TREE SPADE/ PE3687B TS44C

11

BLADE & SLIDE ASSY See Illustration TREE SPADE/ PE3688A TS44M

12

6693509

CYLINDER, BLADE See Illustration TREE SPADE/ PE3669 blade

13

6693044

CYLINDER, GATE See Illustration TREE SPADE/ PE3667 gate - R.H.

14

6693502

CYLINDER, GATE See Illustration TREE SPADE/ PE3668 gate - L.H.

15

7110186

PIN blade cylinder

16

22J20

SNAP RING

17

7142887

PIN hinge

18

31C648

BOLT

19

31H46

CLAMP

20

85D6

NUT, 5

21

7142136

PIN gate - cylinder

22

31C532

BOLT

23

85D5

NUT 5

24

7157781

FRAME, MAIN ASSY TS44C

24

7144554

FRAME, MAIN ASSY TS44M

25

7157784

GATE L.H. - TS44C

25

7144564

GATE L.H. - TS44M

26

7157788

GATE R.H. - TS44C

26

7144565

GATE R.H. - TS44M

27

10H35

FITTING, GREASE 10

28

6725798

PIN

29

6679876

PIN

30

25E29

WSHR

31

7147424

SUPPORT, LEG leg - L.H.

31

7142885

SUPPORT, LEG leg - R.H.

32

7175319

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699

32

7196473

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699 - no-text
