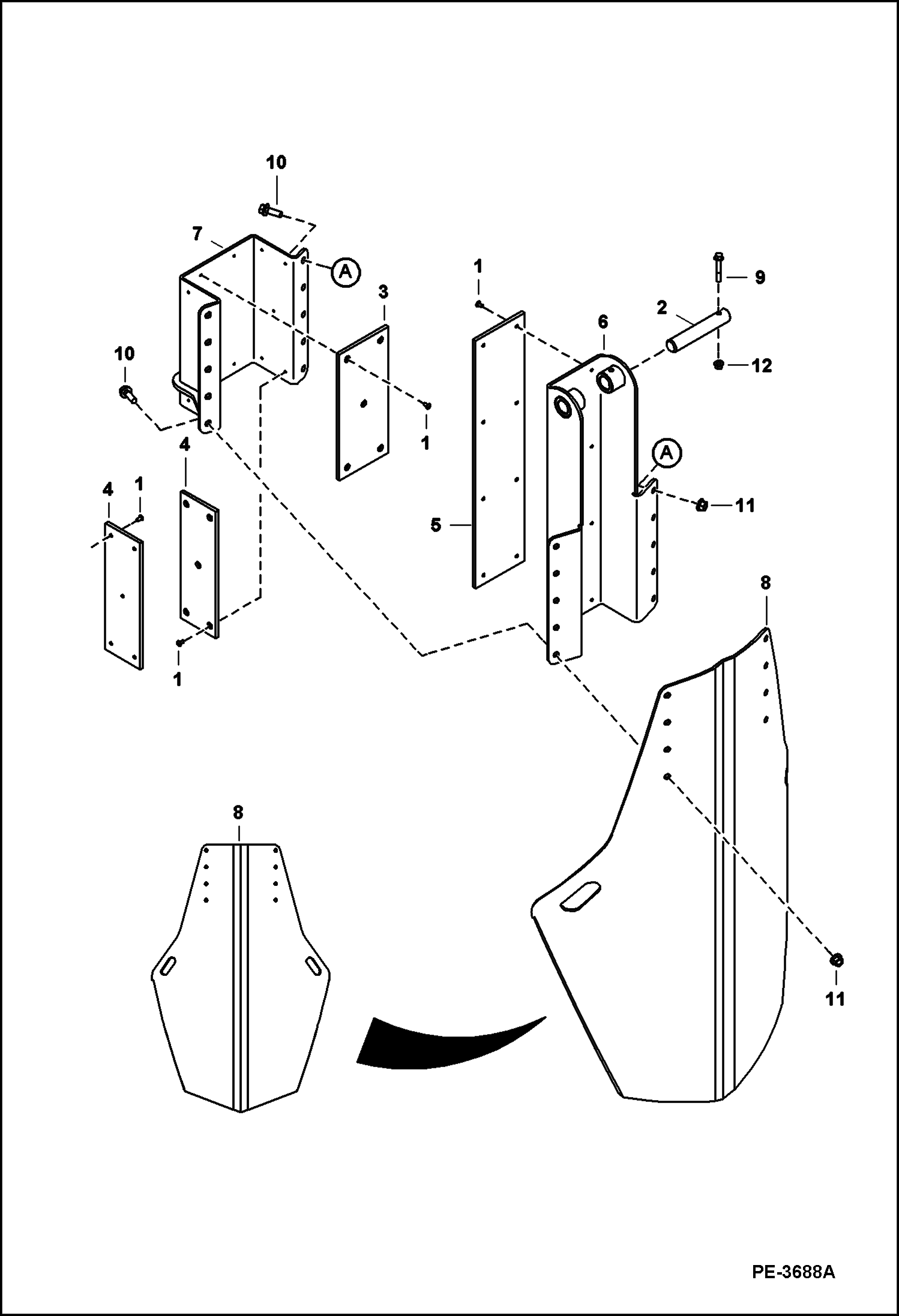

Запчасти Bobcat TREE SPADE TREE SPADE (Blade & Slide Assy) (TS36M A9UP) (TS36M Conv A9TZ) (TS36T A9UL) (TS36T Conv A9SA) Loader

1

6680159

BOLT truss head

2

7110196

PIN

3

7110199

SLIDE, WEAR wear

4

7110200

SLIDE, WEAR wear

5

7142113

SLIDE, WEAR

6

7142111

SLIDE wear

7

7142112

CLAMP, SLIDE

8

7152214

BLADE, 36M 36M

8

7142107

BLADE, 36T 36T

9

31C640

BOLT

10

31C824

BOLT 10

11

83D8

NUT 5

12

83D6

NUT 5
