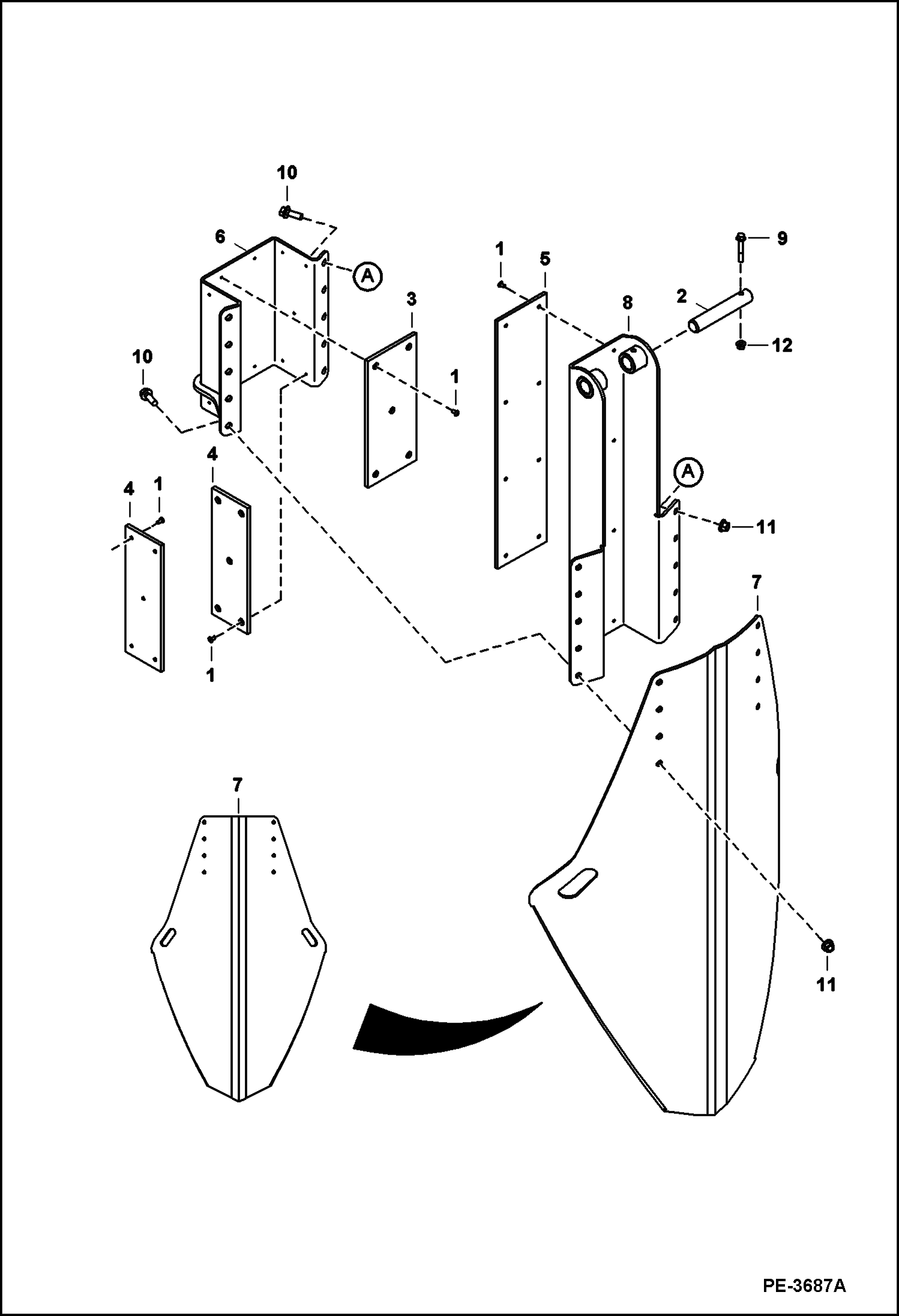

Запчасти Bobcat TREE SPADE TREE SPADE (Blade & Slide Assy) (TS36C A9VJ) (TS36C Conv A9V6) Loader

1

6680159

BOLT truss head

2

7110196

PIN

3

7110199

SLIDE, WEAR wear

4

7110200

SLIDE, WEAR wear

5

7144575

SLIDE, WEAR

6

7142112

CLAMP, SLIDE wear

7

7155286

BLADE, 36C 36C

8

7155287

SLIDE

9

31C640

BOLT

10

31C824

BOLT 10

11

83D8

NUT 5

12

83D6

NUT 5
