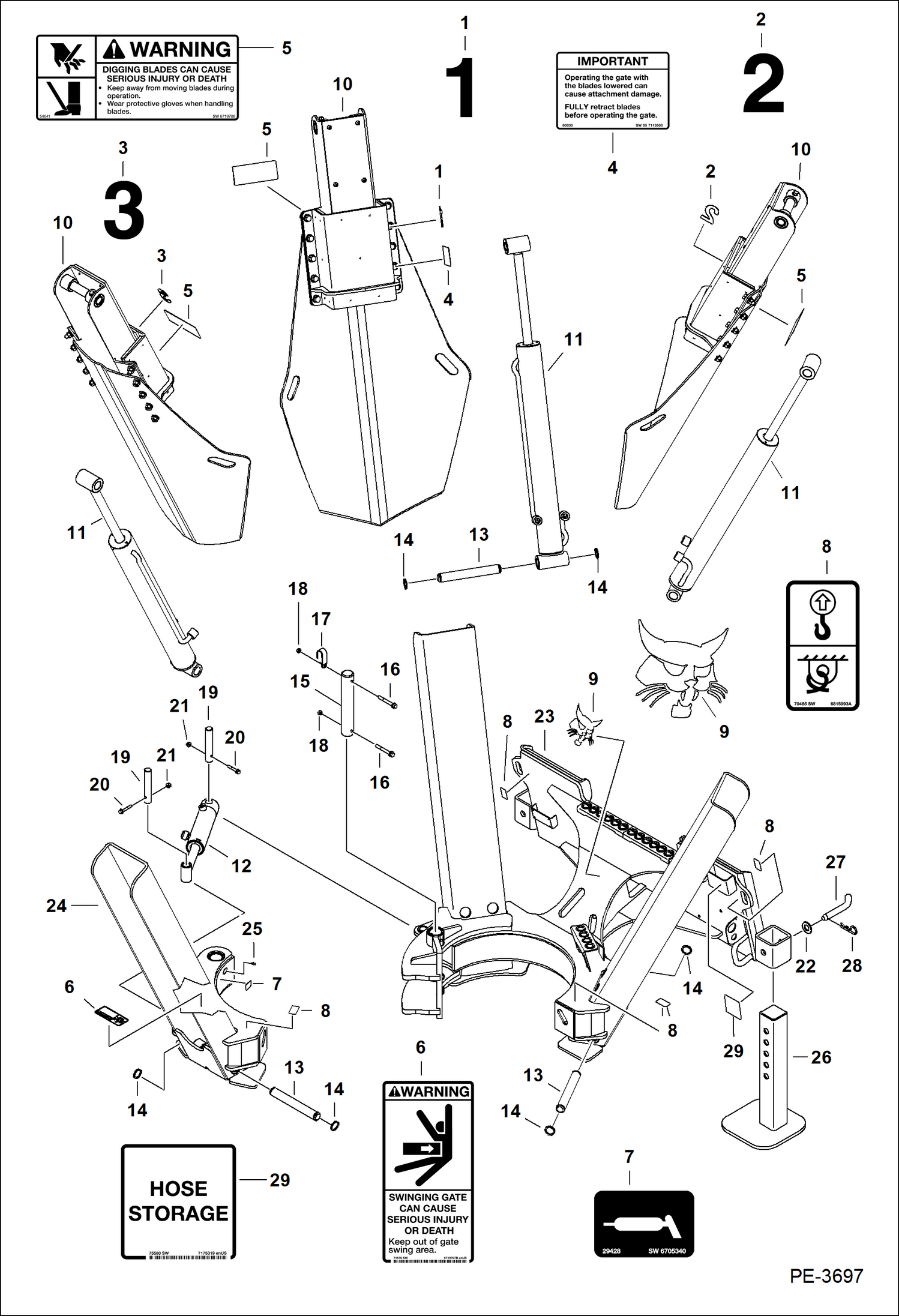

Запчасти Bobcat TREE SPADE TREE SPADE (Main Frame) (TS32M A9UH) (TS32M Conv A9TV) (TS32T A9UE) (TS32T Conv A9TS) Loader

1

6719804

DECAL #1

2

6719805

DECAL #2

3

6719806

DECAL #3

4

7113500

DECAL, IMPORTANT See Illustration TREE SPADE/ NA6699

4

7208698

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

5

6719708

DECAL,WARNING See Illustration TREE SPADE/ NA6699

5

7208697

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

6

6719707

DECAL,WARNING See Illustration TREE SPADE/ NA6699

6

7163544

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

7

6705340

DECAL, GREASE

8

6815993

DECAL, LIFT tie down

9

6700191

DECAL, LOGO BOBCAT HEAD

10

BLADE & SLIDE ASSY See Illustration BLADE & SLIDE ASSEMBLY/ PE3688

11

6693043

CYLINDER, BLADE See Illustration TREE SPADE/ PE3669 blade

12

6693044

CYLINDER, GATE See Illustration TREE SPADE/ PE3667 gate

13

7110186

PIN cylinder

14

22J20

SNAP RING

15

7142887

PIN hinge

16

31C648

BOLT

17

31H46

CLAMP

18

85D6

NUT, 5

19

7142136

PIN cylinder

20

31C532

BOLT

21

83D5

NUT 5

22

25E29

WSHR

23

7153670

FRAME, MAIN ASSY TS32M

23

7145902

FRAME, MAIN ASSY TS32T

24

7153672

GATE TS32T

25

10H35

FITTING, GREASE 10 grease

26

7147424

SUPPORT, LEG leg - L.H.

26

7142885

SUPPORT, LEG leg - R.H.

27

6725798

PIN

28

6679876

PIN

29

7175319

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699

29

7196473

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699 - no-text
