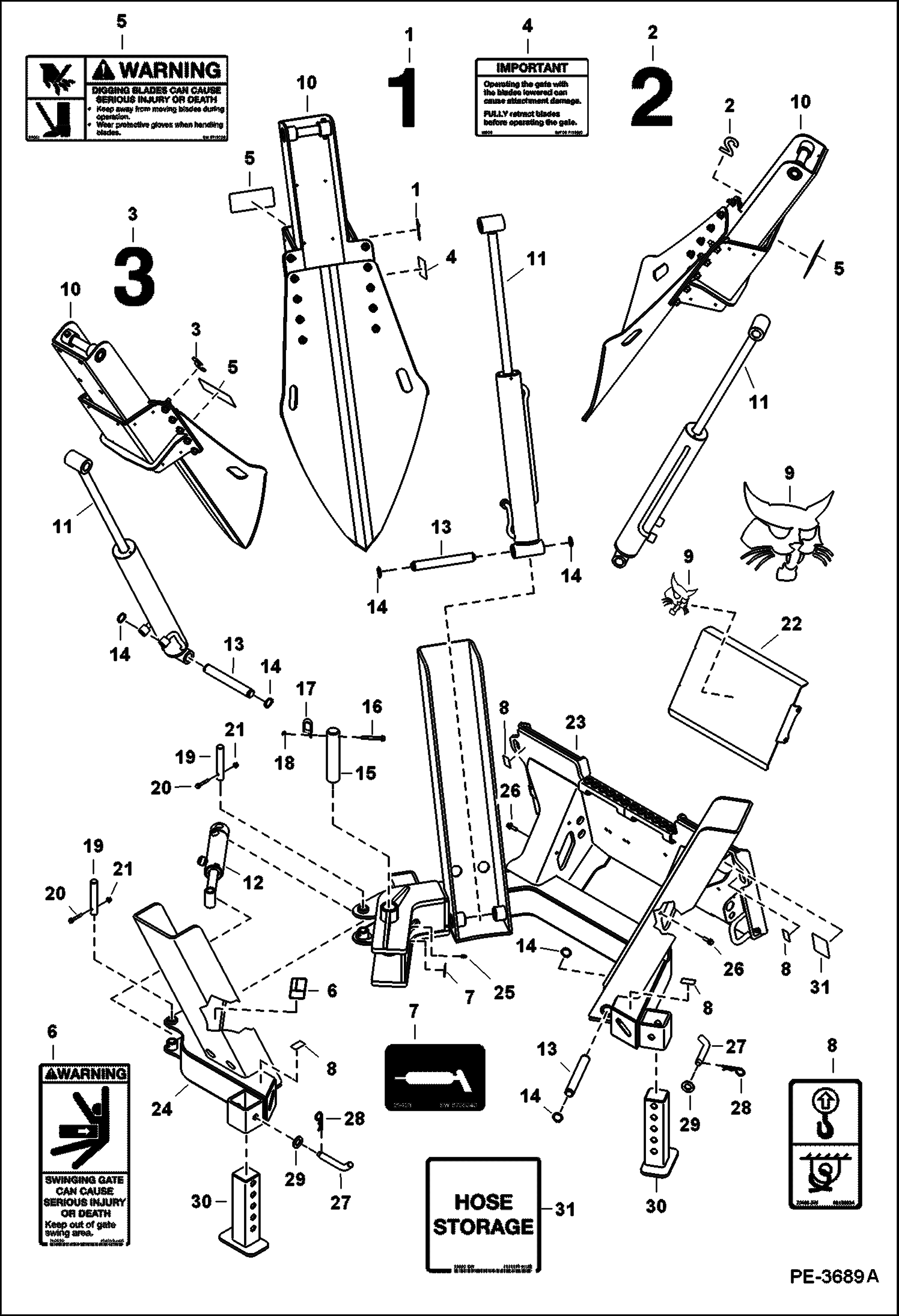

Запчасти Bobcat TREE SPADE TREE SPADE (Main Frame) (TS28C A9VE) (TS28C Conv A9VO) Loader

1

6719804

DECAL #1

2

6719805

DECAL #2

3

6719806

DECAL #3

4

7113500

DECAL, IMPORTANT See Illustration TREE SPADE/ NA6699

4

7208698

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

5

6719708

DECAL,WARNING See Illustration TREE SPADE/ NA6699

5

7208697

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

6

6719707

DECAL,WARNING See Illustration TREE SPADE/ NA6699

6

7163544

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

7

6705340

DECAL, GREASE

8

6815993

DECAL, LIFT tie down

9

6700191

DECAL, LOGO BOBCAT HEAD

10

BLADE & SLIDE ASSY See Illustration TREE SPADE/ PE3685A

11

6693043

CYLINDER, BLADE See Illustration TREE SPADE/ PE3669

12

6693044

CYLINDER, GATE See Illustration TREE SPADE/ PE3667 gate

13

7110186

PIN cylinder

14

22J20

SNAP RING

15

7110179

PIN hinge

16

31C648

BOLT

17

31H46

CLAMP

18

85D6

NUT, 5

19

7142136

PIN cylinder

20

31C532

BOLT

21

83D5

NUT 5

22

7151958

COVER, VALVE valve

23

7157298

FRAME, MAIN ASSY

24

7157300

GATE

25

10H35

FITTING, GREASE 10

26

31C620

BOLT

27

6725798

PIN

28

6679876

PIN

29

25E29

WSHR

30

7124445

SUPPORT, LEG leg

31

7175319

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699

31

7196473

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699 - no-text
