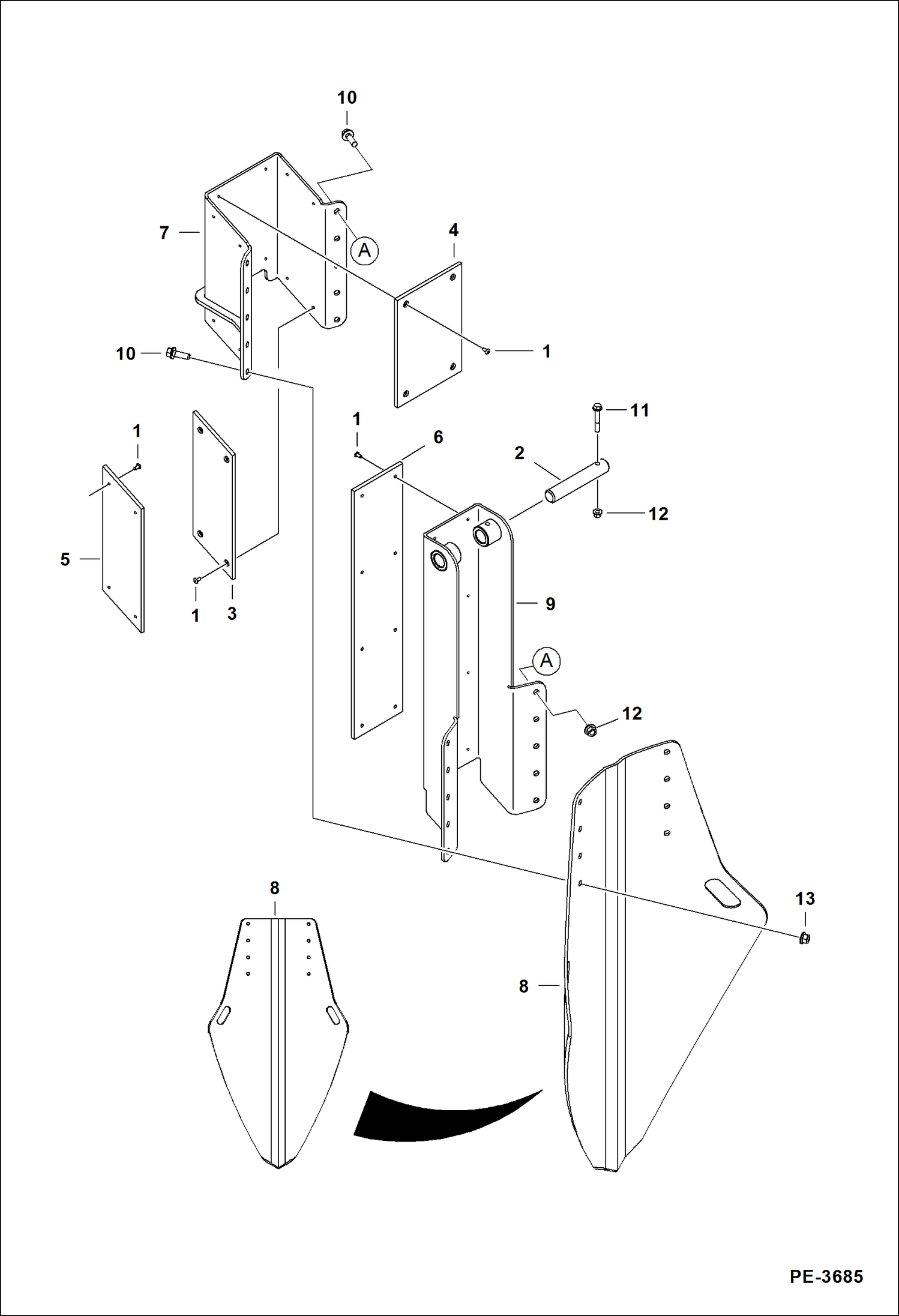

Запчасти Bobcat TREE SPADE TREE SPADE (Blade & Slide Assy) (TS24C A9VC) (TS24C Conv A9UW) Loader

1

6680159

BOLT thruss head

2

7110196

PIN

3

7124468

SLIDE, WEAR wear

4

7124470

SLIDE, WEAR wear

5

7124471

SLIDE, WEAR wear

6

7142113

SLIDE, WEAR

7

7143635

CLAMP, SLIDE

8

7155937

BLADE, 24C 24C

9

7155938

SLIDE inside

10

31C824

BOLT 10

11

35C640

BOLT 10

12

83D6

NUT 5

13

83D8

NUT 5
