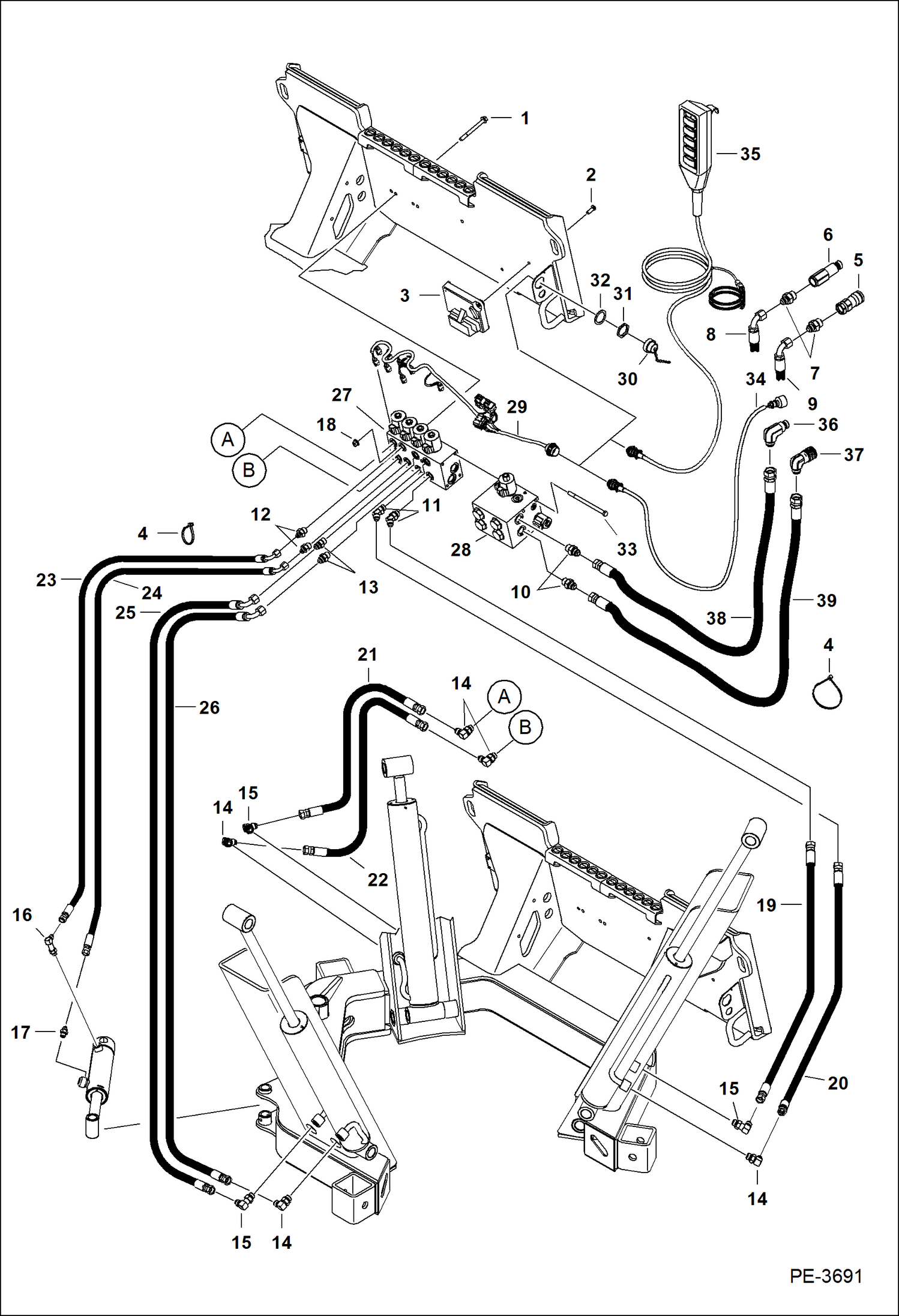

Запчасти Bobcat TREE SPADE TREE SPADE (Hydraulics) (TS24C Conv A9UW) (TS24M Conv A9SN) (TS24T Conv A9SK) Loader

1

31C664

BOLT

2

25G616

SCREW

3

6697951

CONTROLLER, ACD ACD

4

6624289

STRAP, TIE

5

6672960

COUPLER, FF FEMALE straight

6

6674688

COUPLER, FF MALE straight

7

15KB1012

FITTING, HYD CONNECTOR

8

7149386

HOSE, HYD 1778 mm (70'') long - 90 degree fitting (.875'' thread) & .875'' thread - Use straight couplers

9

7149387

HOSE, HYD 1880 mm (74'') long - 90 degree fitting (.875'' thread) & .875'' thread - Use straight couplers

10

15KB1010

FITTING, HYD CONNECTOR

11

18KB0808

FTG HYD ELBOW 45

12

15KB0608

FITTING, HYD CONNECTOR

13

15KB0808

FITTING, HYD CONNECTOR

14

17KB0808

FITTING, HYD ELBOW

15

7153665

ELBOW

16

6812815

FITTING

17

15KB0606

FITTING, HYD CONNECTOR

18

83D6

NUT 5

19

7154761

HOSE, HYD

20

7154762

HOSE, HYD

21

7154762

HOSE, HYD

22

7154764

HOSE, HYD

23

7154765

HOSE, HYD

24

7154766

HOSE, HYD

25

7154767

HOSE, HYD

26

7154768

HOSE, HYD

27

6693257

VALVE, 3-BLADE See Illustration TREE SPADE/ MS2725 3-blade

28

6693256

VALVE, INLET CONVERTIBLE See Illustration TREE SPADE/ MS2727 inlet convertabile

29

6693256

VALVE, INLET CONVERTIBLE See Illustration TREE SPADE/ MS2727 inlet convertabile

30

6664035

CAP

31

6664036

NUT

32

6664037

WASHER

33

17C6104

BOLT

34

KIT See Illustration TREE SPADE/ PE3695 SALES #7152662 - ACD conversion - 7 pin

35

KIT See Illustration TREE SPADE/ PE3693 SALES #7152663 - pendant control - 3 blade

36

7168432

COUPLER, FF MALE 90 degree

37

7168433

COUPLER, FF FEMALE 90 degree

38

7171824

HOSE, HYD 1651 mm (65'') long - .875'' thread & 1.063'' thread - Use 90 degree couplers

39

7171825

HOSE, HYD 1778 mm (70'') long - .875'' thread & 1.063'' thread - Use 90 degree couplers
