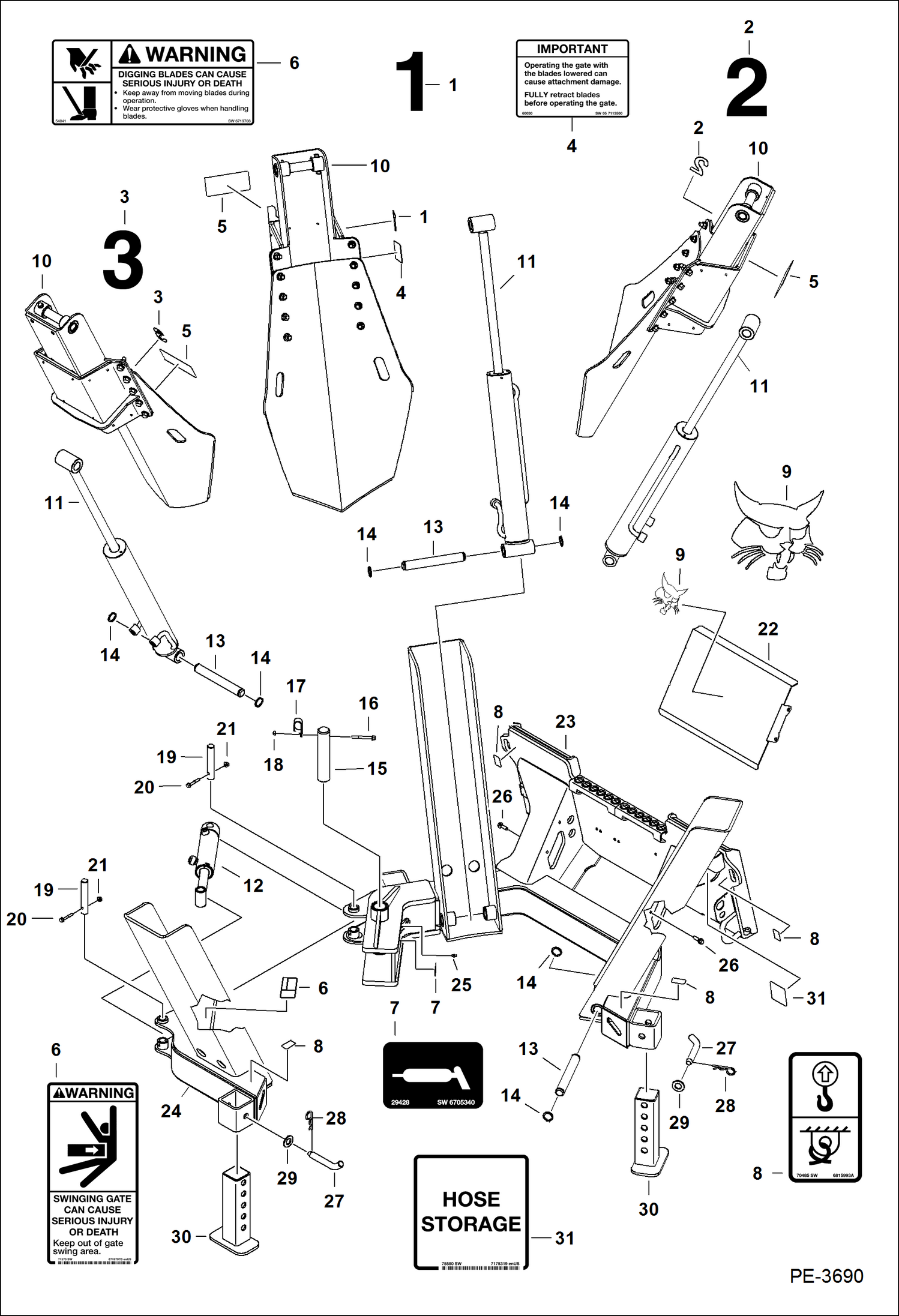

Запчасти Bobcat TREE SPADE TREE SPADE (Main Frame) (TS24M A9U5) (TS24M Conv A9SN) (TS24T A9U2 ) (TS24T Conv A9SK) Loader

1

6719804

DECAL #1

2

6719805

DECAL #2

3

6719806

DECAL #3

4

7113500

DECAL, IMPORTANT See Illustration TREE SPADE/ NA6699

4

7208698

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

5

6719708

DECAL,WARNING See Illustration TREE SPADE/ NA6699

5

7208697

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

6

6719707

DECAL,WARNING See Illustration CYLINDER - ANGLE CONTROL/ PE1330

6

7163544

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

7

6705340

DECAL, GREASE

8

6815993

DECAL, LIFT tie down

9

6700191

DECAL, LOGO BOBCAT HEAD

10

BLADE & SLIDE ASSY See Illustration TREE SPADE/ PE3686

11

6693342

CYLINDER, BLADE See Illustration TREE SPADE/ PE3669 blade

12

6693044

CYLINDER, GATE See Illustration TREE SPADE/ PE3667 gate

13

7110186

PIN cylinder

14

22J20

SNAP RING

15

7110179

PIN hinge

16

31C648

BOLT

17

31H46

CLAMP

18

85D6

NUT, 5

19

7142136

PIN cylinder

20

31C532

BOLT

21

83D5

NUT 5

22

7151958

COVER, VALVE valve

23

7155697

FRAME, MAIN ASSY main - TS24M

23

7143449

FRAME, MAIN ASSY main - TS24T

24

7155699

GATE TS24M

24

7143459

GATE TS24T

25

10H35

FITTING, GREASE 10 grease

26

31C620

BOLT

27

6725798

PIN

28

6679876

PIN

29

25E29

WSHR

30

7124445

SUPPORT, LEG leg

31

7175319

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699

31

7196473

DECAL, STORAGE HOSE See Illustration TREE SPADE/ NA6699 - no-text
