TREE SPADE (Gate Cylinder) (4 Blade) (TS44C) (TS44M)

Запчасти Bobcat TREE SPADE TREE SPADE (Gate Cylinder) (4 Blade) (TS44C) (TS44M) Loader

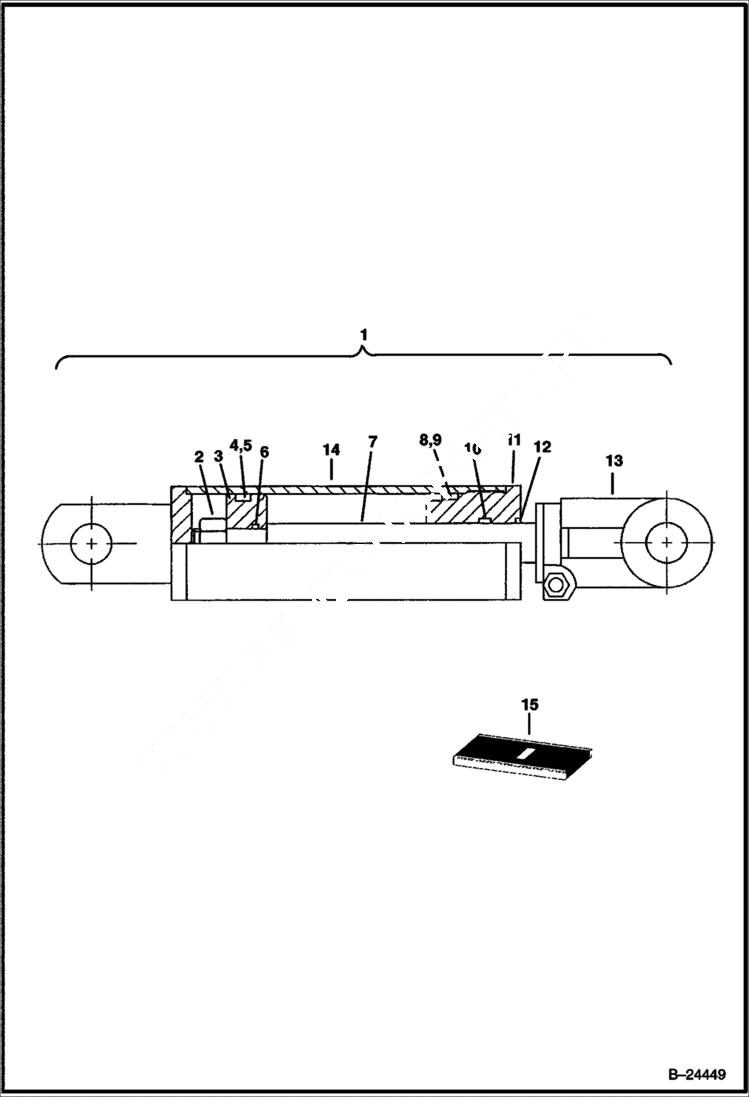

Схема запчастей Bobcat TREE SPADE - TREE SPADE (Gate Cylinder) (4 Blade) (TS44C) (TS44M) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6677386

CYLINDER ASSY W/Ref. 2 - 14

2

6677517

NUT

3

6677518

PISTON

4

SEAL NSS - Order Ref. 15

5

BACKUP WASHER NSS - Order Ref. 15

6

SEAL NSS - Order Ref. 15

7

6677522

SHAFT

8

SEAL NSS - Order Ref. 15

9

BACKUP WASHER NSS - Order Ref. 15

10

SEAL NSS - Order Ref. 15

11

6677526

HEAD

12

WIPER SEAL NSS - Order Ref. 15

13

6677528

CLEVIS

14

6677516

CASE

15

6677529

SEAL KIT W/Ref. 4-6, 8-10, 12
