TREE SPADE (Switchbox & Harness Assy) (4 Blade) (TS44C 9744) (TS44M 9745)

Запчасти Bobcat TREE SPADE TREE SPADE (Switchbox & Harness Assy) (4 Blade) (TS44C 9744) (TS44M 9745) Loader

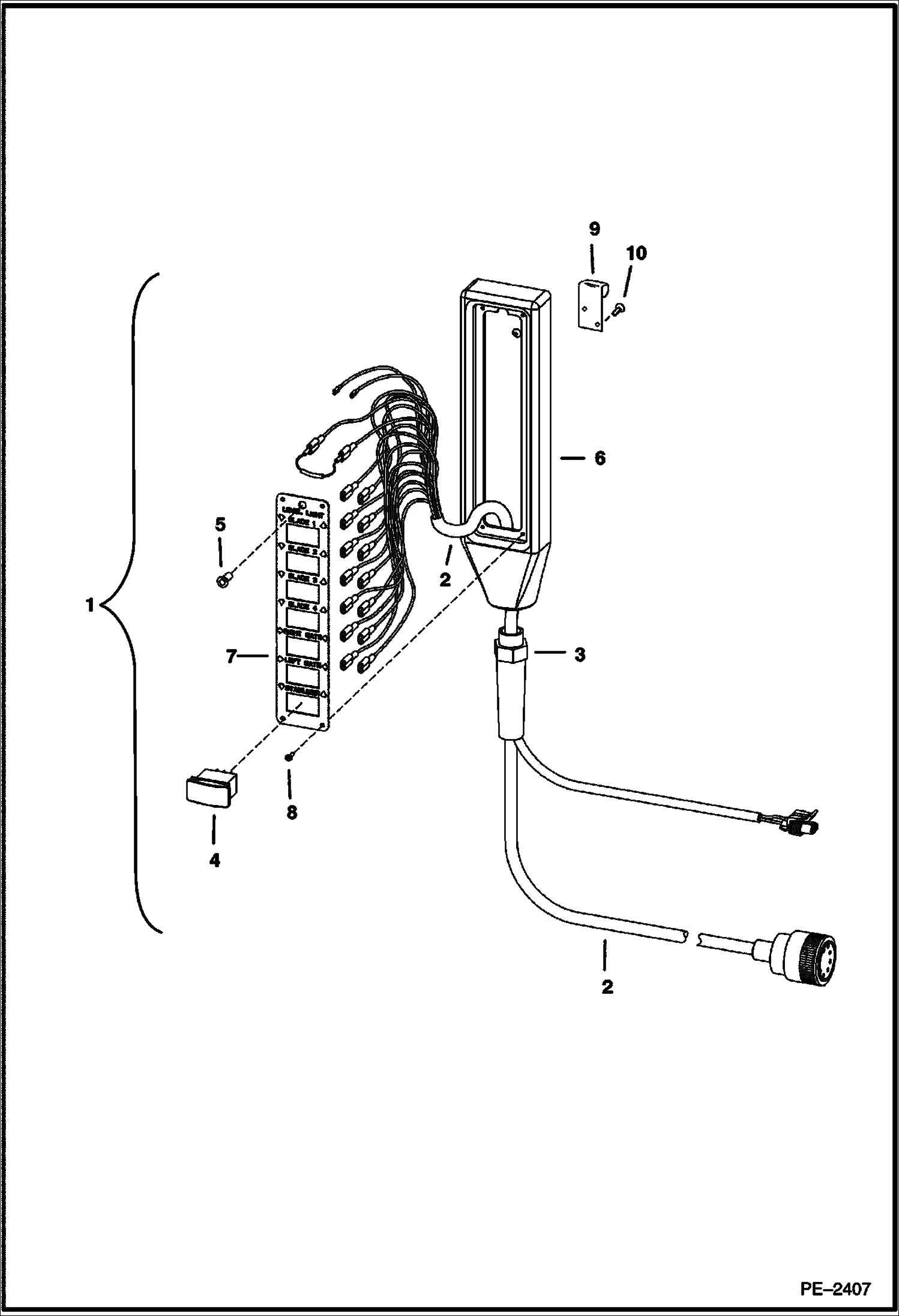

Схема запчастей Bobcat TREE SPADE - TREE SPADE (Switchbox & Harness Assy) (4 Blade) (TS44C 9744) (TS44M 9745) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6732431

SWITCHBOX ASSY W/Ref. 2 - 9

2

6732434

HARNESS harness only

3

6679640

NUT strain relief

4

6678553

SWITCH rocker

5

LIGHT NLA - LED indicator - Was 6679753 - A

6

6732432

ENCLOSURE enclosure only

7

6732433

FACE PLATE

8

85G606

BOLT

9

6732570

HOOK mounting

10

6630207

RIVET 5
