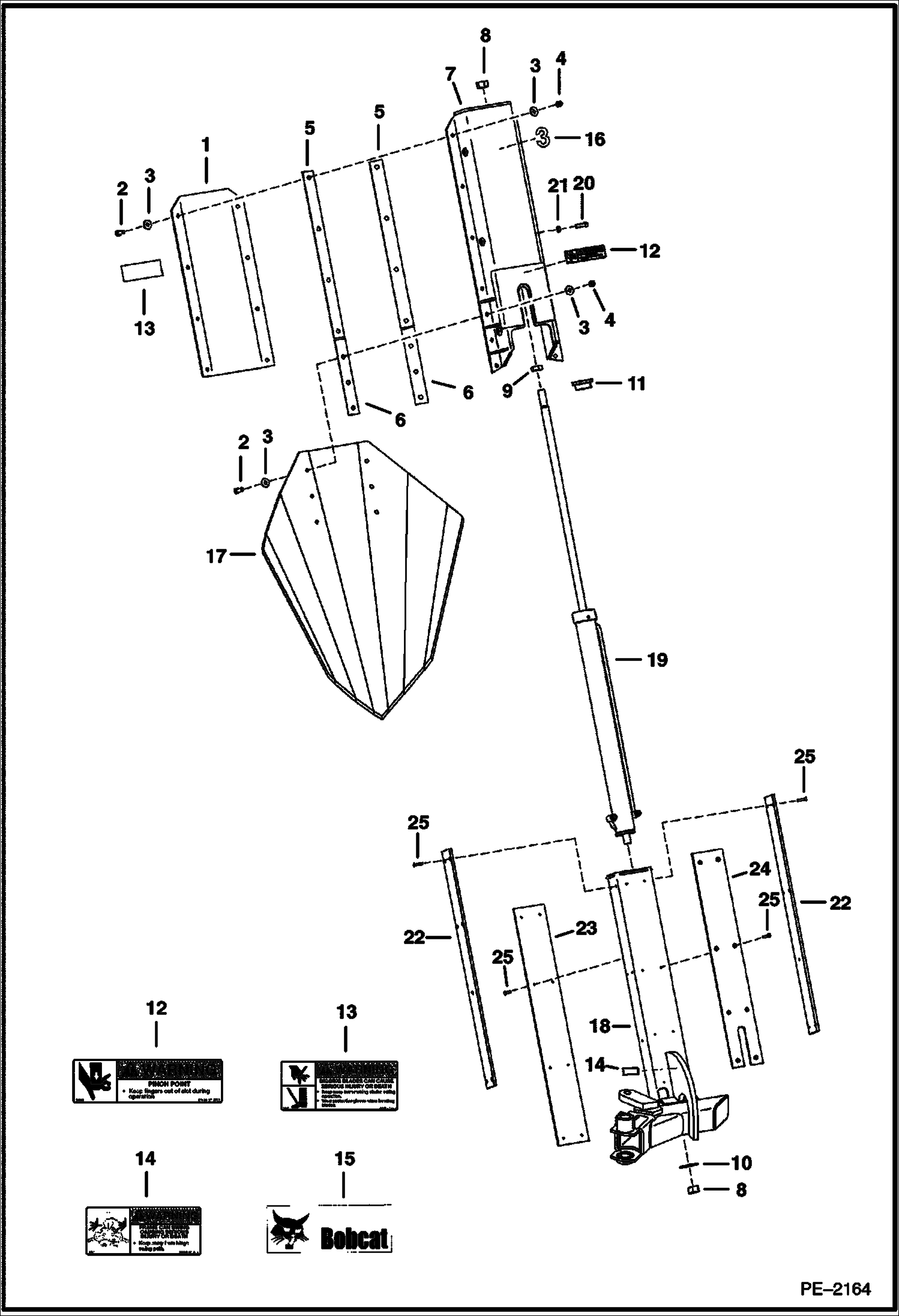

Запчасти Bobcat TREE SPADE TREE SPADE (Tower & Blade) (4 Blade) (TS44C) (TS44M) Loader

1

6725751

COVER

2

17C820

BOLT

3

25E22

WASHER

4

61D8

NUT 5

5

6725754

SHIM

6

6725763

SHIM

7

6725723

CHANNEL

8

62D16

NUT

9

8D16

NUT

10

6679878

WASHER rubber

11

6725806

GUIDE cylinder

12

6719705

DECAL tower warning

13

6719708

DECAL,WARNING See Illustration TREE SPADE/ NA6699

13

7208697

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

14

6719707

DECAL,WARNING See Illustration TREE SPADE/ NA6699

14

7163544

DECAL, WARNING See Illustration TREE SPADE/ NA6699 - no-text

15

6567988

DECAL, LOGO BOBCAT AND HEAD

16

6719804

DECAL # 1 tower

16

6719805

DECAL # 2 tower

16

6719806

DECAL # 3 tower (shown)

16

6719807

DECAL # 4 tower

17

6725762

SPADE cone - TS44C

17

6725761

SPADE modified - TS44M

18

FRAME ARM See Illustration TREE SPADE/ PE2166

19

6678770

CYLINDER ASSY See Illustration TREE SPADE/ B15835A TOWER

20

97G824

BOLT

21

7D8

NUT 5

22

6733318

SLIDE side

23

6733320

SLIDE outer

24

6733319

SLIDE inner

25

76G412

BOLT countersunk head

25

6680159

BOLT counterbore truss head
