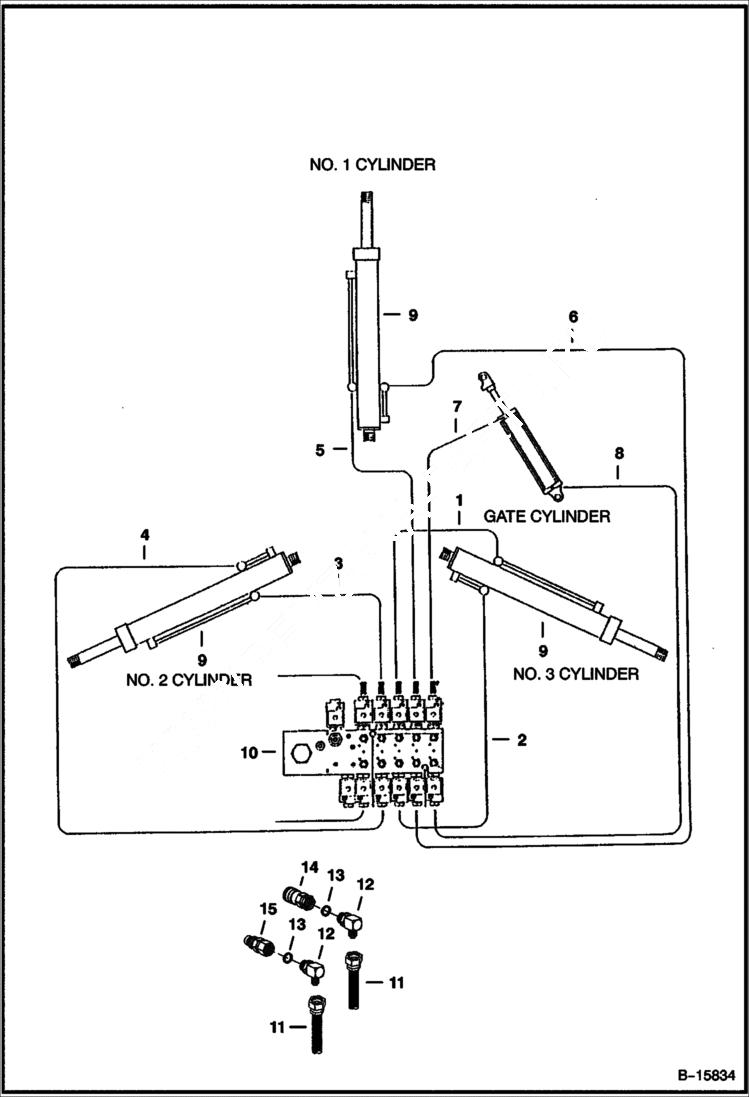

Запчасти Bobcat TREE SPADE TREE SPADE (Hydraulic System) (3 Blade Models) Loader

1

6727044

HOSE 30T

1

6727036

HOSE 30C, 34T

1

6727052

HOSE 34C, 36M, 30M

2

6727045

HOSE 30T, 30M

2

6727037

HOSE 30C, 34T

2

6727053

HOSE 34C, 36M

3

6727046

HOSE 30T

3

6727038

HOSE 30C, 34T, 34C, 36M, 30M

4

6727047

HOSE 30T

4

6727039

HOSE 30C, 34T, 34C, 36M, 30M

5

6727048

HOSE 30T, 30M

5

6727040

HOSE 30C, 34T

5

6727056

HOSE 34C, 36M

6

6727049

HOSE 30T

6

6727041

HOSE 30C, 34T

6

6727057

HOSE 34C, 36M, 30M

7

6727050

HOSE 30T

7

6727042

HOSE 30C, 34T

7

6727058

HOSE 34C, 36M

7

6727057

HOSE 30M

8

6727051

HOSE 30T

8

6727043

HOSE 30C, 34T

8

6727059

HOSE 34C, 36M

8

6707105

HOSE 30M

9

CYLINDERS See Illustration TREE SPADE/ B15835

10

VALVE See Illustration TREE SPADE/ B15836 See Illustration TREE SPADE/ B15837 See Illustration TREE SPADE/ B20012 See Illustration TREE SPADE/ B20011

11

6725041

HOSE to couplers - all models

12

17KB1212

FITTING, HYD ELBOW

13

79K12

O RING 10

14

6672960

COUPLER, FF FEMALE straight

15

6674688

COUPLER, FF MALE straight
