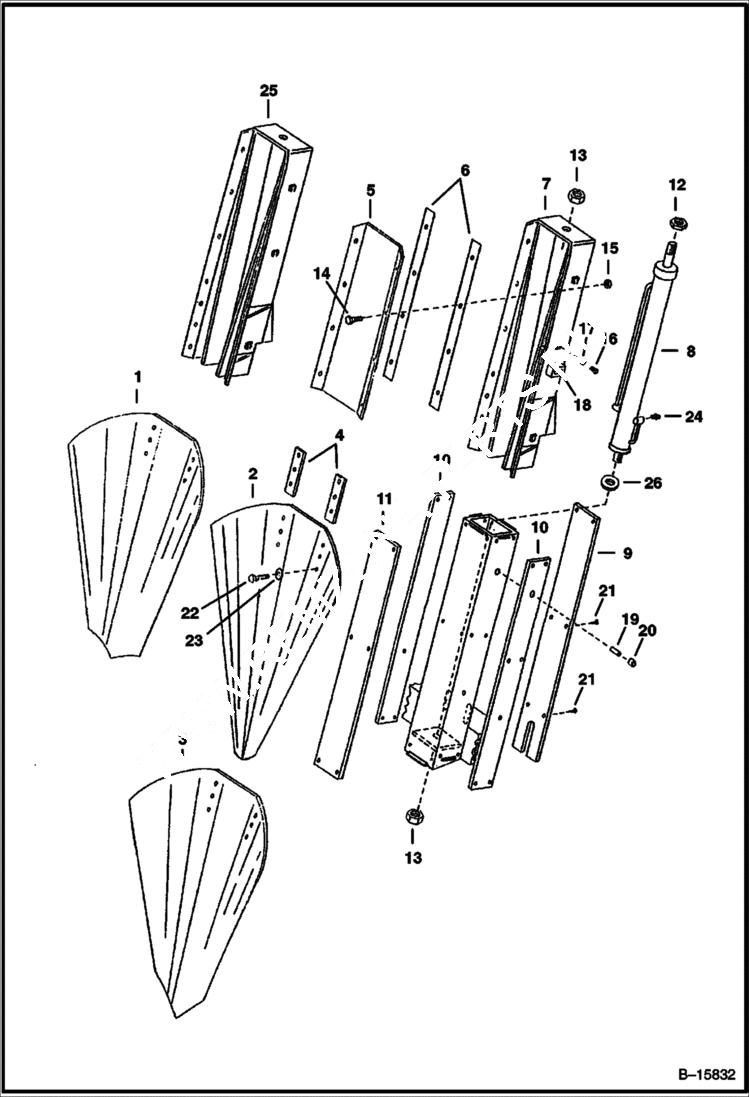

Запчасти Bobcat TREE SPADE TREE SPADE (Tower & Blades) (3 Blade Models) Loader

1

6725755

BLADE 30T - truncated

1

6725756

BLADE 34T - truncated

2

6725758

BLADE 30C - coned - for earlier machines when 1 blade is replaced

2

6731978

BLADE 30C - coned

2

6731670

BLADE 34C-coned-std-Was 6725759 - A

2

6729621

BLADE 34C - coned - long

3

6729506

BLADE 30M - modified-Was 6725757 - A

3

6729511

BLADE 36M - modified-Was 6725760 - A

4

6725763

SHIM

5

6725748

COVER 30T

5

6725749

COVER 34T

5

6725750

COVER 30C, 34C, 36M

6

6725752

SHIM 30T

6

6725753

SHIM 34T

6

6725754

SHIM 30C, 34C, 36M

7

6725718

SLIDE 30T

7

6725720

SLIDE 34T

7

6725722

SLIDE 30C, 34C, 36M

8

6725860

CYLINDER See Illustration TREE SPADE/ B15835 30T

8

6725861

CYLINDER See Illustration TREE SPADE/ B15835 34T

8

6725862

CYLINDER See Illustration TREE SPADE/ B15835 30C, 30M, 34C, 36M

9

6733328

BACK SKID 30T - Was 6725768 - A

9

6733325

BACK SKID 34T - Was 6725769 - A

9

6733321

BACK SKID 30C, 30M, 34C, 36M - Was 6725770 - A

10

6733329

SIDE SKID 30T - Was 6725773 - A

10

6733324

SIDE SKID 34T - Was 6725775 - A

10

6733318

SLIDE 30C, 30M, 34C, 36M - Was 6725777 - A

11

6733327

FRONT SKID 30T - Was 6725764 - A

11

6733326

FRONT SKID 34T - Was 6725765 - A

11

6733322

FRONT SKID 30C, 30M, 34C, 36M - Was 6725766 - A

12

8D16

NUT Was 7D000016B - B

13

62D16

NUT Was 61D000016B - B

14

17C820

BOLT

15

61D8

NUT 5

16

25G824

BOLT

17

7D8

NUT 5

18

COUNTER BOX box only

18

6675604

COUNTER

18

6675605

SWITCH

19

6675606

MAGNET

20

6677515

INSULATOR

21

76G412

BOLT countersunk head

21

6680159

BOLT counterbore head

22

17C820

BOLT

23

25E22

WASHER

24

6676460

ADAPTER pipe

25

6725717

SLIDE 30T

25

6725719

SLIDE 34T

25

6725721

SLIDE 30C, 34C, 36M

26

6727063

WASHER rubber
