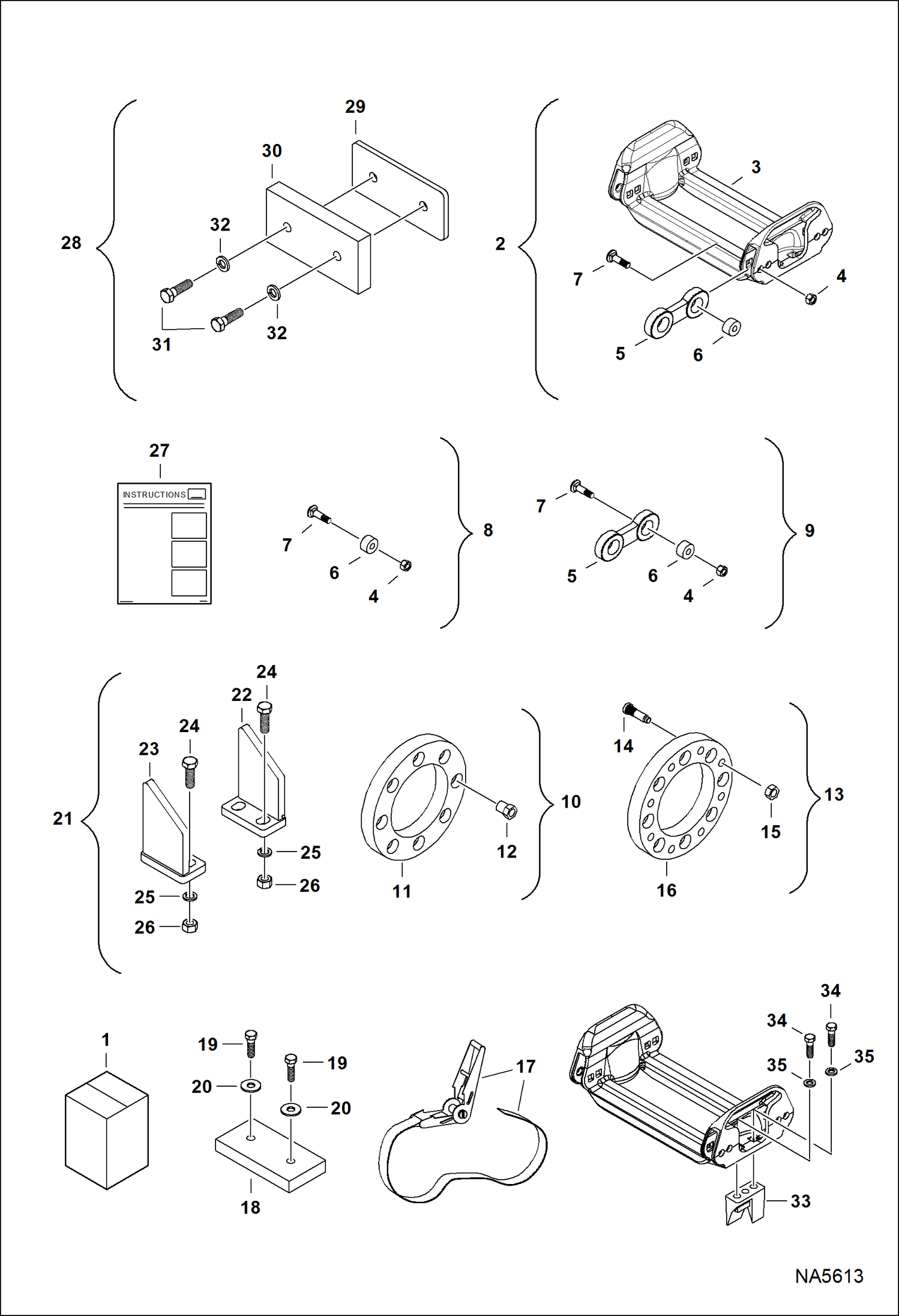

Запчасти Bobcat TRACKS TRACKS (Bobcat) (Grouser) Loader

1

KIT, TRACK STEEL 12.0X16.5 SALES #7178955 - Ref. 2 (7111863 pad assy), 13 (6679239 spacer kit), 17 & 27 - For S630 & S650

1

KIT. TRACK 12.0X16.5 SALES #7191754 - Ref. 2 (7111863 pad assy), 13 (7015306 spacer kit) 17 & 27 - For S750 & S770

1

KIT, TRACK 14.0X17.5 SALES #7191757 - Ref. 2 (7024012 pad assy), 13 (7015307 spacer kit) 17 & 27 - For S850

1

KIT, TRACK 10.0X16.5 SALES #7111881 - Ref. 2 (pad assy), 13 (spacer kit), 17 & 27 - For 753 & S130

1

KIT, TRACK 10.0X16.5 SALES #7112841 - Ref. 2 (pad assy), 13 (6679237 spacer kit), 17 & 27 - For S130

1

KIT, TRACK 10.0X16.5 SALES #7111883 - Ref. 2 (pad assy), 13 (spacer kit), 17 & 27 - For 763

1

KIT, TRACK 10.0X16.5 SALES #7111884 - Ref. 2 (pad assy), 13 (spacer kit), 17, 21 & 27 - For S150 & S160

1

KIT, TRACK 10.0X16.5 SALES #7111890 - Ref. 2 (pad assy), 13 (6679237 spacer kit), 17 & 27 - For 773 F Series, 7753

1

KIT, TRACK 10.0X16.5 SALES #7111882 - Ref. 2 (pad assy), 17 & 27 - For 773G, S175 & S185

1

KIT, TRACK 12.0X16.5 SALES #7111892 - Ref. 2 (pad assy), 13 (6679237 spacer kit), 17 & 27 - For 853

1

KIT, TRACK 12.0X16.5 SALES #7111887 - Ref. 2 (pad assy), 13 (spacer kit), 17 & 27 - For 863

1

KIT, TRACK 33X15.5X16.5 SALES #7111900 - Ref. 2 (pad assy), 13 (6679054 spacer kit), 17 & 27 - For 863

1

KIT, TRACK 10.0X16.5 SALES #7111888 - Ref. 2 (pad assy), 13 (spacer kit), 17 & 27 - For 873

1

KIT, TRACK 12.0X16.5 SALES #7111896 - Ref. 2 (pad assy), 13 (6679239 spacer kit), 17 & 27 - For 873, 883

1

KIT, TRACK 33X15.5X16.5 SALES #7111905 - Ref. 2 (pad assy), 13 (6679239 spacer kit), 17 & 27 - For 873 & 883

1

KIT, TRACK 33X15.5X16.5 SALES #7111906 - Ref. 2 (pad assy), 13 (7112306 spacer kit), 17 & 27 - For S220, S250 & S300

1

KIT, TRACK 14.0X17.5 SALES #7111903 - Ref. 2 (pad assy), 10 (6679241 spacer kit), 17 & 27 - For 963

1

KIT, TRACK 14.0X17.5 SALES #7111907 - Ref. 2 (pad assy), 10 (6679241 spacer kit), 17 & 27 - For 963

1

KIT, TRACK 31X12X16.5 SALES #7135552 - Ref. 2 (pad assy), 13 (6679239 spacer kit), 17 & 27 - For S205

1

KIT, TRACK 14.0X17.5 SALES #7141928 - Ref. 2 (pad assy), 13 (7141938 spacer kit), 17 & 27 - For S330

1

KIT, TRACK 10.0X16.5 SALES #7222581 - Ref. 2 (7111862 pad assy), 13 (6679239 spacer kit), 17 (6679059 ratchet strap) & 27 - For S510, S530, S550, S570 & S590

2

7111989

PAD ASSY, 11.50'' 11.50'' wide - fits 8.5'' tire - Ref. 3-7 - Was 6679203 - A

2

PAD ASSY, 11.50'' NLA - 11.50'' wide W/1'' bars - fits 8.5'' tire - Order 7111989 - Was 6679205 - A

2

7111862

PAD ASSY, 13.25'' 13.25'' wide - fits 10'' tire - Ref. 3-7 - Was 6679207 - A

2

7111863

PAD ASSY, 14.75'' 14.75'' wide - fits 12'' tire - Ref. 3 (7111860 pad), (2) of Ref. 5 & (4) each of Ref. 4, 6 & 7 - For S630 & S650 - Was 6679209 - A

2

7111864

PAD ASSY, 16.00'' 16.00'' wide - fits 14'' tire - Ref. 3-7 - Was 6679211 - A

2

7111867

PAD ASSY, 17.50'' 17.50'' wide - fits 15.5'' tire - Ref. 3-7 - Was 6679213 - A

2

7024012

PAD ASSY, 15.50'' 15.50'' wide - fits 12'' tire - Ref. 3-7

3

7111988

PAD, 11.50'' pad only - fits 8.5'' tire - Was 6679174 - A

3

PAD, 11.50'' NLA - pad only - W/1'' bars - fits 8.5'' tire - Order 7111988 - Was 6679204 - A

3

7111858

PAD, 13.25 pad only - fits 10'' tire - Was 6679206 - A

3

7111860

PAD, 14.75'' pad only - fits 12'' tire - For S630 & S650 - Was 6679208 - A

3

7111861

PAD, 16.00'' pad only - fits 14'' tire - Was 6679210 - A

3

7111865

PAD, 17.50'' pad only - fits 15.5'' tire - Was 6679212 - A

3

7125016

PAD, 15.50'' pad only - For S330

4

6679217

NUT 25

5

7111857

LINK, TRACK 4 Was 6679214 - A

6

6679215

BUSHING 25 1.25'' OD

7

6679216

BOLT, CARRIAGE 25

8

7111868

KIT,REBUILD (120) each of Ref. 4, 6 & 7 - Was 6679218 - A

8

7111869

KIT,REBUILD (128) each of Ref. 4, 6 & 7 - For S130 - Was 6679219 - A

8

7111870

KIT,REBUILD (136) each of Ref. 4, 6 & 7 - For S150, S160, S175 & S185 - Was 6679220 - A

8

7111871

KIT,REBUILD (152) each of Ref. 4, 6 & 7 - For S300, S250, S220, S630 & S650 - Was 6679221 - A

8

7111872

KIT,REBUILD (160) each of Ref. 4, 6 & 7 - Was 6679222 - A

8

7111873

KIT,REBUILD (168) each of Ref. 4, 6 & 7 - Was 6679223 - A

9

7111874

KIT,REBUILD (120) each of Ref. 4, 6 & 7 & (60) of Ref. 5 - Was 6679224 - A

9

7111875

KIT,REBUILD (128) each of Ref. 4, 6 & 7 & (64) of Ref. 5 - Was 6679225 - A

9

7111876

KIT,REBUILD (136) each of Ref. 4, 6 & 7 & (68) of Ref. 5 - Was 6679226 - A

9

7111877

KIT,REBUILD (152) each of Ref. 4, 6 & 7 & (76) of Ref. 5 - Was 6679227 - A

9

7111878

KIT,REBUILD (160) each of Ref. 4, 6 & 7 & (80) of Ref. 5 - Was 6679228 - A

9

7111879

KIT,REBUILD (168) each of Ref. 4, 6 & 7 & (84) of Ref. 5 - Was 6679229 - A

10

6679241

KIT, SPACER WHEEL (4) of Ref. 11 & (40) of Ref. 12 - For 963

11

6679242

KIT, SPACER WHEEL one spacer only - W/O nuts - 1.5'' thick - For 963

12

6679234

NUT,REACH 40 used per machine - 3/4'' threads x 1.5'' long - For 963

13

6679235

KIT, SPACER WHEEL (4) of Ref. 13 (6679236 spacer kits) - For 553 & S100

13

6679236

KIT, SPACER WHEEL (1) of Ref. 16 & (8) each of Ref. 14 & 15 - 1.5'' wide & 6 holes on 6'' center - For 553

13

6679237

KIT, SPACER WHEEL (4) of Ref. 13 (6679238 spacer kits) - For 843, 853, 863 & S130 - W/ 33X15.5X16.5 tires

13

6679238

KIT, SPACER WHEEL (1) of Ref. 16 & (8) each of Ref. 14 & 15 - 1.5'' wide & 8 holes on 8'' center - For 863, S175, S185 & S205 - W/ 33X15.5X16.5 tires

13

6679239

KIT, SPACER WHEEL (4) of Ref. 13 (6679240 spacer kits) - 2'' wide - For 773, 873, S220, S250, S300, S205, S510, S530, S550, S570, S590, S630 & S650 - W/ 12X16.5 or 33X15.5X16.5 or 10X16.5 tires

13

6679240

KIT, SPACER WHEEL (1) of Ref. 16 & (8) each of Ref. 14 (6709170 bolt) & Ref. 15 (6564669 nut) - 2'' wide, 9/16'' studs & 8 holes on 8'' center - For 873, S220, S250, S300, S630 & S650 - W/

13

7112306

KIT, SPACER WHEEL (4) of Ref. 13 (6697962 spacer kits)- 2.5'' wide - For flotation tires - For S220, S250 & S300

13

6697962

KIT, SPACER WHEEL (1) of Ref. 16 & (8) each of Ref. 14 & 15 - 2.50'' wide - For S220, S250 & S300

13

7141938

KIT, SPACER WHEEL (4) of Ref. 13 (7141937 spacer kits) - 2.50'' wide - For S330

13

7141937

KIT, SPACER WHEEL (1) of Ref. 16 & (8) each of Ref. 14 (6693012 stud) & 15 (7131115 nut) - 2.50'' wide - For S330

13

7015306

KIT, SPACER WHEEL (4) of Ref. 13 (7022796 spacer kits) - 50,8 mm (2'') wide - S750, S770

13

7022796

KIT, SPACER WHEEL (1) of Ref. 16 & (8) each of Ref. 14 (6709170 bolt) & Ref. 15 (6564669 nut) - 50,8 mm (2'') wide - S750, S770

13

7015307

KIT, SPACER WHEEL (4) of Ref. 13 (7022797 spacer kits) - S850

13

7022797

KIT, SPACER WHEEL (1) of Ref. 16 & (8) each of Ref. 14 (7130936 stud) & 15 (7131115 nut) - S850

14

6679231

STUD,9/16X 2.12'' 8

14

6693012

STUD metric 16 mm - For S330

14

6709170

BOLT, WHEEL

14

7130936

STUD

15

6679233

NUT,9/16'' 8 W/O flange

15

7111856

NUT W/flange

15

7131115

NUT metric 16 mm - For S330

15

6564669

NUT, 10

16

SPACER, WHEEL NSS

17

6679059

STRAP, RATCHET For S510, S530, S550, S570, S590, S630 & S650

17

6679060

STRAP W/O ratchet

17

RATCHET NSS

18

6562452

BOOM STOP

19

17C620

BOLT

20

25E17

WASHER 5

21

7112304

KIT Ref. 22-26 - mounts on fenders of S150 & S160

22

STOP, BOOM NSS - Order Ref. 21

23

STOP, BOOM NSS - Order Ref. 21

24

17C824

BOLT 5

25

4E8

WASHER

26

63D8

NUT

27

6904114

INSTRUCTIONS

28

7139894

BOOM STOP KIT Ref. 29-32 - For S130

29

STOP NSS - Order Ref. 28

30

STOP NSS - Order Ref. 28

31

17C624

BOLT 5

32

4E6

WASHER

33

7025188

PICK, TRACTION

34

17C820

BOLT

35

17E8

WASHER
