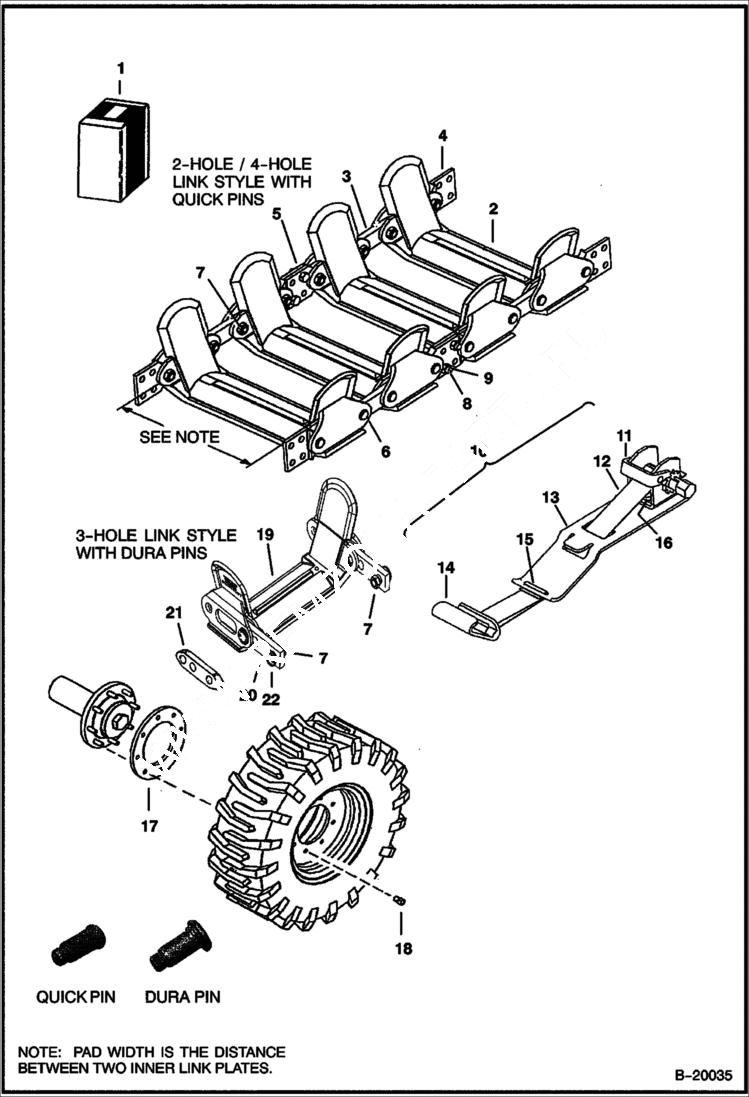

Запчасти Bobcat TRACKS TRACKS (Trail Blazer Series) (970, 974 & 975 Loaders) Loader

1

TRACK KIT SALES #6592764 - fits 970, 974, 975

2

650026L

PAD 15.5''(394mm) Heavy Link Style

3

650038L

LINK 2-hole - Regular Heavy - .625'' thick - 2.75'' hole center

4

LINK NLA - adjuster half, heavy - .625'' thick - Was 650040L - A

5

LINK2 NLA - adjuster assy - heavy - .625'' thick - Was 650042L - A

6

650044L

QUICK PIN Heavy Link Style

7

7028610

NUT Was 86D8 - B

8

18C716

BOLT

9

86D7

NUT

10

6590546

TOOL Installation

11

650055L

WINCH ASSY

12

650056L

WEBBING

13

650053L

BASE PLATE

14

650054L

HOOK

15

650052L

WEDGE

16

17C816

BOLT

16

85D8

NUT, 5

17

650019L

SPACER 970's - 1'' thick

18

650023L

REACH NUT 970's

19

PAD, ASSY TRACK HEAVY NLA - 15.5'' - Order 7028609 pad, (2) of Ref. 20 & (4) each of Ref. 7 & 22 - Was 6685058 - A

19

7028609

PAD, TRACK HEAVY

20

6685054

LINK, HD 3-HOLE STR. 3 - hole HD - 5/8'' thick

21

10 LINK, HD 3-HOLE CHFD NLA - chamfered - 3 hole hd - 5/8'' thick - Order Ref. 20 - Was 6685052 - A

22

6677680

DURA PIN 25 HD - 1.62'' long
