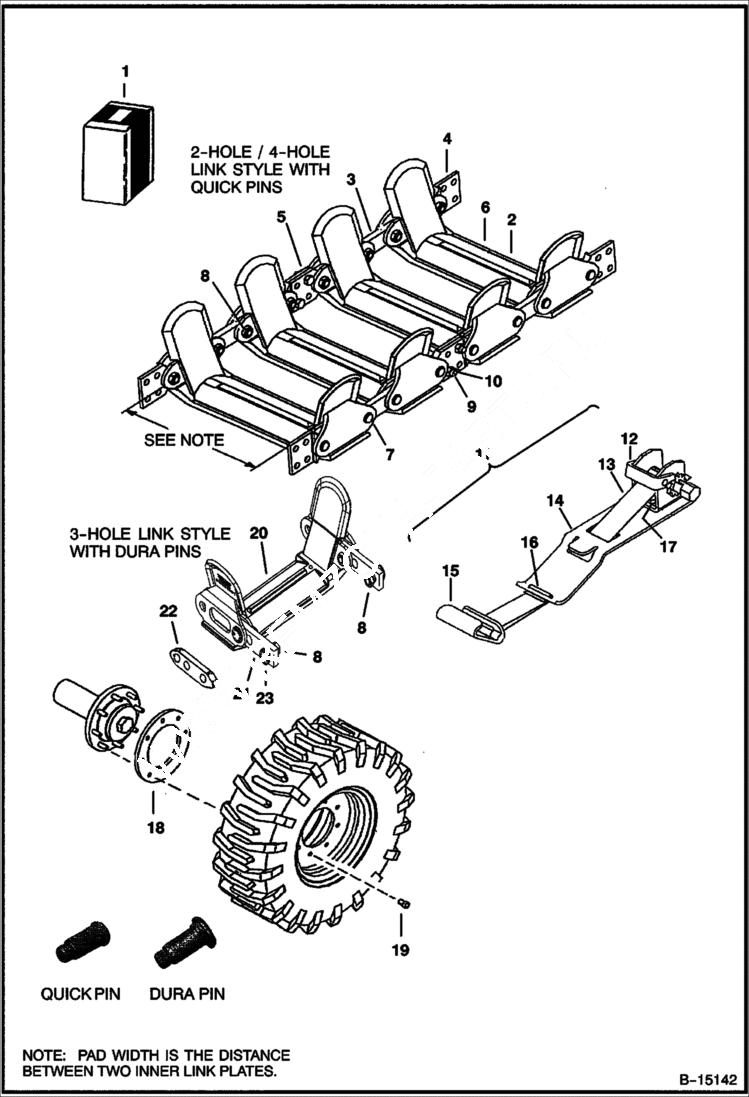

Запчасти Bobcat TRACKS TRACKS (Trail Blazer Series) (943, 953 & 963 Loaders) Loader

1

TRACK KIT SALES

2

650036L

PAD 13.7''(348mm) Heavy Link Style

3

650038L

LINK 2-hole - Regular Heavy - .625'' thick - 2.75'' hole centers

4

LINK NLA - adjuster half, heavy - .625'' thick - Was 650040L - A

5

LINK2 NLA - adjuster assy - heavy - .625'' thick - Was 650042L - A

6

650013L

EXTENSION Track - 1 pad - 13.7''(348mm)

7

650044L

QUICK PIN Heavy Link Style

8

86D8

NUT Was 8D000008B - B

9

18C716

BOLT

10

86D7

NUT

11

6590546

TOOL Installation

12

650055L

WINCH ASSY

13

650056L

WEBBING

14

650053L

BASE PLATE

15

650054L

HOOK

16

650052L

WEDGE

17

17C816

BOLT

17

85D8

NUT, 5

18

650016L

SPACER 943 & 953 - 1/4'' thick

18

650017L

SPACER 963 - 3/4'' thick

19

650023L

REACH NUT 963

20

6685057

PAD EXT HD 13.7 13.7'' w/hd 3-hole links & dura pins

21

6685054

LINK, HD 3-HOLE STR. 3 - hole HD - 5/8'' thick

22

10 LINK, HD 3-HOLE CHFD NLA - chamfered - 3 hole hd - 5/8'' thick - Order Ref. 21 - Was 6685052 - A

23

6677680

DURA PIN 25 HD - 1.62'' long
