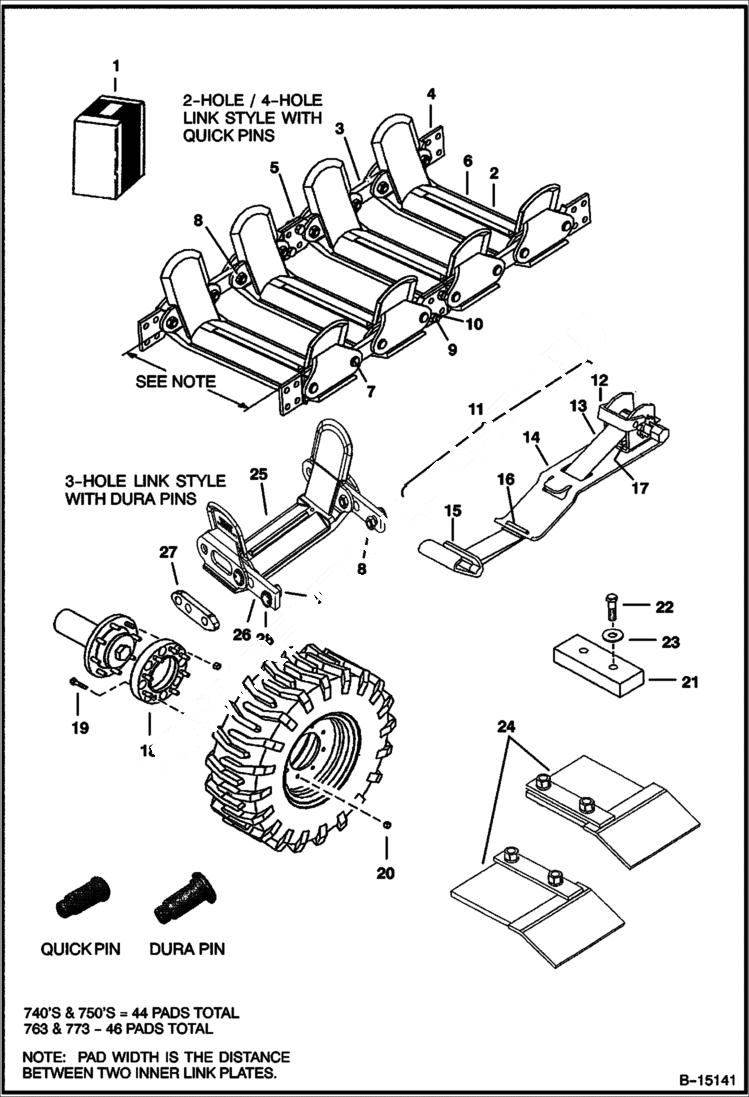

Запчасти Bobcat TRACKS TRACKS (Trail Blazer Series) (740s, 750s, 763, 7753 & 773 Loaders) Loader

1

TRACK KIT SALES

2

650031L

PAD 11.1''(282mm) Std. Link Style

2

650032L

PAD 11.1''(282mm) Heavy Link Style

2

650014L

PAD 8.25''(210mm) Std. Link Style - D Series - for 7.00-15 tire

3

650037L

LINK 2 hole - Regular Standard - .50'' thick - 2.75'' hole centers

3

650038L

LINK 2 hole - Regular Heavy - .625'' thick - 2.75'' hole centers

4

650039L

LINK Adjuster Half, Std. - .50'' thick

4

LINK NLA - adjuster half, heavy - .625'' thick - Was 650040L - A

5

650041L

LINK Adjuster Assy, Std. - .50'' thick

5

LINK2 NLA - adjuster assy - heavy - .625'' thick - Was 650042L - A

6

650048L

EXTENSION Track - 1 pad - 11.1''(282mm) - w/ mounting hardware

6

650049L

EXTENSION Track - 2 pad - 11.1''(282mm) - w/ mounting hardware

7

650043L

QUICK PIN Standard Link Style - 1.378''

7

650044L

QUICK PIN Heavy Link Style - 1.50''

8

86D8

NUT Was 8D000008B - B

9

18C716

BOLT

10

86D7

NUT

11

6590546

TOOL Installation

12

650055L

WINCH ASSY

13

650056L

WEBBING

14

650053L

BASE PLATE

15

650054L

HOOK

16

650052L

WEDGE

17

17C816

BOLT

17

85D8

NUT, 5

18

650022L

SPACER 1-1/2'' thick - 8 hole

18

6673872

SPACER, TRACK W/ 8 studs & 8 nuts - 2'' thick - 8 hole - used on 773G

19

650025L

WHEEL STUD 9/16'' x 1-7/8''

20

6564669

NUT, 10 9/16''

21

6562452

BOOM STOP 3/4'' thick

22

17C620

BOLT 3/8'' x 1-1/4''

23

25E17

WASHER 5

24

650030L

GUARD gusset - 773 & 7753 - Set of two

25

PAD EXT HD 11.1 NLA - 11.1'' HD-W/HD 3-hole links & dura pins - Order Ref. 2 (650031L pad), (2) of Ref. 26 (6685053 link) & (4) each of Ref. 8 & Ref. 28 (6677679 pin) - Was 6685055 - A

25

PAD NLA - 11.1'' std - W/ 3-hole links & dura pins - Order Ref. 2 (650031L pad), (2) of Ref. 26 (6685053 link) & (4) each of Ref. 8 & Ref. 28 (6677679 pin) - Was 6679276 - A

26

6685053

10 LINK, STD 3-HOLE STR. 10 3 - hole STD - 1/2'' thick

26

6685054

LINK, HD 3-HOLE STR. 3 - hole HD - 5/8'' thick

27

6679275

LINK chamfered - 3 hole std - 1/2'' thick

27

10 LINK, HD 3-HOLE CHFD NLA - chamfered - 3 hole hd - 5/8'' thick - Order Ref. 26 (6685054 link) - Was 6685052 - A

28

6677679

PIN, DURA ASSY 25 Standard Link - D Style - 1.50'' long

28

6677680

DURA PIN 25 Heavy Link - D Style - 1.62'' long
