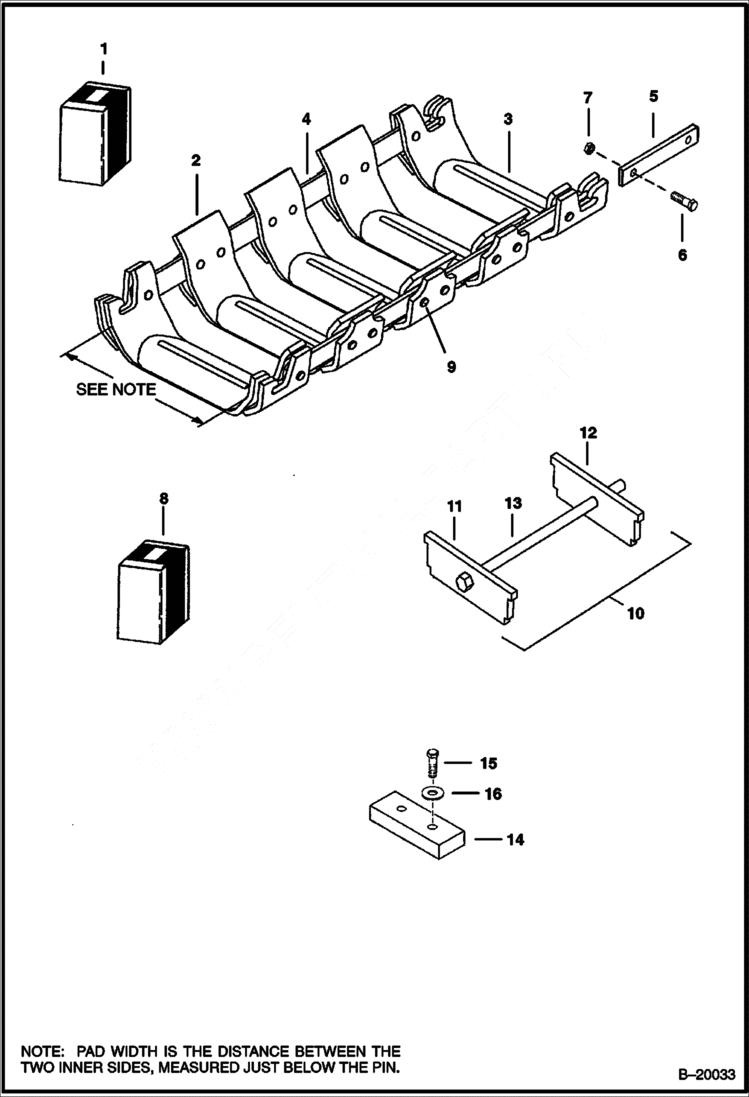

Запчасти Bobcat TRACKS TRACKS (L Series) (630, 640, 730 & 740 Series Loaders) Loader

1

TRACK KIT SALES

2

6505545

REGULAR PAD 7''(178mm)

2

6509701

REGULAR PAD 10''(254mm)

3

6508752

MASTER PAD 7''(178mm)

3

6509702

MASTER PAD 10''(254mm)

4

6508751

REGULAR LINK 3''(76mm) pin center

4

6540010

LINK 4''(101mm) pin center

5

6508744

LINK 2''(51mm) pin center

5

6508745

LINK 2-5/8''(67mm) pin center

5

6508746

LINK 3-1/4''(83mm) pin center

5

6508747

LINK 3-7/8''(98mm) pin center

5

6508748

LINK 4-1/2''(114mm) pin center

5

6508749

LINK 5-1/8''(130mm) pin center

5

6509707

LINK 5-3/4''(146mm) pin center

6

17C408

BOLT

7

85D4

NUT 5

8

650012L

PARTS KIT Contains 4 each of Ref. 5 and 8 each of Ref. 6 & 7

9

214118

PIN 3/8'' x 7/8''(9.5mm x 22.2mm)

9

650003L

PIN oversized

10

6505473

BINDER 7''(178mm) - W/Ref. 11, 12 & 13

10

6509704

BINDER ASSY 10''(254mm) - W/Ref. 11, 12 & 13

11

650005L

PLATE 7''(178mm) - drilled

11

6509706

PLATE 10''(254mm) - drilled

12

650008L

PLATE 7''(178mm) - tapped

12

6509705

PLATE 10''(254mm) - tapped

13

17C10208

BOLT

14

6562452

BOOM STOP 3/4'' thick

15

17C620

BOLT 3/8'' x 1-1/4''

16

25E17

WASHER 5
