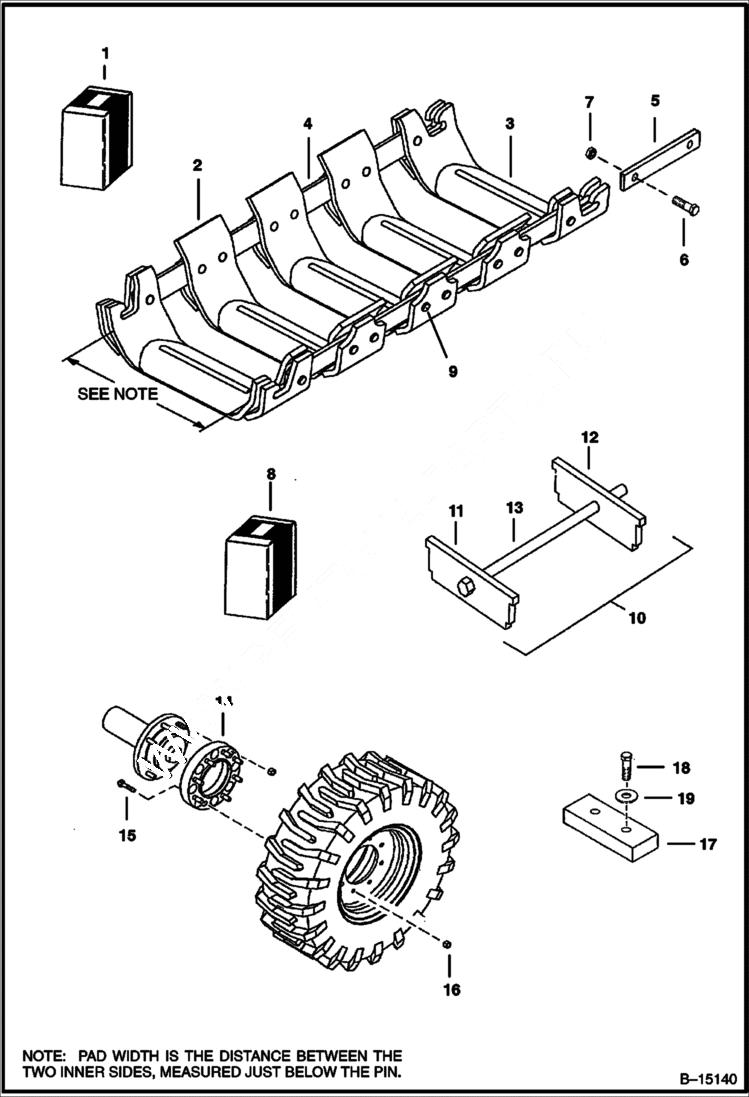

Запчасти Bobcat TRACKS TRACKS (L Series) (300-500 Series Loaders) Loader

1

TRACK KIT SALES

2

650001L

REGULAR PAD 6''(152mm)

2

6540008

PAD 8.5''(216mm)

3

650002L

MASTER PAD 6''(152mm)

3

6540009

PAD 8.5''(216mm)

4

6508751

REGULAR LINK 3''(76mm) pin center

4

6540010

LINK 4''(101mm) pin center

5

6508744

LINK 2''(51mm) pin center

5

6508745

LINK 2-5/8''(67mm) pin center

5

6508746

LINK 3-1/4''(83mm) pin center

5

6508747

LINK 3-7/8''(98mm) pin center

5

6508748

LINK 4-1/2''(114mm) pin center

5

6508749

LINK 5-1/8''(130mm) pin center

5

6509707

LINK 5-3/4''(146mm) pin center

6

17C408

BOLT

7

85D4

NUT 5

8

650012L

PARTS KIT Contains 4 each of Ref. 5 and 8 each of Ref. 6 & 7

9

214118

PIN 3/8'' x 7/8''(9.5mm x 22.2mm)

9

650003L

PIN oversized

10

650010L

BINDER ASSY 6''(152mm) - W/Ref. 11, 12, & 13

10

650011L

BINDER ASSY 8.5''(216mm) - W/Ref. 11, 12 & 13

11

650004L

PLATE 6''(152mm) - drilled

11

650006L

PLATE 8.5''(216mm) - drilled

12

650007L

PLATE 6''(152mm) - tapped

12

650009L

PLATE 8.5''(216mm) - tapped

13

17C10208

BOLT

14

650018L

SPACER 300's - 1'' thick - 5 hole

14

650021L

SPACER 540's & 553 - 1.5'' thick - 6 hole - 4.5'' collar

14

650020L

SPACER 543 without quick change hubs & 530's - 1.5'' thick - 6 hole - 4.625'' collar

15

650027L

WHEEL STUD 7/16'' x 1-7/16''

15

650025L

WHEEL STUD 9/16'' x 1-7/8''

16

650028L

WHEEL NUT 7/16''

16

6564669

NUT, 10 9/16''

17

6562452

BOOM STOP 440's & 450's - 3/4'' thick

17

650029L

BOOM STOP 530's, 540's & 553 - 1'' thick

18

17C620

BOLT 3/8'' x 1-1/4''

18

17C624

BOLT 5 3/8'' x 1-1/2''

19

25E17

WASHER 5
