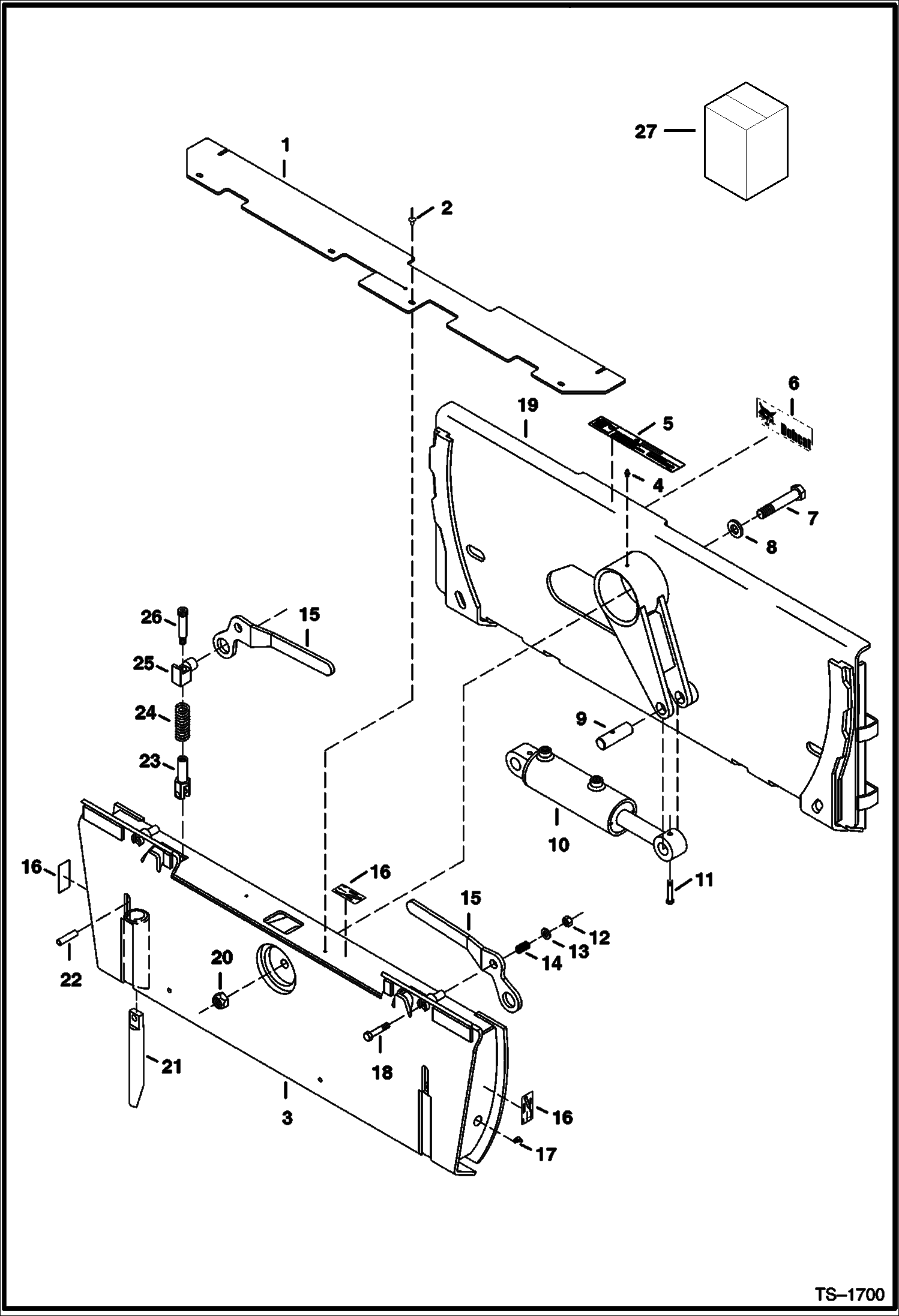

Запчасти Bobcat TILT-TATCH TILT-TATCH (6783) Loader

1

6673321

COVER

2

6657352

RIVET

3

6673327

PIVOT PLATE

4

10H35

FITTING, GREASE 10

5

6716425

DECAL, HAZARD TIPPING

6

6727324

DECAL, LOGO BOBCAT AND HEAD Was 6714353 - A

7

17C1260

BOLT

8

25E27

WASHER

9

6719528

PIN Was 6673320 - A

10

6675373

CYLINDER, TILT-TACH See Illustration TILT-TATCH/ TS1702 Was 6673323 - A

11

17C532

BOLT 5

12

85D6

NUT, 5

13

6557831

WASHER

14

6704453

SPRING

15

6719501

LEVER RH - Was 6673317 - A

15

6719502

LEVER LH - Was 6673318 - A

16

6673324

DECAL grease

17

12H15

FITTING, GREASE 5

18

17C644

BOLT

19

6673326

BACK PLATE

20

85D12

NUT, 5

21

6737191

WEDGE Was 6704242 - A

22

14J5032

PIN, STRAIGHT

23

6704248

PIVOT, WEDGE

24

6578253

SPRING, COMPRESSION Was 6562018 - A

25

6704240

PIVOT ASSY.

26

6728473

BOLT, SHOULDER pre-applied thread locker - Was 38C1036 - A
