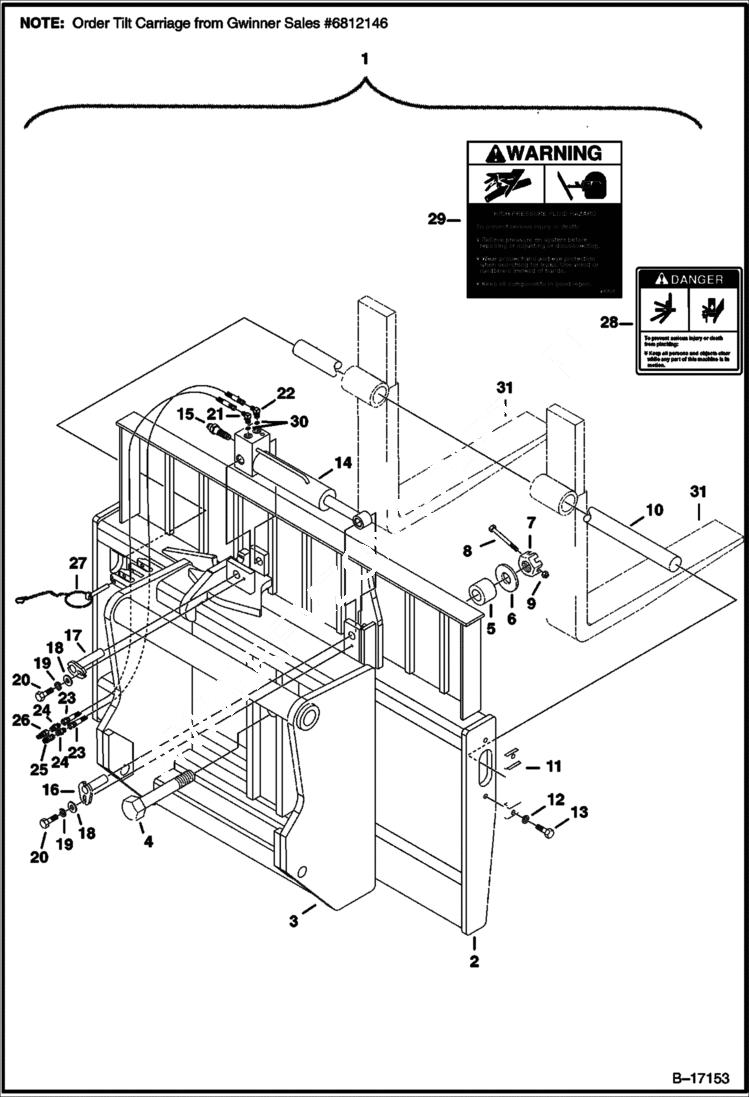

Запчасти Bobcat TILT CARRIAGE 60 TILT CARRIAGE (S/N 017600101 & Above) Телескопические мини-погрузчики

1

FRAME SALES - W/Ref. 2-29 - SEE NOTE

2

6680351

FRAME front

3

6680349

FRAME rear

4

6680393

BOLT

5

6680346

SPACER

6

WASHER NLA - Was 25E000039B - A

7

6680394

NUT

8

17C644

BOLT

9

59D6

NUT

10

6680352

PIN

11

6678174

RETAINER

12

4E8

WASHER

13

18C624

BOLT

14

6678186

CYLINDER See Illustration CYLINDER/ B16406

15

6679198

VALVE

16

6680345

PIN

17

6680344

PIN

18

25E17

WASHER 5

19

4E6

WASHER

20

17C616

BOLT 5

21

17KB0606

FITTING W/Ref. 29 - Was 17KV00005B - A

21

97K6

O RING flared end

22

6680395

ELBOW

23

6680347

HOSE

24

6578812

ADAPTER

25

6672960

COUPLER, FF FEMALE straight

26

6674688

COUPLER, FF MALE straight

27

6680396

PIN

28

6679183

DECAL pinch point

29

6679184

DECAL high pressure fluid

30

99K6

O RING

31

6677808

FORK 48'' low back

31

6677809

FORK 48'' high back
