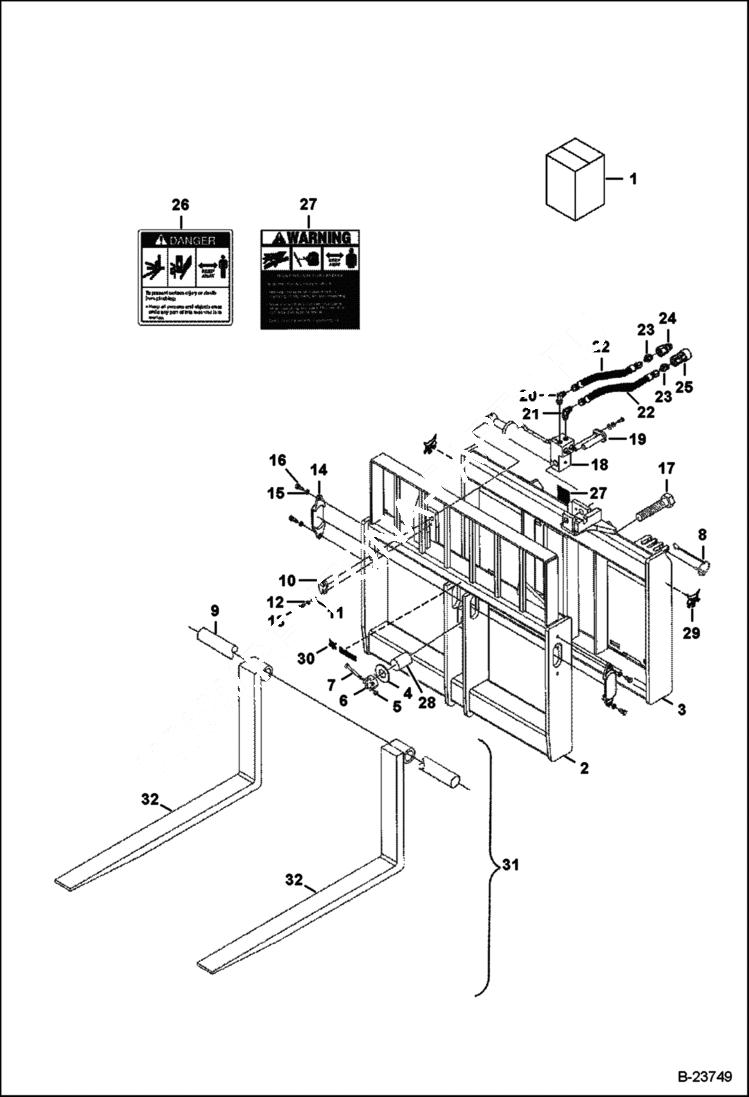

Запчасти Bobcat TILT CARRIAGE 48 TILT CARRIAGE (For V417) (S/N A85W 00101 & Abv) Телескопические мини-погрузчики

1

48'' TILT CARRIAGE SALES #7140720

2

6698323

FRAME, FRONT

3

6698322

FRAME, BOBTACH

4

6698319

WASHER

5

85D6

NUT, 5

6

6680394

NUT

7

17C644

BOLT

8

6680396

PIN

9

6680348

PIN 49.5'' (1257,3 mm) long

10

PIN, CYLINDER NLA - Was 6698320 - A

11

25E17

WASHER 5

12

4E6

WASHER

13

17C616

BOLT 5

14

6678174

RETAINER

15

4E8

WASHER

16

17C820

BOLT

17

6680393

BOLT

18

6678186

CYLINDER See Illustration CYLINDER/ B16406

19

6680344

PIN

20

6680395

ELBOW

21

17KB0606

FITTING

22

6698321

HOSE

23

6578812

ADAPTER

24

6674688

COUPLER, FF MALE straight

25

6672960

COUPLER, FF FEMALE straight

26

6679183

DECAL

27

6679184

DECAL

28

6680346

SPACER

29

6809228

DECAL

30

7109473

DECAL, LOGO BOBCAT AND HEAD

31

FORK SET SALES #6810301 - 48'' high back - set of (2) 6677809 forks

31

FORK SET SALES #6810302 - 48'' low back - set of (2) 6677808 forks

31

FORK SET SALES #7107163 - 60'' low back - set of (2) 6686876 forks

31

FORK SET SALES #7145005 - brick/block V/H - set of (2) 7141767 forks

32

6677809

FORK 48'' high back - one fork only

32

6677808

FORK 48'' low back - one fork only

32

6686876

FORK 60'' low back - one fork only

32

7141767

FORK, BRICK BLOCK V/H brick/block V/H - one fork only
