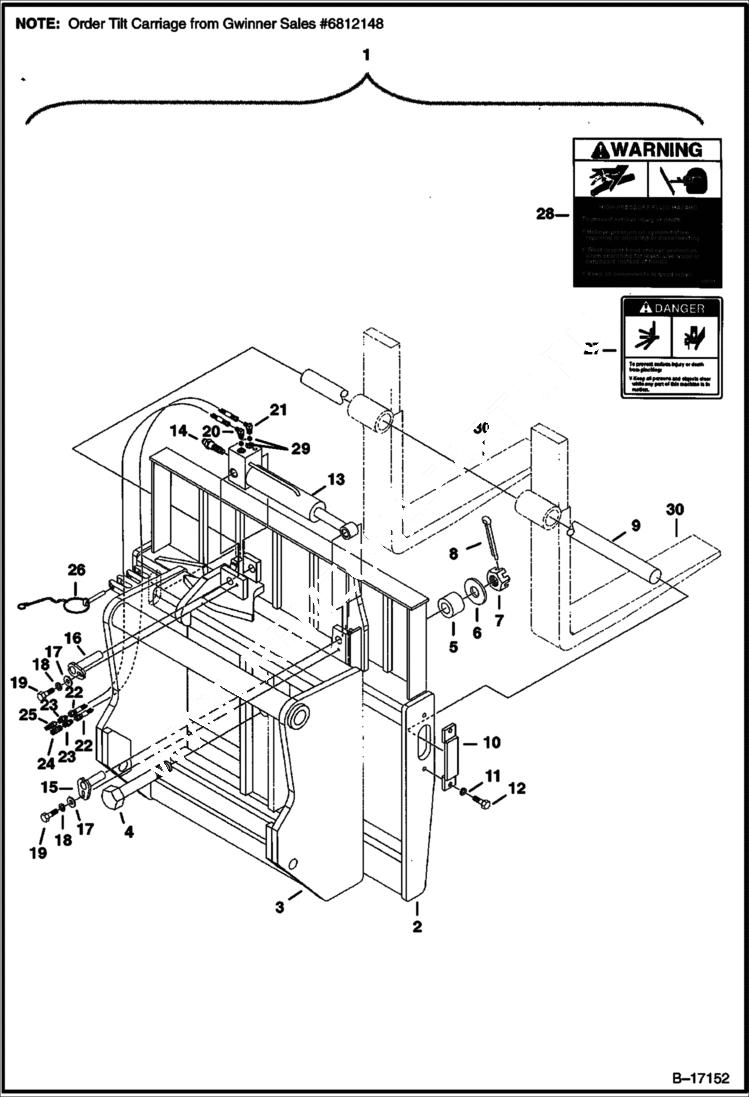

Запчасти Bobcat TILT CARRIAGE 48 TILT CARRIAGE (S/N 017700101 & Above) Телескопические мини-погрузчики

1

TILT CARRIAGE SALES - W/Ref. 2-28 - SEE NOTE

2

6680350

FRAME front

3

6680349

FRAME rear

4

6680393

BOLT

5

6680346

SPACER

6

WASHER NLA - Was 25E000039B - A

7

6680394

NUT

8

6680392

PIN

9

6680348

PIN 49.5'' (1257,3 mm) long

10

6678174

RETAINER

11

4E8

WASHER

12

18C624

BOLT

13

6678186

CYLINDER See Illustration CYLINDER/ B16406

14

6679198

VALVE

15

6680345

PIN

16

6680344

PIN

17

25E17

WASHER 5

18

4E6

WASHER

19

17C616

BOLT 5

20

17KB0606

FITTING W/Ref. 29 - Was 17KV00005B - A

20

97K6

O RING flared end

21

6680395

ELBOW

22

6680347

HOSE

23

6578812

ADAPTER

24

6672960

COUPLER, FF FEMALE straight

25

6674688

COUPLER, FF MALE straight

26

6680396

PIN

27

6679183

DECAL pinch point

28

6679184

DECAL high pressure fluid

29

99K6

O RING

30

6677808

FORK 48'' low back

30

6677809

FORK 48'' high back
