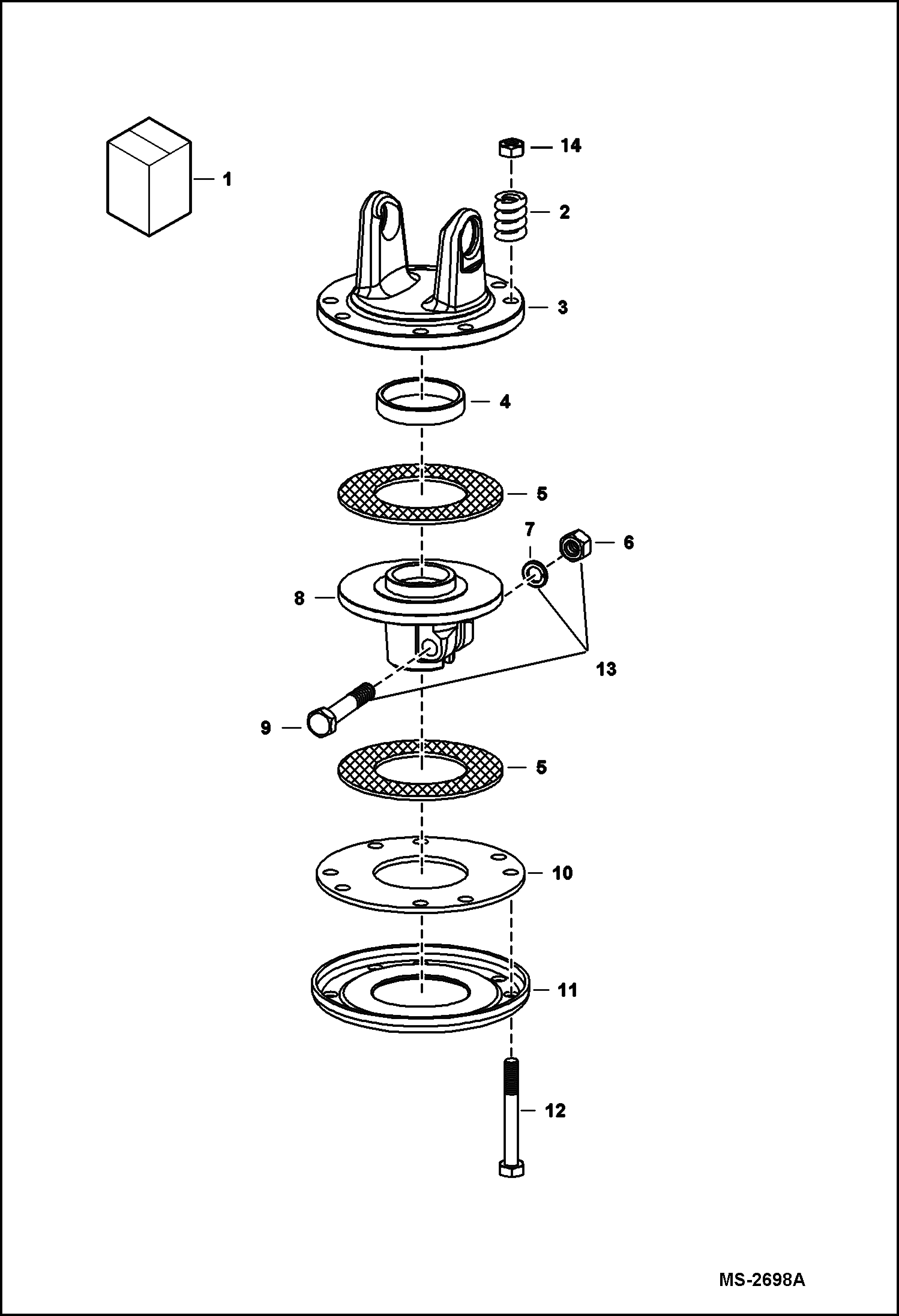

Запчасти Bobcat TILLER TILLER (Clutch) (3TIL74 ADL4) Компактные тракторы

1

7001375

CLUTCH, ASSY W/Ref 2 - 14

2

7001233

SPRING, COMPRESSION

3

7001389

FLANGE

4

7001390

BUSHING

5

7001391

DISC, FRICTION

6

7001237

NUT

7

7001238

WASHER

8

7001392

HUB

9

7001393

BOLT

10

7001394

PLATE, DISC

11

7001395

PLATE, PRESSURE

12

7001396

BOLT

13

7001397

KIT, BOLT W/Qty. (2) each of Ref 6, 7 & 9

14

7001232

NUT
