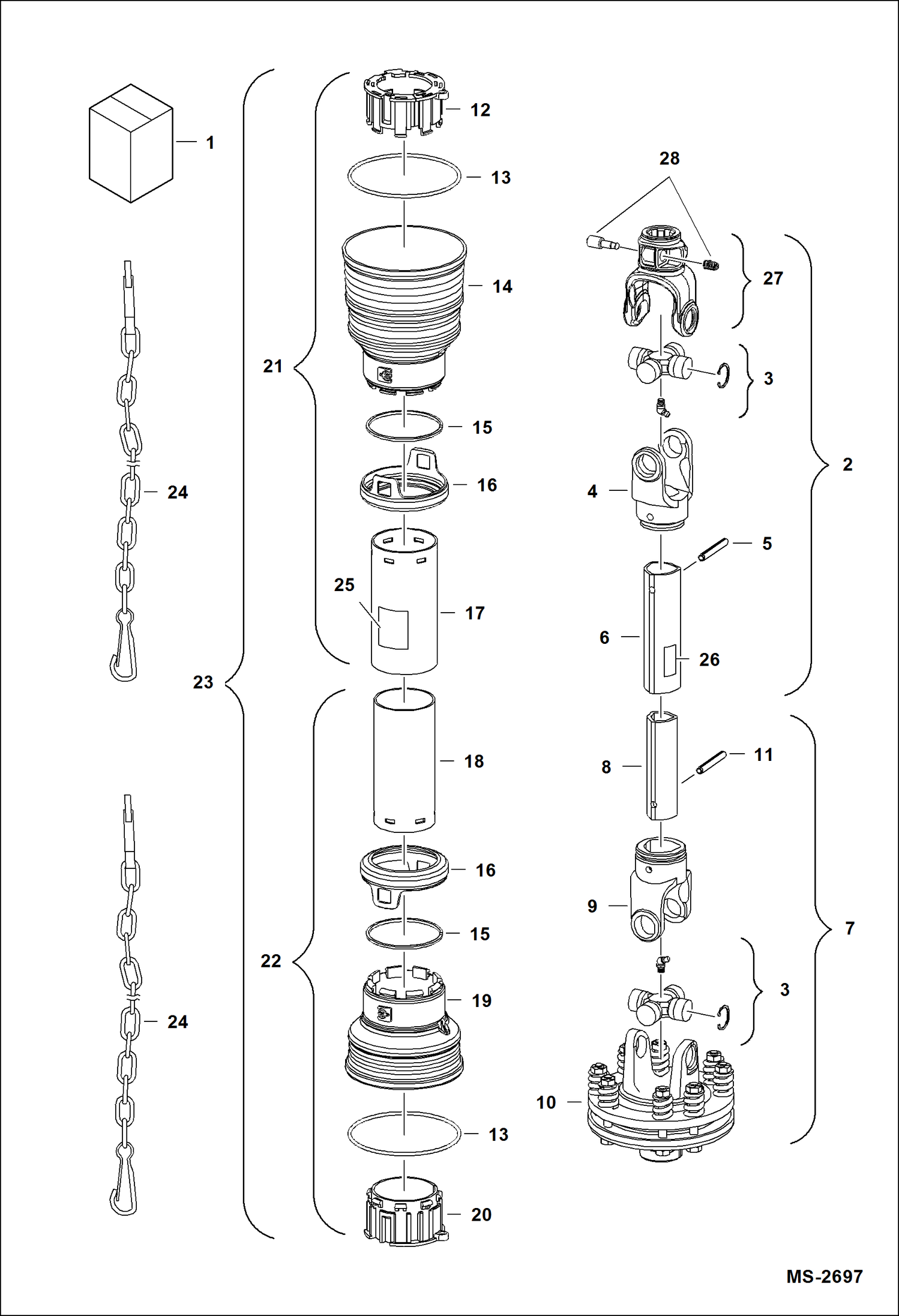

Запчасти Bobcat TILLER TILLER (PTO Shaft) (3TIL74 ADL4) Компактные тракторы

1

7001364

SHAFT, PTO ASSY W/Ref 2 - 28

2

SHAFT, U-JOINT NSS - Order Ref. 1 - outer half assembly - W/Ref. 3-6 & 26-28 - Was 7001365 - A

3

7001368

CROSS, U-JOINT

4

7001369

U-JOINT outer

5

7001370

PIN outer

6

7001371

SHAFT, U-JOINT outer

7

SHAFT, U-JOINT NSS - Order Ref. 1 - inner half assembly - W/Ref. 3 & 8-11 - Was 7001372 - A

8

7001373

SHAFT, U-JOINT inner

9

7001374

U-JOINT inner

10

7001375

CLUTCH, ASSY See Illustration TILLER/ MS2698A

11

7001376

PIN inner

12

7001377

BEARING outer

13

7001378

RING, SUPPORT

14

7001379

CONE, U-JOINT outer

15

7001380

RING, STOP

16

7001381

SLEEVE, SAFETY

17

7001382

SHIELD, SHAFT outer

18

7001383

SHIELD, SHAFT inner

19

7001384

CONE, U-JOINT inner

20

7001385

BEARING inner

21

SHIELD, ASSY NSS - Order Ref. 1 - outer half assembly - W/Ref 12-17 - Was 7001386 - A

22

SHIELD, ASSY NSS - Order Ref. 1 - inner half assembly - W/Ref. 13, 15, 16, 18, 19 & 20 - Was 7001387 - A

23

7001388

SHIELD, ASSY complete shield assembly - W/Ref 21 & 22

24

7001229

CHAIN, SAFETY

25

7001230

DECAL, WARNING

26

7001231

DECAL, WARNING

27

7001366

U-JOINT outer - W/Ref 28

28

7001367

KIT, PIN
