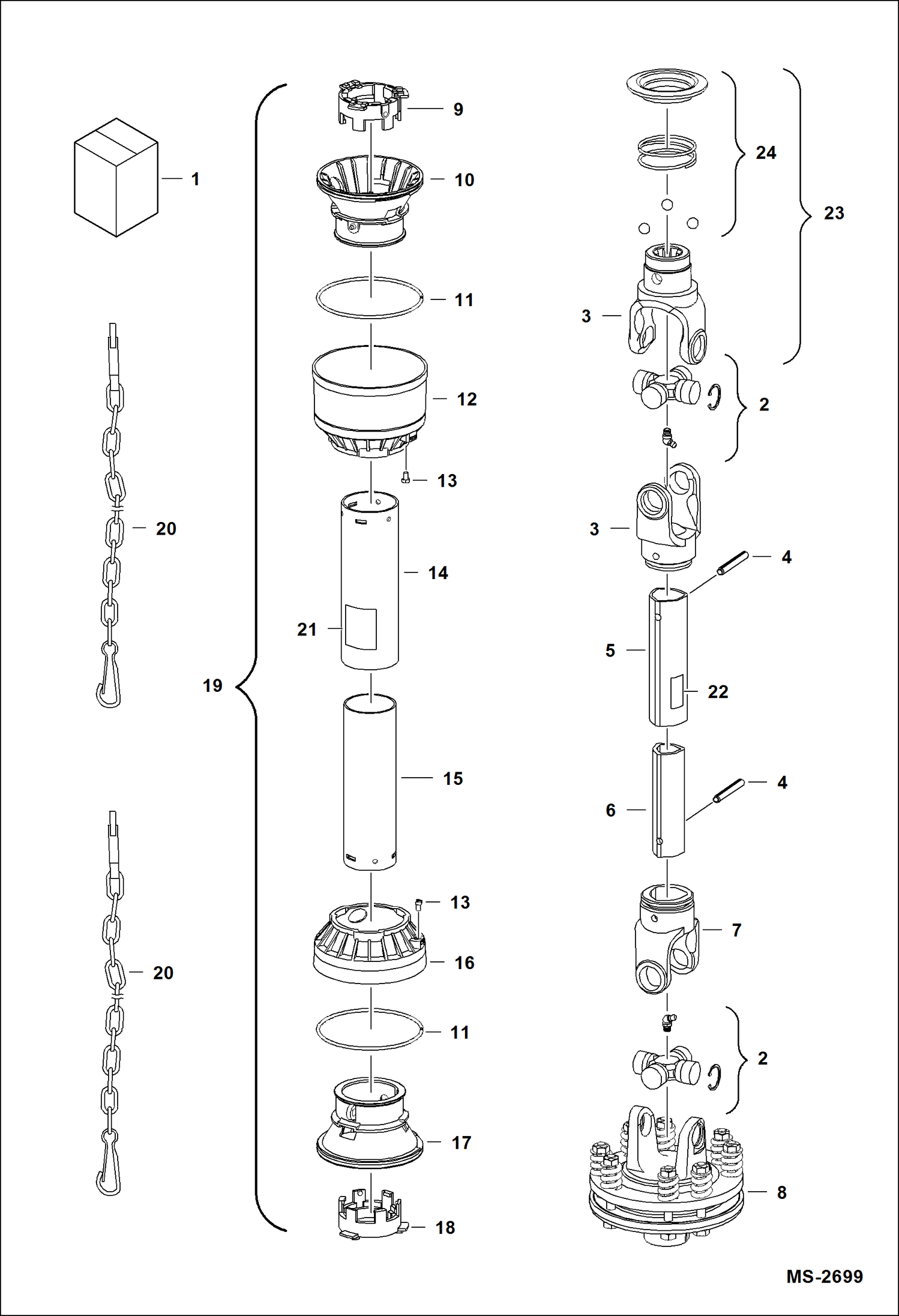

Запчасти Bobcat TILLER TILLER (PTO Shaft) (3TIL48 ADL7) (3TIL60 ADKY) Компактные тракторы

1

7001208

SHAFT, PTO ASSY W/Ref 2 - 24

2

7001211

CROSS, U-JOINT

3

7001212

U-JOINT outer

4

7001213

PIN

5

7001214

SHAFT, U-JOINT outer

6

7001215

SHAFT, U-JOINT inner

7

7001216

U-JOINT inner

8

7001217

CLUTCH, ASSY See Illustration TILLER/ MS2698

9

7001218

BEARING outer

10

7001219

CONE, U-JOINT outer

11

7001220

RING, SUPPORT

12

7001221

CONE, U-JOINT outer

13

7001222

PIN

14

7001223

SHIELD, SHAFT outer

15

7001224

SHIELD, SHAFT inner

16

7001225

CONE, U-JOINT inner

17

7001226

CONE, U-JOINT inner

18

7001227

BEARING inner

19

7001228

SHIELD, ASSY complete shield assembly - W/Ref 9-18 & 21

20

7001229

CHAIN, SAFETY antirotation

21

7001230

DECAL, WARNING outer

22

7001231

DECAL, WARNING inner

23

7001209

U-JOINT assy - outer - W/Ref 24

24

7001210

KIT, COLLAR
