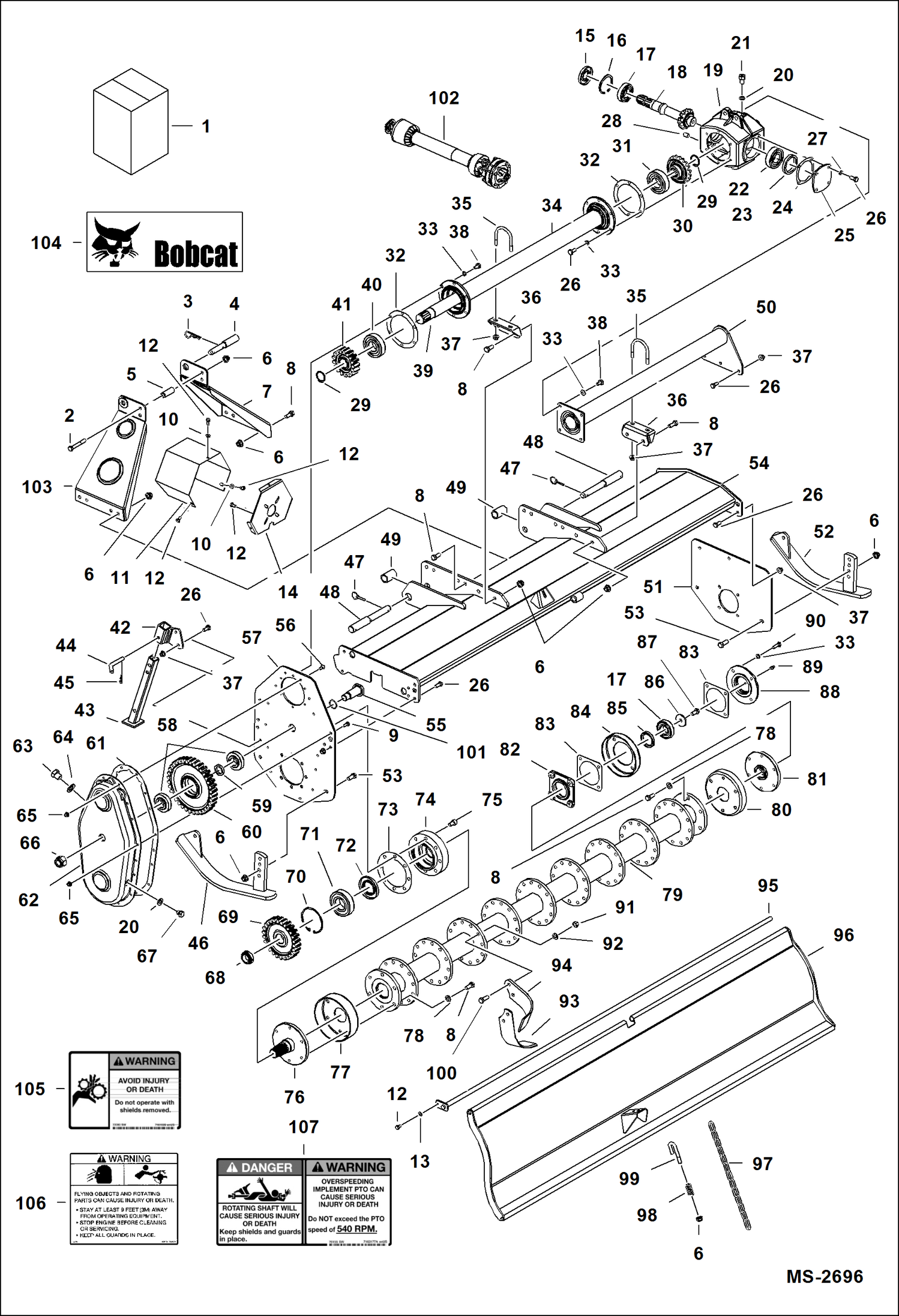

Запчасти Bobcat TILLER TILLER (3TIL74 ADL4) Компактные тракторы

1

Tiller 3pt 72'' - Model 3TIL72 SALES #7162898

2

1CM1280

BOLT

3

7001186

PIN

4

7001298

PIN

5

7001299

SPACER

6

51DM12

NUT

7

7001300

BRACKET RH

8

1CM1230

BOLT

9

1CM820

BOLT

10

7001149

WASHER

11

7001301

COVER, SHAFT

12

1CM816

BOLT

13

15EM80

WASHER

14

7001302

SUPPORT

15

7001303

SEAL, OIL

16

7001304

RING, RETAINER

17

7001171

BEARING

18

7001305

GEAR, BEVEL

19

7001306

HOUSING, GEARBOX

20

15EM140

WASHER

21

7001307

PLUG

22

7001259

BEARING

23

7001308

SPACER

24

7001309

GASKET

25

7001310

PLATE, END

26

1CM1025

BOLT

27

15EM100

WASHER

28

7001163

PLUG

29

7001294

RING, RETAINER

30

7001311

GEAR, BEVEL

31

7001312

BEARING

32

7001313

GASKET

33

7001168

WASHER

34

7001314

HOUSING, SHAFT

35

7001315

U-BOLT

36

7001316

BRACKET

37

51DM10

NUT

38

1CM1020

BOLT

39

7001317

SHAFT, DRIVE

40

7001318

BEARING

41

7001319

GEAR, DRIVE

42

7001175

MOUNT, LEG

43

7001173

SUPPORT, LEG

44

7001174

PIN

45

7001176

PIN

46

7001320

SKID, SHOE

47

7001266

PIN

48

7001321

PIN

49

7001322

SPACER

50

7001323

SUPPORT

51

7001324

PLATE, SIDE

52

7001325

SKID, SHOE

53

1CM1235

BOLT

54

7001326

FRAME, MAIN ASSY

55

7001327

PIN

56

1CM820

BOLT

57

7001328

PLATE, SIDE

58

7001329

BEARING

59

7001330

SPACER

60

7001331

GEAR, INTERMEDIATE

61

7001332

GASKET

62

7001333

COVER, DRIVE

63

7001180

PLUG

64

1EM220

WASHER

65

51DM8

NUT

66

7001334

NUT

67

7001163

PLUG

68

7001335

NUT

69

7001336

GEAR, DRIVEN

70

7001337

RING, RETAINER

71

7001338

BEARING

72

7001339

SEAL, OIL

73

7001340

GASKET

74

7001341

FLANGE

75

7001342

BOLT

76

7001343

HUB

77

7001344

COVER, DUST

78

7001345

WASHER

79

7001346

SHAFT, ROTOR

80

7001347

COVER, DUST

81

7001348

HUB

82

7001349

FLANGE

83

7001350

GASKET

84

7001351

SEAL

85

7001352

SEAL, OIL

86

7001353

WASHER

87

7001354

BOLT

88

7001355

FLANGE

89

7001191

FITTING, GREASE

90

1CM1030

BOLT

91

7001202

NUT

92

7001201

WASHER

93

7001356

TINE, TILLER

94

7001357

TINE, TILLER

95

7001358

ROD

96

7001359

COVER, REAR

97

7001360

CHAIN

98

7001361

SPRING

99

7001362

HOOK

100

7001198

BOLT

101

7001363

O-RING

102

7001364

SHAFT, PTO ASSY See Illustration TILLER/ MS2697

103

7001297

BRACKET LH

104

6809831

DECAL, LOGO BOBCAT AND HEAD

105

7161599

DECAL, WARNING See Illustration TILLER/ NA6418

106

6708822

DECAL, WARNING See Illustration TILLER/ NA6418

106

7130144

DECAL, WARNING See Illustration TILLER/ NA6418 - no-text

107

7163177

DECAL, WARNING See Illustration TILLER/ NA6418 - danger/warning
