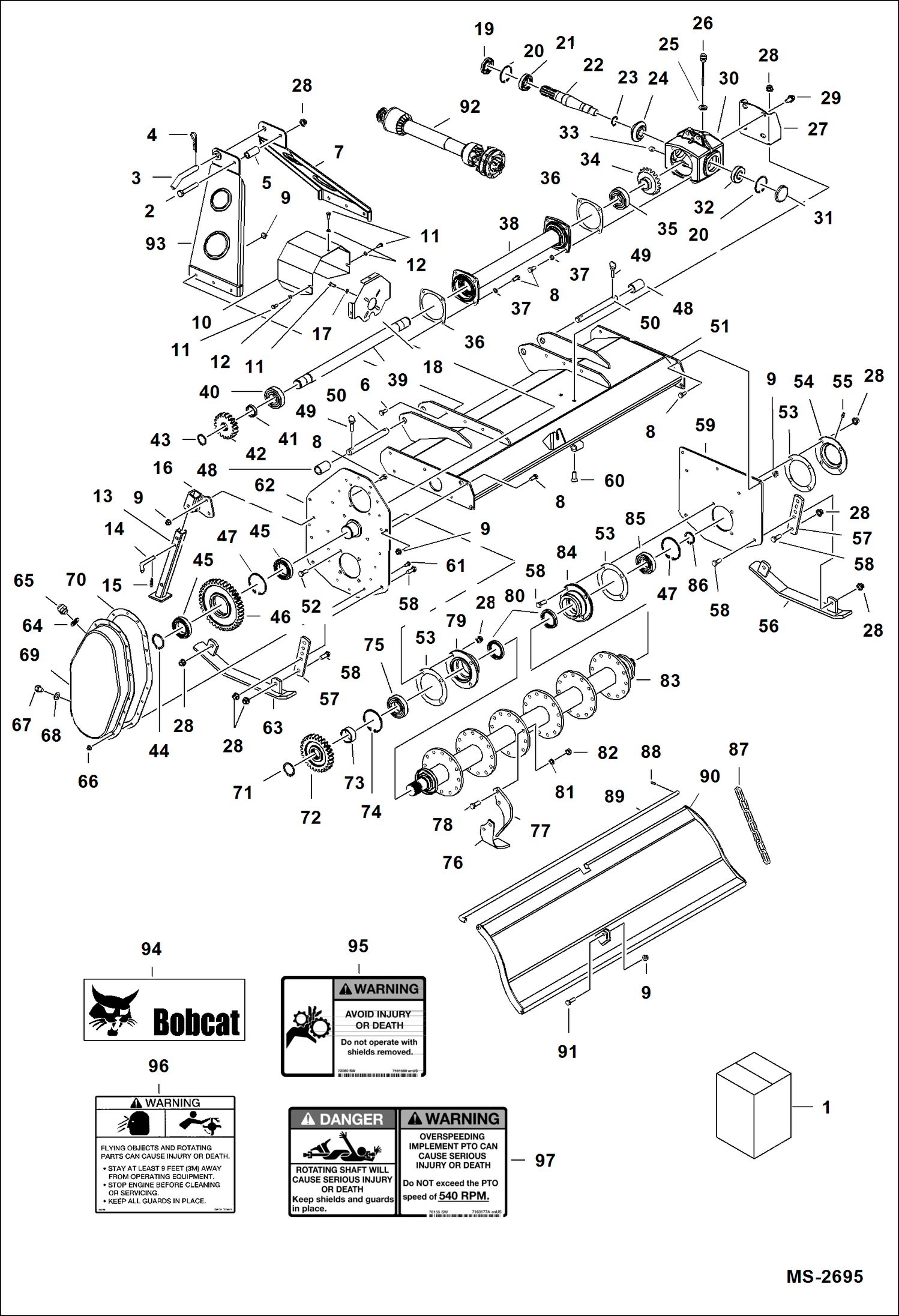

Запчасти Bobcat TILLER TILLER (3TIL60 ADKY) Компактные тракторы

1

Tiller 3pt 60'' - Model 3TIL60 SALES #7162855

2

1CM1290

SCREW

3

7001246

PIN

4

7001186

PIN

5

7001147

SPACER

6

1CM1030

BOLT

7

7001247

BRACKET RH

8

1CM1025

BOLT

9

51DM10

NUT

10

7001150

COVER, SHAFT

11

1CM816

BOLT

12

7001149

WASHER

13

7001173

SUPPORT, LEG

14

7001174

PIN

15

7001176

PIN

16

7001175

MOUNT, LEG

17

15EM80

WASHER

18

7001151

SUPPORT

19

7001152

SEAL, OIL

20

7001153

RING, RETAINER

21

7001154

BEARING

22

7001248

SHAFT, GEARBOX INPUT

23

7001156

RING, RETAINER

24

7001249

GEAR, PINION

25

15EM160

WASHERS

26

7001250

PLUG

27

7001251

BRACKET

28

51DM12

NUT

29

29CM1225

BOLT

30

7001252

HOUSING, GEARBOX

31

7001161

CAP, END

32

7001160

BEARING

33

7001253

PLUG

34

7001254

GEAR, BEVEL

35

7001255

BEARING

36

7001256

GASKET

37

7001168

WASHER

38

7001257

HOUSING, SHAFT

39

7001258

SHAFT, DRIVE

40

7001259

BEARING

41

7001260

SPACER

42

7001261

GEAR, DRIVE

43

7001164

RING, RETAINER

44

7001262

RING, RETAINER

45

7001263

BEARING

46

7001264

GEAR, INTERMEDIATE

47

7001265

RING, RETAINER

48

7001188

SPACER

49

7001266

PIN

50

7001267

PIN

51

7001268

FRAME, MAIN ASSY

52

7001270

BOLT

53

7001271

GASKET

54

7001272

FLANGE

55

7001191

FITTING, GREASE

56

7001273

SKID, SHOE

57

7001274

BRACKET

58

1CM1235

BOLT

59

7001275

PLATE, SIDE

60

7001276

BOLT

61

1CM820

BOLT

62

7001277

PLATE, SIDE

63

7001278

SKID, SHOE

64

1EM220

WASHER

65

7001180

PLUG

66

51DM8

NUT

67

7001163

PLUG

68

15EM140

WASHER

69

7001279

COVER, DRIVE

70

7001280

GASKET

71

7001281

RING, RETAINER

72

7001282

GEAR, DRIVEN

73

7001283

SPACER

74

7001284

RING, RETAINER

75

7001285

BEARING

76

7001286

TINE, TILLER

77

7001287

TINE, TILLER

78

7001198

BOLT

79

7001288

FLANGE

80

7001289

SEAL, OIL

81

7001201

WASHER

82

7001202

NUT

83

7001291

SHAFT, ROTOR

84

7001292

FLANGE

85

7001293

BEARING

86

7001294

RING, RETAINER

87

7001207

CHAIN

88

7001205

PIN

89

7001295

ROD

90

7001296

COVER, REAR

91

1CM1035

BOLT

92

7001208

SHAFT, PTO ASSY See Illustration TILLER/ MS2699

93

7001245

BRACKET LH

94

6809831

DECAL, LOGO BOBCAT AND HEAD

95

7161599

DECAL, WARNING See Illustration TILLER/ NA6418

96

6708822

DECAL, WARNING See Illustration TILLER/ NA6418

96

7130144

DECAL, WARNING See Illustration TILLER/ NA6418 - no-text

97

7163177

DECAL, WARNING See Illustration TILLER/ NA6418 - danger/warning
