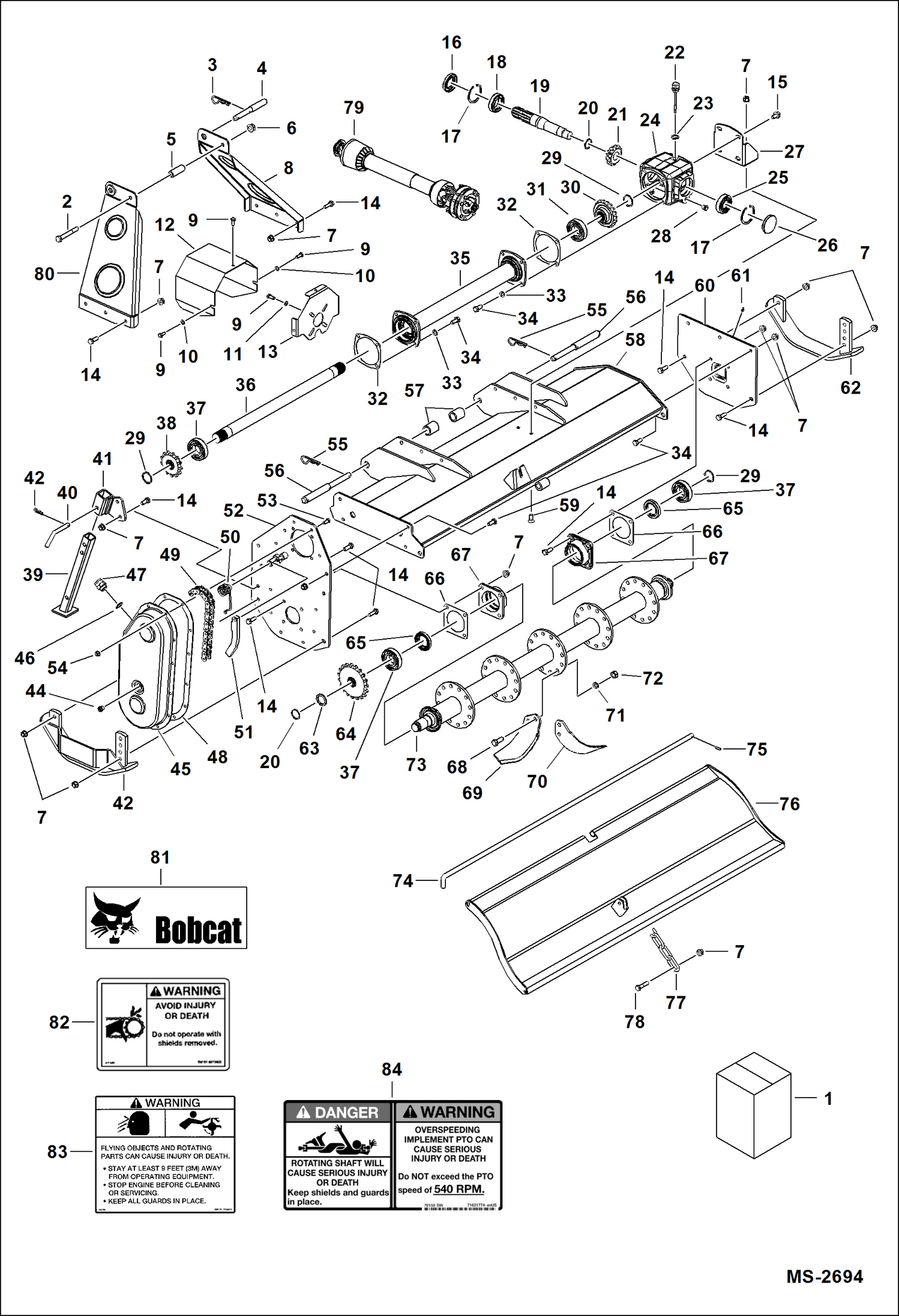

Запчасти Bobcat TILLER TILLER (3TIL48 ADL7) Компактные тракторы

1

Tiller 3pt 48'' - Model 3TIL48 SALES #7162905

2

1CM1280

BOLT

3

7001145

PIN

4

7001146

PIN

5

7001147

SPACER

6

51DM12

NUT

7

51DM10

NUT

8

7001148

BRACKET RH

9

1CM816

BOLT

10

7001149

WASHER

11

15EM80

WASHER

12

7001150

COVER, SHAFT

13

7001151

SUPPORT

14

1CM1030

BOLT

15

29CM1025

BOLT

16

7001152

SEAL, OIL

17

7001153

RING, RETAINER

18

7001154

BEARING

19

7001155

SHAFT, GEARBOX INPUT

20

7001156

RING, RETAINER

21

7001157

GEAR, PINION

22

7001158

PLUG

23

15EM160

WASHERS

24

7001159

HOUSING, GEARBOX

25

7001160

BEARING

26

7001161

CAP, END

27

7001162

BRACKET

28

7001163

PLUG

29

7001164

RING, RETAINER

30

7001165

GEAR, BEVEL

31

7001166

BEARING

32

7001167

GASKET

33

7001168

WASHER

34

1CM1025

BOLT

35

7001169

HOUSING, SHAFT

36

7001170

SHAFT, DRIVE

37

7001171

BEARING

38

7001172

GEAR, DRIVE

39

7001173

SUPPORT, LEG

40

7001174

PIN

41

7001175

MOUNT, LEG

42

7001176

PIN

43

7001177

SKID, SHOE LH

44

7001178

PLUG sight glass

45

7001179

COVER, DRIVE

46

1EM220

WASHER

47

7001180

PLUG

48

7001181

GASKET

49

7001182

CHAIN, DRIVE

50

7001183

SPRING

51

7001184

LEVER

52

7001185

PLATE, SIDE

53

1CM820

BOLT

54

51DM8

NUT

55

7001186

PIN

56

7001187

PIN

57

7001188

SPACER

58

7001189

FRAME, MAIN ASSY

59

1CM1030

BOLT

60

7001190

PLATE, SIDE

61

7001191

FITTING, GREASE

62

7001192

SKID, SHOE RH

63

7001193

SHIM

64

7001194

GEAR, DRIVEN

65

7001195

SEAL, OIL

66

7001196

GASKET

67

7001197

FLANGE

68

7001198

BOLT

69

7001199

TINE, TILLER left curve

70

7001200

TINE, TILLER right curve

71

7001201

WASHER

72

7001202

NUT

73

7001203

SHAFT, ROTOR

74

7001204

ROD

75

7001205

PIN

76

7001206

COVER, REAR

77

7001207

CHAIN

78

1CM1035

BOLT

79

7001208

SHAFT, PTO ASSY See Illustration TILLER/ MS2699

80

7001144

BRACKET LH

81

6809831

DECAL, LOGO BOBCAT AND HEAD

82

6673400

DECAL, WARNING See Illustration TILLER/ NA6418

82

7130140

DECAL, WARNING See Illustration TILLER/ NA6418 - no-text

83

6708822

DECAL, WARNING See Illustration TILLER/ NA6418

83

7130144

DECAL, WARNING See Illustration TILLER/ NA6418 - no-text

84

7163177

DECAL, WARNING
