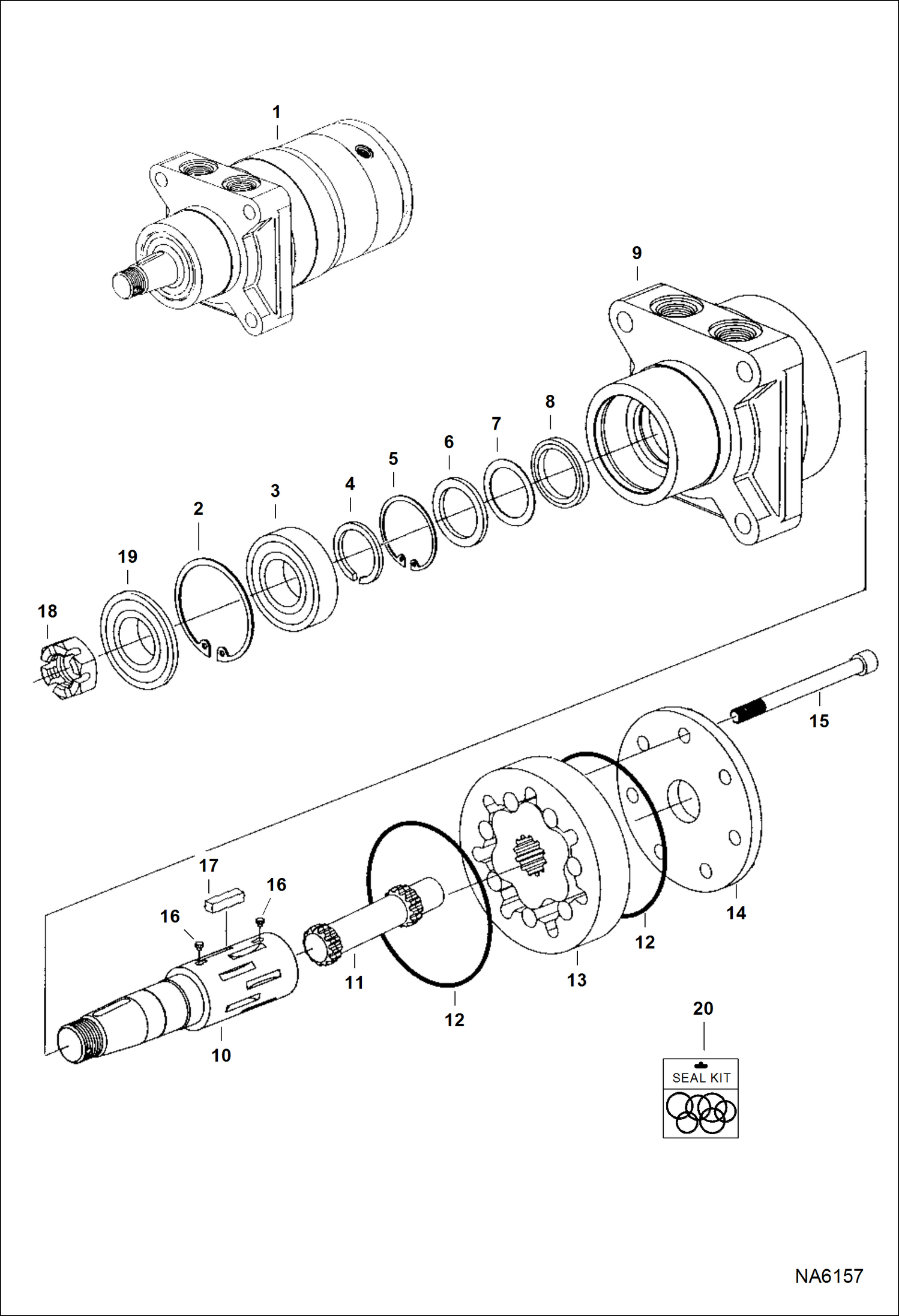

Запчасти Bobcat TILLER TILLER (Motor) (40 APFW) Loader

1

7194813

MOTOR Ref. 2-19 - Model 162-1336-004

2

6684018

RING retaining

3

6684019

BEARING

4

6684020

RING retaining

5

6684021

RING retaining

6

6684022

WASHER

7

6659511

BACKUP RING

8

6689096

SEAL

9

7022640

HOUSING, MOTOR

10

6689063

SHAFT, OUTPUT Was 7022641 - A

11

6684026

DRIVE

12

6684027

SEAL

13

6684029

GEROLER

14

6689064

END CAP

15

6684031

BOLT

16

6689065

POPPET

17

6689066

KEY

18

7155370

NUT, SLOTTED

19

7022643

SEAL

20

7022639

KIT, SEAL Ref. 2-8, 12 & 19
