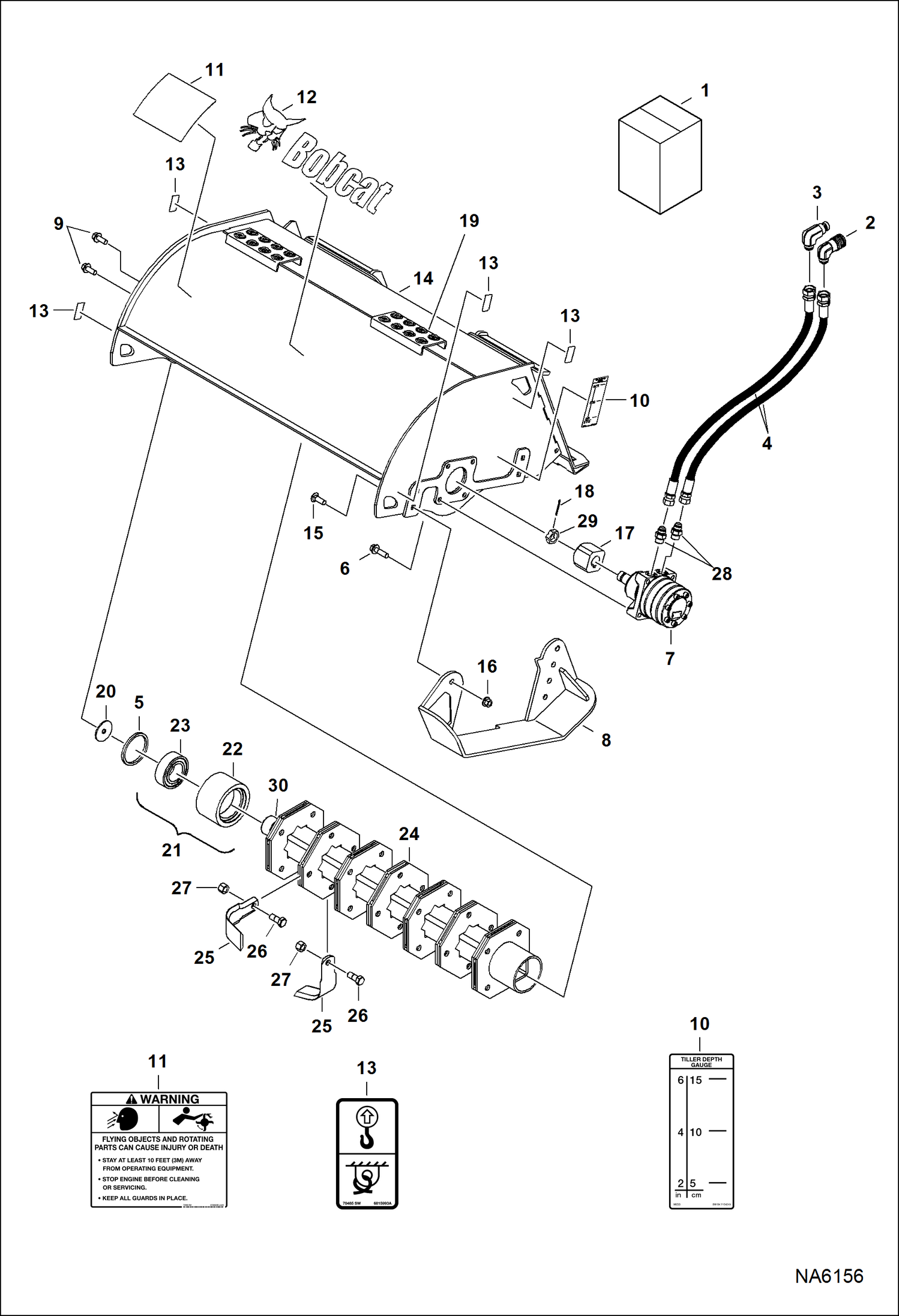

Запчасти Bobcat TILLER TILLER (Main Frame) (40 APFW) Loader

1

40'' TILLER SALES #7196028 - Ref. 2-29

2

7168433

COUPLER, FF FEMALE

3

7168432

COUPLER, FF MALE

4

7194818

HOSE, HYD

5

7106806

SPACER bearing

6

31C828

BOLT

7

MOTOR See Illustration TILLER/ NA6157 - W/Ref. 29

8

7101743

SKID SHOE

9

31C820

BOLT

10

7104015

DECAL, DEPTH See Illustration TILLER/ NA6246

10

7130155

DECAL, DEPTH See Illustration TILLER/ NA6246 - no-text

11

6708822

DECAL, WARNING See Illustration TILLER/ NA6246

11

7130144

DECAL, WARNING See Illustration TILLER/ NA6246 - no-text

12

6809831

DECAL, LOGO BOBCAT AND HEAD

13

6815993

DECAL, LIFT tie down

14

7194806

FRAME 1016 mm (40'')

15

37C824

BOLT

16

83D8

NUT 5

17

7194817

BLOCK, DRIVE MOTOR

18

1F424

PIN

19

6905990

STEP

20

7103478

WASHER

21

7103468

RETAINER ASSY Ref. 22 & 23

22

RETAINER NSS - retainer only - Order Ref. 21 retainer assy - Was 7101741 - A

23

6576155

BEARING

24

7194811

SHAFT 1016 mm (40'')

25

6664495

TINE

26

6664527

BOLT

27

87D10

NUT

28

15KB1010

FITTING, HYD CONNECTOR

29

NUT See Illustration TILLER/ NA6157
