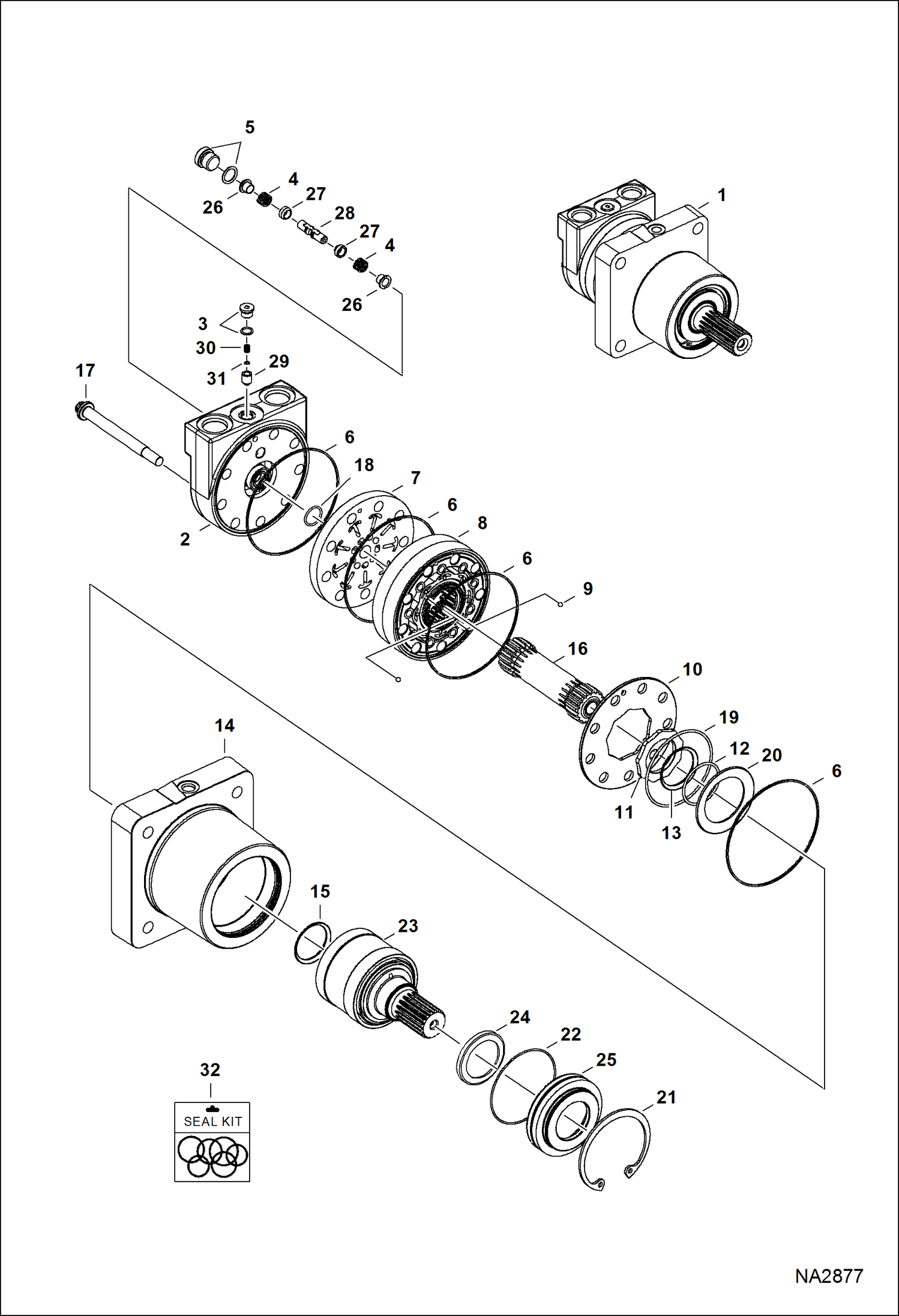

Запчасти Bobcat TILLER TILLER (Hydraulic Motor) (62 055201403 - 01876) (76 055101593 - 02446) Loader

1

MOTOR, DRIVE HYD See Illustration TILLER/ NA6683 - NLA - Ref. 2-26 - Model 180-0095-004 - Order 7222337 motor - Was 7197584 - A

2

6689697

HOUSING, MOTOR

3

6668079

PLUG, MOTOR

4

6513533

SPRING Was 6692528 - A

5

6668089

PLUG, MOTOR

6

6678000

SEAL

7

6689698

PLATE

8

7020789

GEROLER

9

6651542

BALL, STEEL

10

6689700

PLATE outer

11

6678004

PLATE inner

12

6682860

O-RING

13

6678006

RING, BACK-UP

14

6693603

HOUSING

15

6691564

SEAL

16

7020790

SHAFT, DRIVE

17

6689742

BOLT

18

6669452

O-RING

19

6682897

SEAL

20

6685069

RING,BACK-UP

21

6691337

RING, RETAINING

22

6679818

O-RING

23

7020975

SHAFT, DRIVE HYD

24

6691339

SEAL

25

6693610

RETAINER

26

6685065

SHUTTLE

27

6692530

POPPET

28

6685066

PISTON

29

6685064

POPPET

30

6688521

SPRING

31

6668080

SHIM

32

7021021

KIT, SEAL Ref. 6, 12, 13, 15, 18, 19, 22
